Startup; Operating Conditions For Startup; Mounting The Load; Definition: Moving Mass - Aventics MSN Series Betriebsanleitung

The "Pico" cylinder switches must be
mounted in the sensor grooves as
illustrated to detect the end position of the
slide.
Type MSN-6
Safe distance *
X1
Safe distance *
X2
* Being prepared
6

Startup

00117691
1
1
2
1
3
AVENTICS | MSN | R499050100–BDL–001–AB
6.1
MSN-10 MSN-16
* *
* *
6.2
See notes in chapter 3 Installation and
Mounting.
6.3
Moving mass = load + slide mass + additional
masses (e.g. mounting elements for the load).
6.4
1. First completely close them
2. Then open them by one rotation
The slide moves to an end position.
6.5
1. In a trial run check whether the following
00117692
In this case, the alterations may be made only
when the slide is at a standstill.
2. Slowly open the check-choke valves until
00117693
Operating conditions for
startup
1

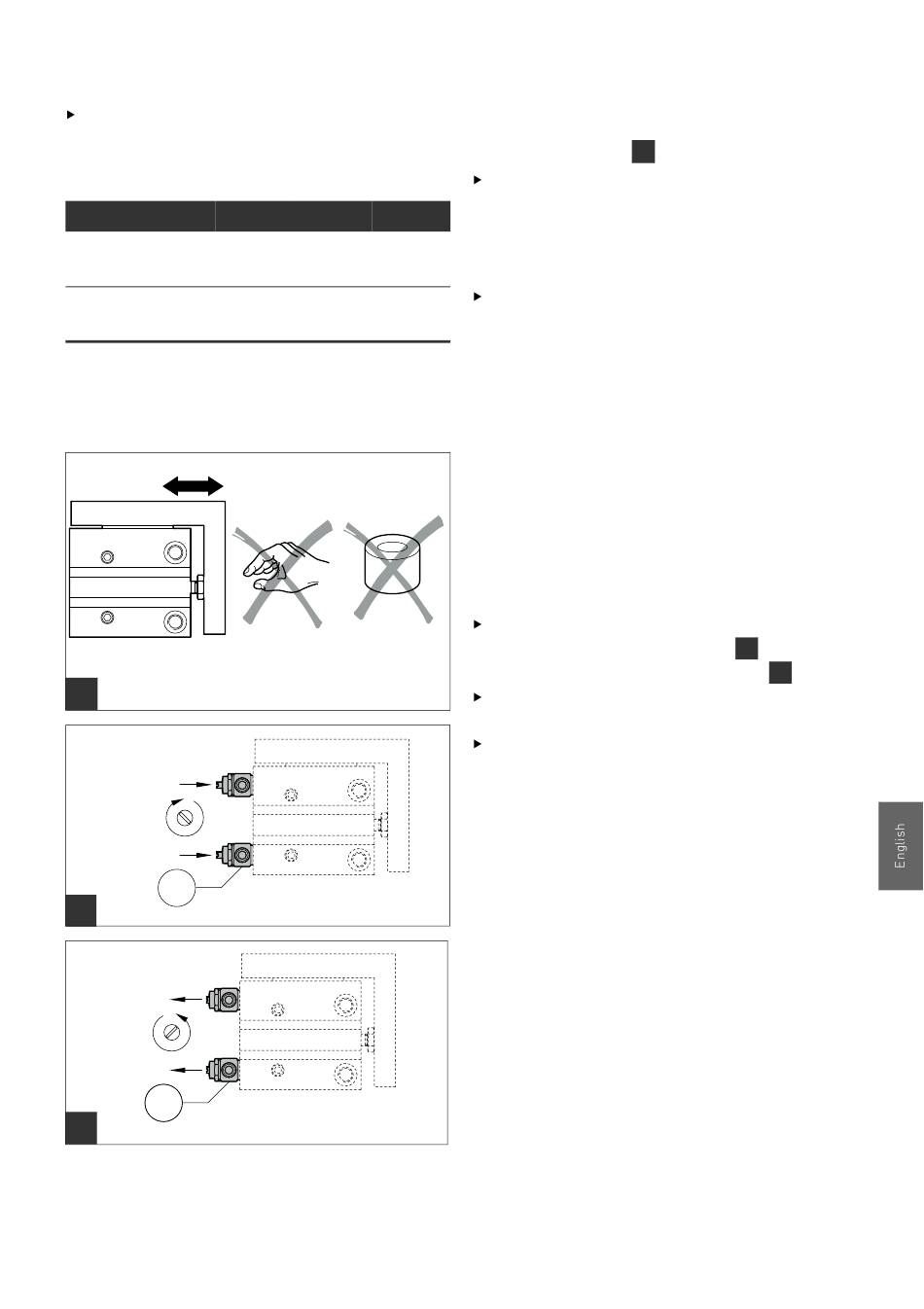

Ensure in the movement range of the mini-
slides that
– nobody reaches into the path of the slide
(e.g. guard as protective measure)
– there are no foreign items.
It should nly be possible to access the mini-
slides by hand when the moving mass has
come to a complete standstill.

Mounting the load

Definition: moving mass

Ventilation

Turn both connected check-choke valves
Ensure that the operating conditions are
within the permissible ranges.
Ventilate the drive slowly

Trial run

points have to be altered:
– the speed and acceleration of the
moving mass
– the end position
– the mass of the load
– the position of the cylinder switches
the desired slide speed has been set.
In doing so, do not exceed the max.
permissible speed (see data in online/print
catalog).
The slide should reach the end position, but
not hit it hard.
15
2
3 .
on one side.
