How to Connect the Outputs of the Controller

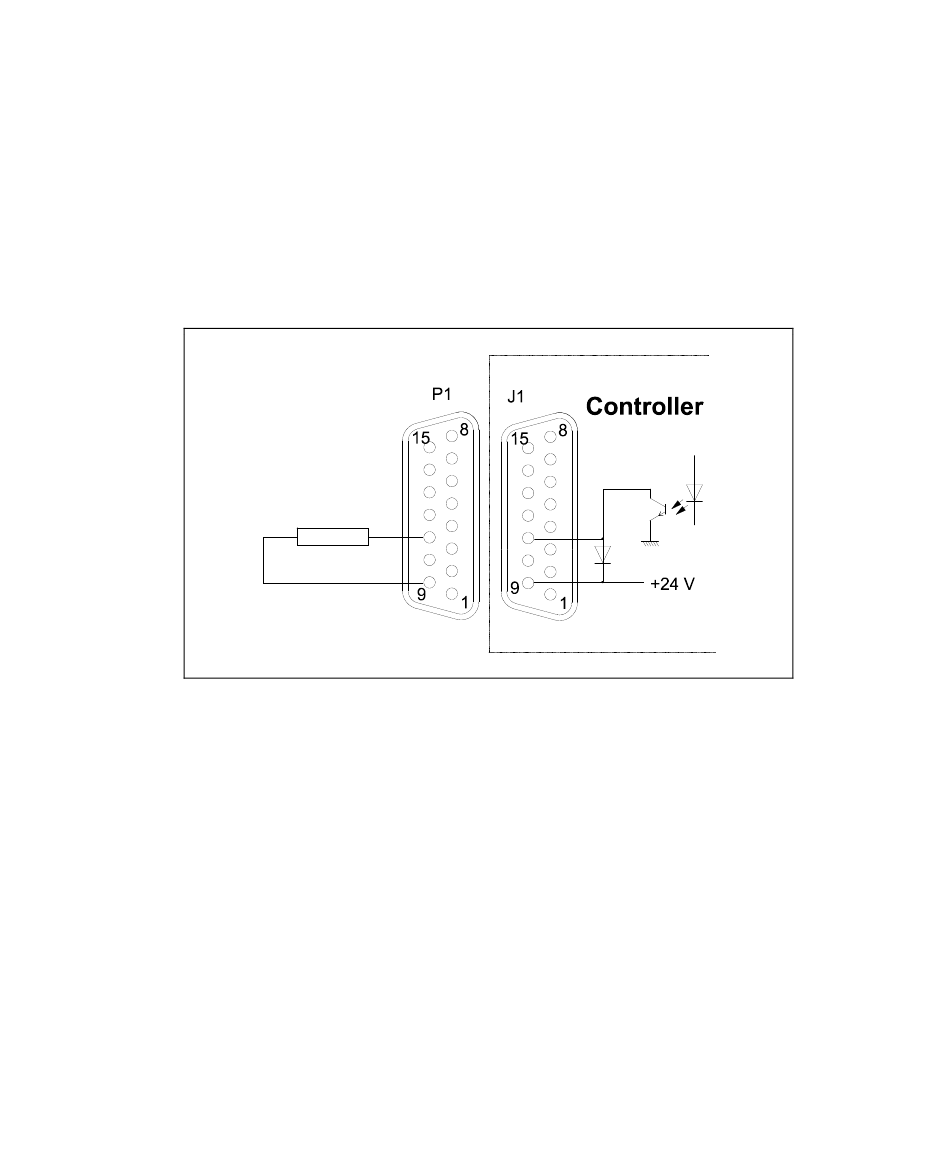

The following figure shows a typical logic output connection (relay coil) but
any other device may be connected e.g. a LED, a computer, etc., and the
related simplified circuit of the controller.
The following figure refers to the programmable set point signal on pins
11 and 9.
Figure 16
The following figure shows a typical output connection to a relay coil.
Turbo-V 903 Pumping System User Manual / 87-901-016-01

How to Connect the Outputs of the Controller

Typical output connection
Technical Information
(A)
18
279/306
