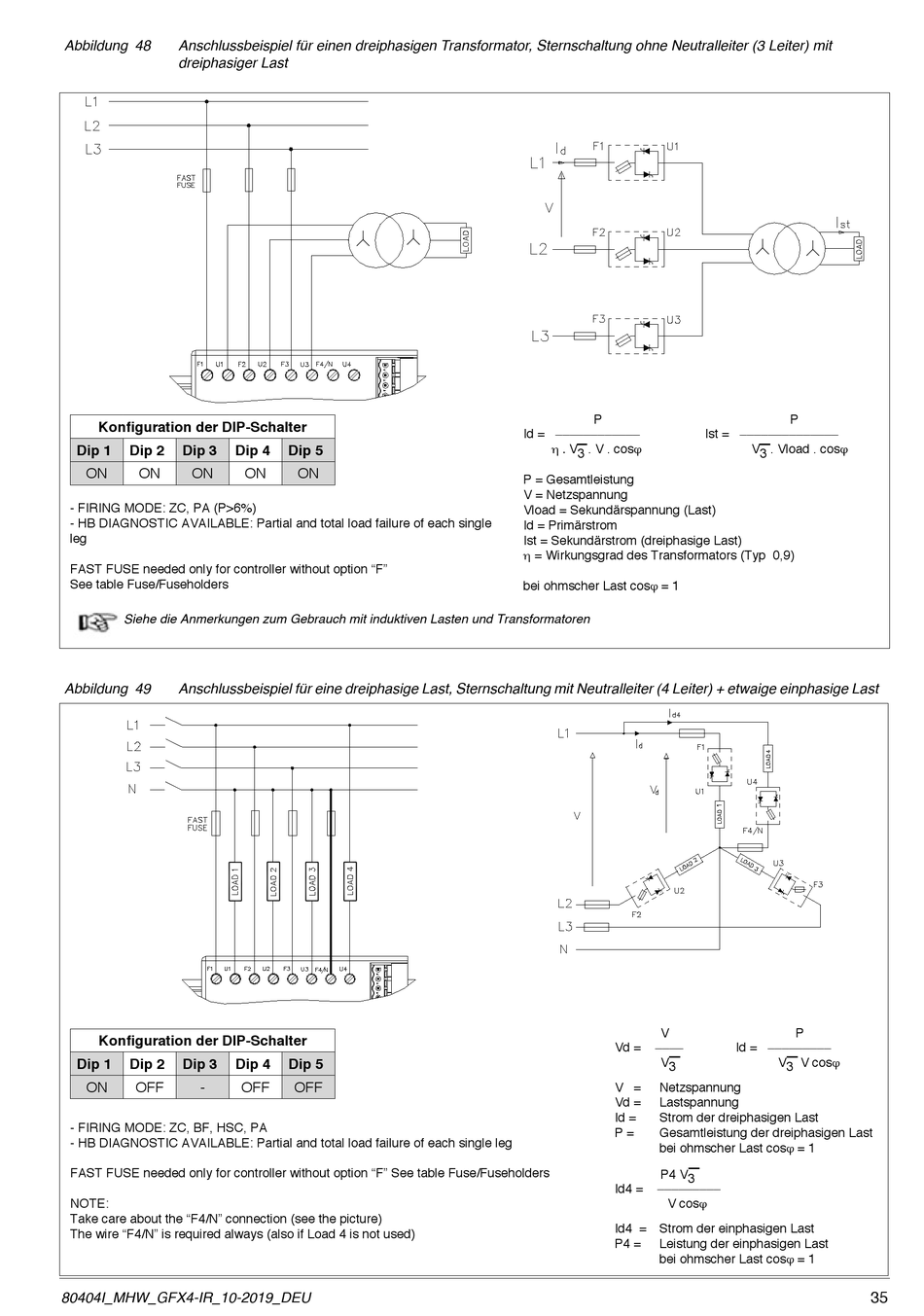

Abbildung 48
Anschlussbeispiel für einen dreiphasigen Transformator, Sternschaltung ohne Neutralleiter (3 Leiter) mit
dreiphasiger Last
Konfiguration der DIP-Schalter
Dip 1
Dip 2
Dip 3
ON
ON
ON
- FIRING MODE: ZC, PA (P>6%)
- HB DIAGNOSTIC AVAILABLE: Partial and total load failure of each single
leg
FAST FUSE needed only for controller without option "F"
See table Fuse/Fuseholders
Siehe die Anmerkungen zum Gebrauch mit induktiven Lasten und Transformatoren
Abbildung 49
Anschlussbeispiel für eine dreiphasige Last, Sternschaltung mit Neutralleiter (4 Leiter) + etwaige einphasige Last
Konfiguration der DIP-Schalter
Dip 1
Dip 2
Dip 3
ON
OFF
-
- FIRING MODE: ZC, BF, HSC, PA
- HB DIAGNOSTIC AVAILABLE: Partial and total load failure of each single leg
FAST FUSE needed only for controller without option "F" See table Fuse/Fuseholders
NOTE:
Take care about the "F4/N" connection (see the picture)
The wire "F4/N" is required always (also if Load 4 is not used)
80404I_MHW_GFX4-IR_10-2019_DEU
Dip 4
Dip 5
ON
ON
Dip 4
Dip 5
OFF
OFF
P
Id = ____________
h . V 3 . V . cosj
P = Gesamtleistung
V = Netzspannung
Vload = Sekundärspannung (Last)
Id = Primärstrom
Ist = Sekundärstrom (dreiphasige Last)
h = Wirkungsgrad des Transformators (Typ 0,9)
bei ohmscher Last cosj = 1
V
____
Vd =
V 3
V =
Netzspannung
Vd =
Lastspannung
Id =
Strom der dreiphasigen Last
P =
Gesamtleistung der dreiphasigen Last
bei ohmscher Last cosj = 1
P4 V 3
_________
Id4 =
V cosj
Id4 = Strom der einphasigen Last
P4 =
Leistung der einphasigen Last
bei ohmscher Last cosj = 1
P
Ist = ______________
V 3 . Vload . cosj
P
Id = _________
V 3 V cosj
35
