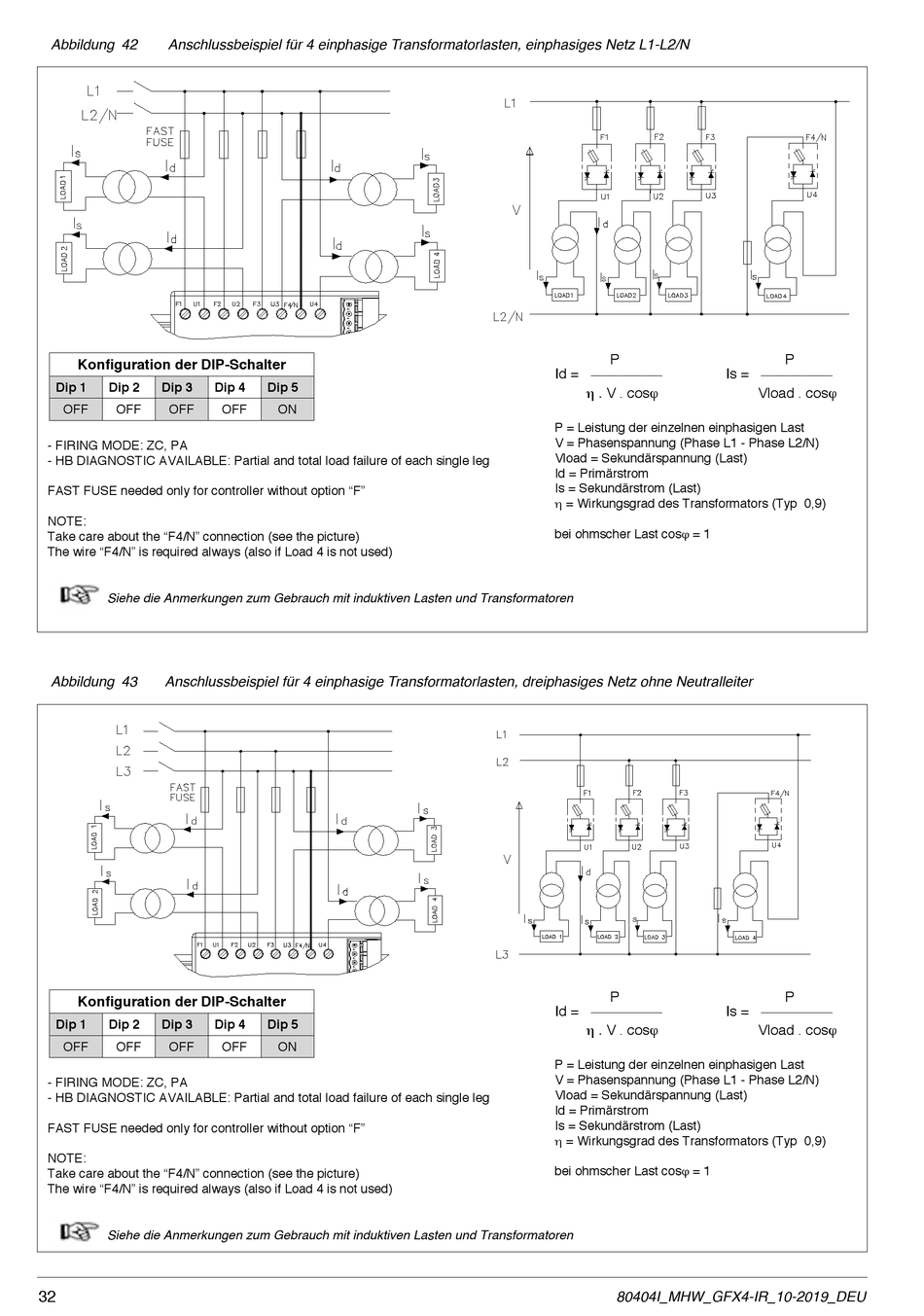

Abbildung 42
Anschlussbeispiel für 4 einphasige Transformatorlasten, einphasiges Netz L1-L2/N
Konfiguration der DIP-Schalter
Dip 1
Dip 2
Dip 3
OFF
OFF
OFF
- FIRING MODE: ZC, PA
- HB DIAGNOSTIC AVAILABLE: Partial and total load failure of each single leg
FAST FUSE needed only for controller without option "F"
NOTE:
Take care about the "F4/N" connection (see the picture)
The wire "F4/N" is required always (also if Load 4 is not used)
Siehe die Anmerkungen zum Gebrauch mit induktiven Lasten und Transformatoren
Abbildung 43
Anschlussbeispiel für 4 einphasige Transformatorlasten, dreiphasiges Netz ohne Neutralleiter
Konfiguration der DIP-Schalter
Dip 1
Dip 2
Dip 3
OFF
OFF
OFF
- FIRING MODE: ZC, PA
- HB DIAGNOSTIC AVAILABLE: Partial and total load failure of each single leg
FAST FUSE needed only for controller without option "F"
NOTE:
Take care about the "F4/N" connection (see the picture)
The wire "F4/N" is required always (also if Load 4 is not used)
Siehe die Anmerkungen zum Gebrauch mit induktiven Lasten und Transformatoren
32
Dip 4
Dip 5
OFF
ON
Dip 4
Dip 5
OFF
ON
P
Id = _________
Is = _________
h . V . cosj
P = Leistung der einzelnen einphasigen Last
V = Phasenspannung (Phase L1 - Phase L2/N)
Vload = Sekundärspannung (Last)
Id = Primärstrom
Is = Sekundärstrom (Last)
h = Wirkungsgrad des Transformators (Typ 0,9)
bei ohmscher Last cosj = 1
P
Id = _________
Is = _________
h . V . cosj
P = Leistung der einzelnen einphasigen Last
V = Phasenspannung (Phase L1 - Phase L2/N)
Vload = Sekundärspannung (Last)
Id = Primärstrom
Is = Sekundärstrom (Last)
h = Wirkungsgrad des Transformators (Typ 0,9)
bei ohmscher Last cosj = 1
80404I_MHW_GFX4-IR_10-2019_DEU
P
Vload . cosj
P
Vload . cosj
