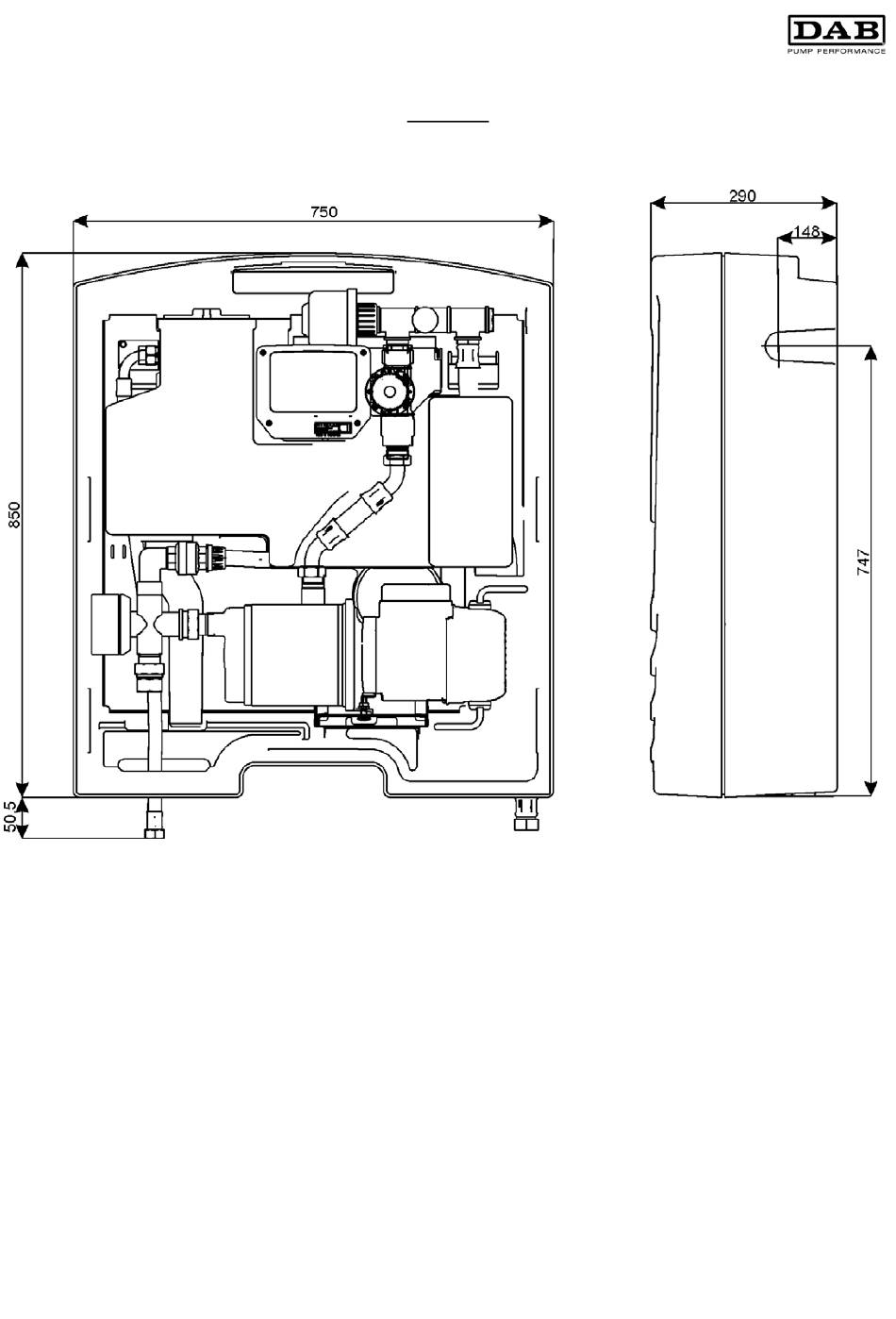

3.1 Dimensions
4. Installation
ATTENTION
If the system is installed indoors, it is indispensable for the premises to be equipped with a drainage pit
of suitable dimensions to drain any breaks in the system. The dimensions of the drain must be suited
to the quantity of water supplied by the mains.

4.1 Wall assembly

•
Before installation, make sure that the sewerage system is at least 1-2 meters below the point in
which the AQUAPROF is to be installed (the road level is normally taken as the sewerage level).
•
The location must have a discharge connected to the sewerage system.
•
The location must be dry and protected from the rain.
•
Flat wall, in a horizontal position.
•
Minimum distance from the ceiling 50 cm.
Figure 02
