c o m p a t i b i l i t y
This crankset features a 30 mm bottom bracket spindle and bearing cups that are not compatible
with other bottom bracket systems.
Compatible with 9 and 10 speed systems.
t o o l s
Installation
· Safety Glasses
· Zipp Bearing Cup Tool #6462540
· 5, 6, 10 mm hex
· T8 TORX wrench

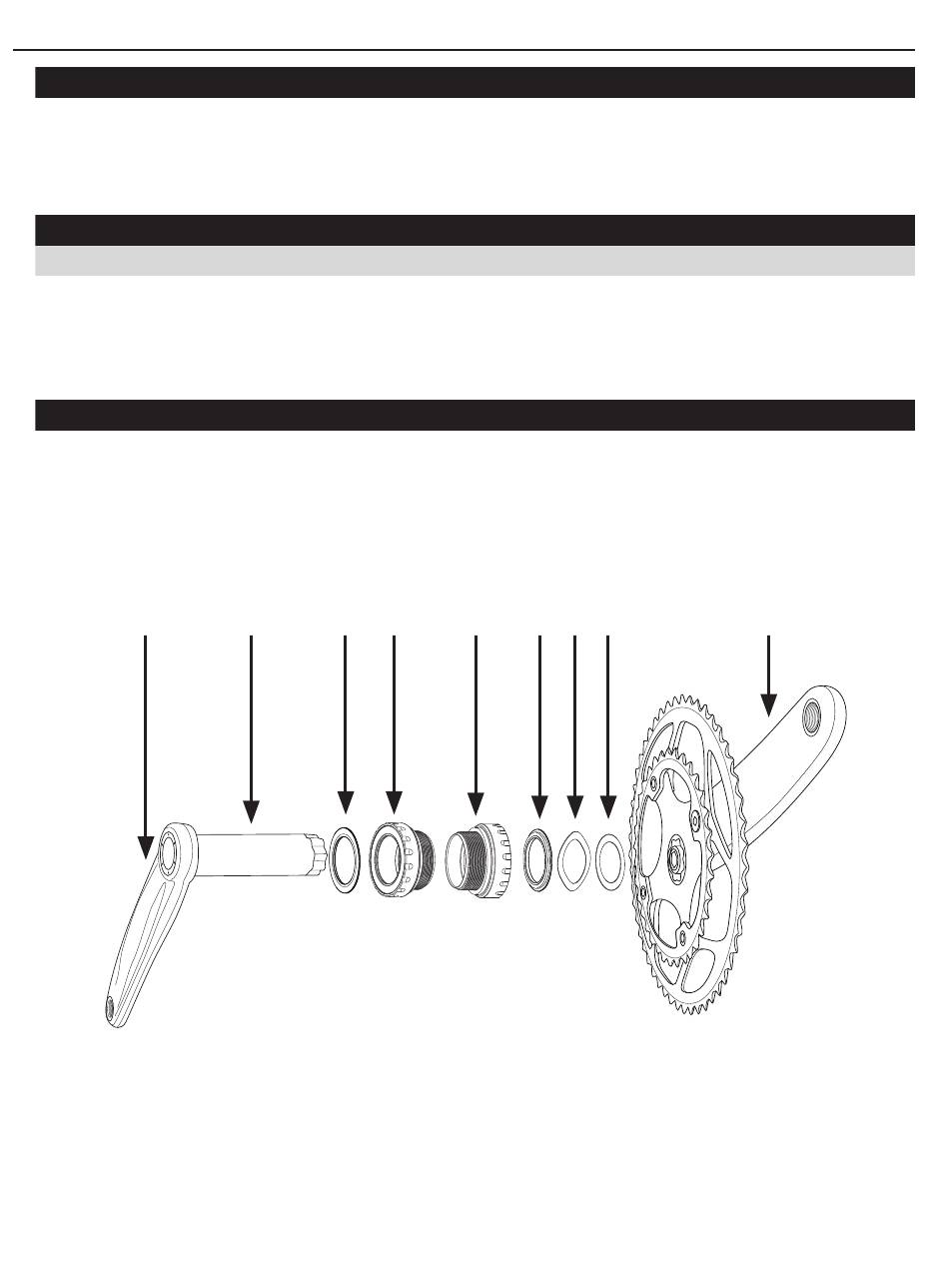

a n a t o m y
1.
Non-Drive Side Crankarm
2.
Bottom Bracket Spindle
3.
Aluminum Spacer
4.
Non-Drive Side Bottom Bracket Cup
5.
Drive Side Bottom Bracket Cup
1
2
2
3
4
· Rubber Mallet
· Grease
· Torque Wrench
6.
Aluminum Spacer
7.
Wave Spring
8.
Hardened Steel Washer
9.
Drive Side Crankarm
5
6
7
8
Zipp Cranksets User Manual
