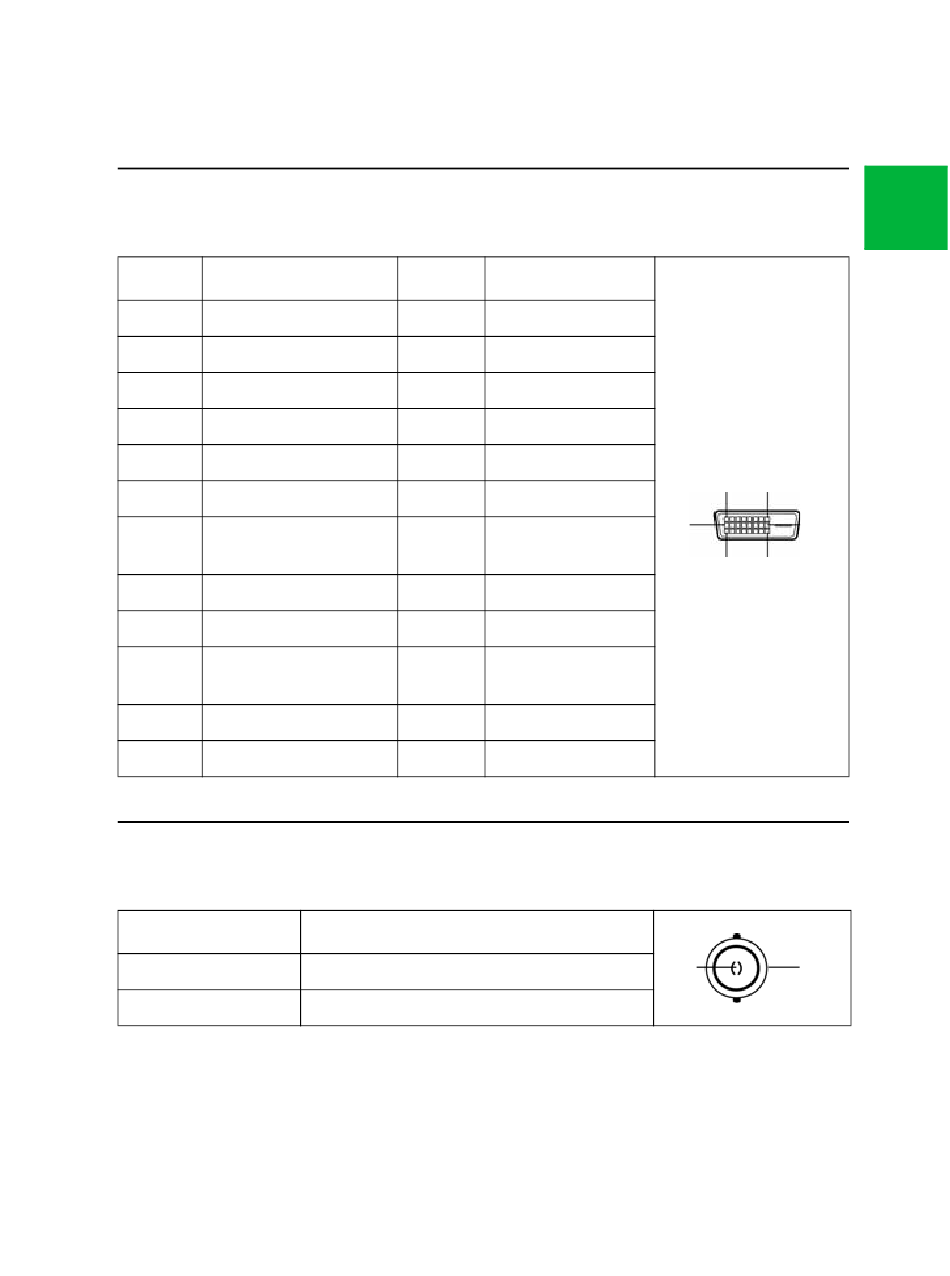

1.13 DVI In, Out (24 DVI-D)

Pin No. Assignment
1 T.M.D.S. Data 2-
2 T.M.D.S. Data 2+
3 T.M.D.S. Data 2 Shield
4 No Connection
5 No Connection
6 DDC Clock
7 DDC Data
8 No Connection
9 T.M.D.S. Data 1-
10 T.M.D.S. Data 1+
11 T.M.D.S. Data 1 Shield
12 No Connection

1.14 C-Video (BNC)

Pin No.
1
2
Pin No. Assignment
13 No Connection
14 +5V Power
15 Ground
16 Hot Plug Detect
17 T.M.D.S. Data 0-
18 T.M.D.S. Data 0+
19 T.M.D.S. Data 0
Shield
20 No Connection
21 No Connection
22 T.M.D.S. Clock
Shield
23 T.M.D.S. Clock+
24 T.M.D.S. Clock-
Assignment
Composite
Ground
E-31
1 8
9 16
17 24
1 2
E
