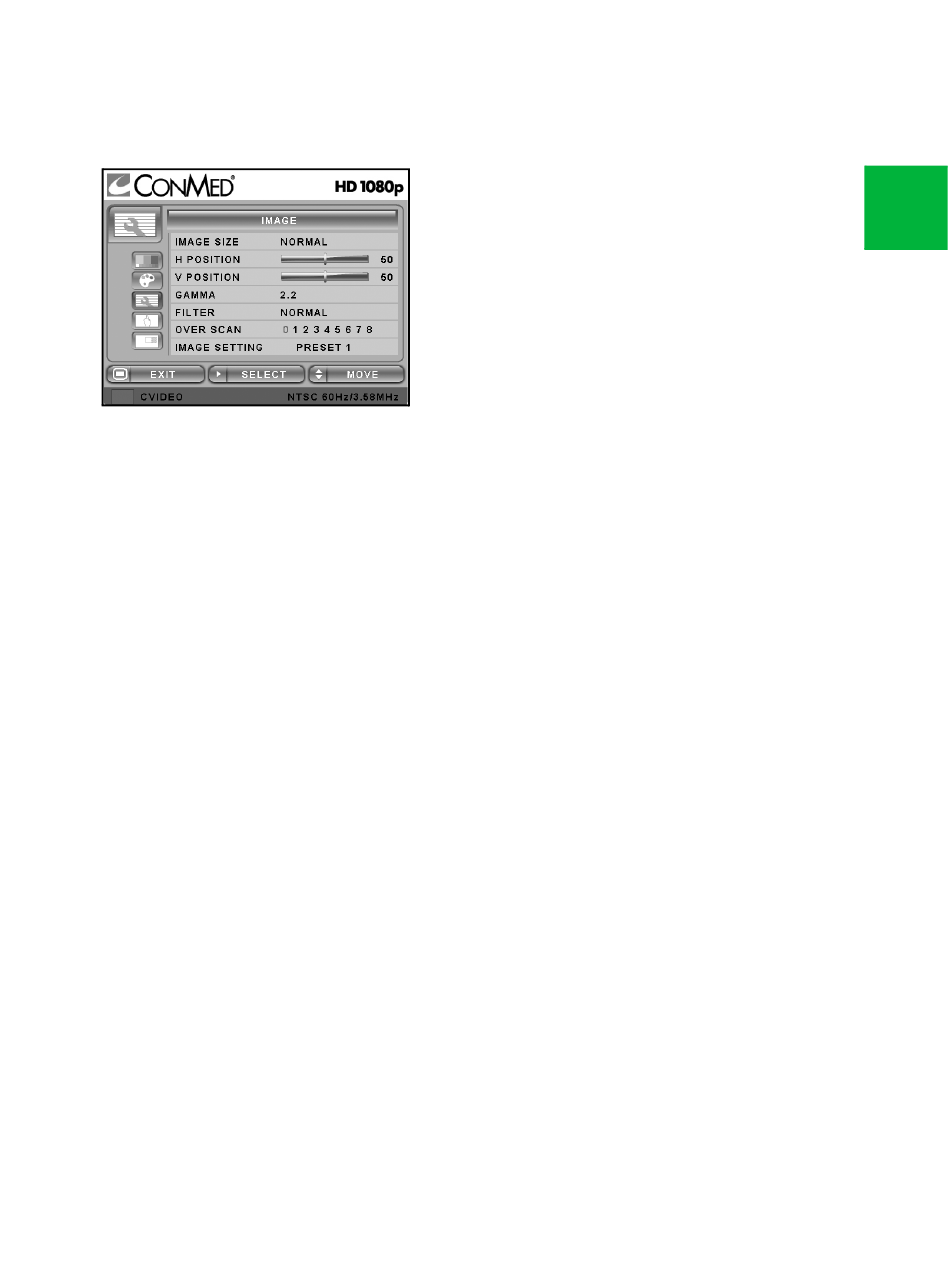

Image Menu
❶
IMAGE SIZE
- Change the image size
(Scaling mode) (Full; Fill Aspect; 1:1; Normal;
Anamorphic).
❷
H POSITION
- Adjust the horizontal (left or right)
position of the displayed source image
(Range: 0~100).
❸
V POSITION
- Adjust the vertical (up or down)
position of the displayed source image
(Range: 0~100).
❹
GAMMA
- Adjust GAMMA value (VIDEO,
BYPASS, 1.8, 2.0, 2.2, 2.4, 2.6, PACS).
➎
FILTER
- Set the sharpness of the image (Softest,
Soft, Normal, Sharp, Sharpest).
➏
OVER SCAN
- Adjust the displayed size ( 0~8)
❼
IMAGE SETTING
(PRESET 1, PRESET 2, USER 1, USER 2, USER 3).
❽
ZOOM / PAN - Enlarge the image.
➒
FREEZE FRAME - Freezes the image.
E-19
- Change the image setting
