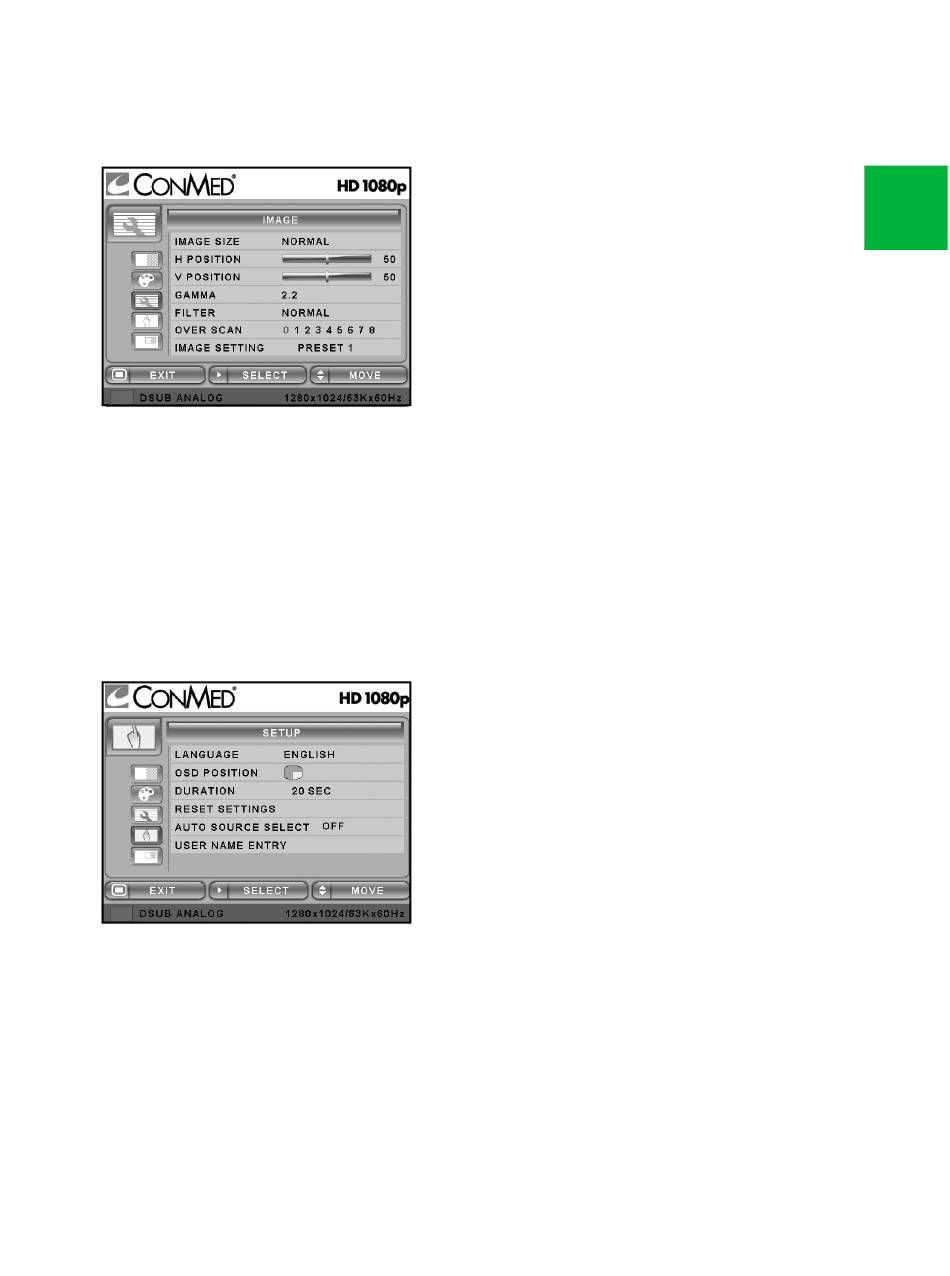

Image Menu
❶
IMAGE SIZE
- Change the image size (Scaling
mode) (Full; Fill Aspect; 1:1;
❷
H POSITION
- Adjust the horizontal (left or right)
position of the displayed source image
(Range: 0~100).
❸
V POSITION
- Adjust the vertical (up or down)
position of the displayed source image
(Range: 0~100).
❹
GAMMA
- Adjust GAMMA value (VIDEO,
BYPASS, 1.8, 2.0, 2.2, 2.4, 2.6, PACS).
➎
FILTER
- Set the sharpness of the image (Softest,
Soft, Normal, Sharp, Sharpest).
➏
OVER SCAN
- Adjust the displayed size ( 0~8)
❼

IMAGE SETTING

five user defined image presets.
❽
ZOOM / PAN - Enlarge the image.
➒
FREEZE FRAME - Freezes the image.
Setup Menu
❶
LANGUAGE
- Change the OSD language
(8 languages - Korean, English, French, Spanish,
German, Chinese, Japanese, Italian).
❷
OSD POSITION
- Change the OSD position.
❸
DURATION
- Adjust time until the OSD Menu
will disappear after adjusting the duration
(5, 10, 20, 30, 60, 90, 120, 180, 240 seconds).
❹
RESET SETTINGS
to factory out-going status.
➎
AUTO SOURCE SELECT
auto source select. (ON: Searches through all
possible input sources until an active video source
is found. OFF: Video input is manually selected.)
➏
USER NAME ENTRY
Preset to the Users Name, etc.
E-11
Normal).
- Allow selection of one of
- Changes all the OSD values
- Disable or enable
- Change the name of a
