Ypbpr Input Source - ConMed Linvatec VP4726 Bedienungsanleitung

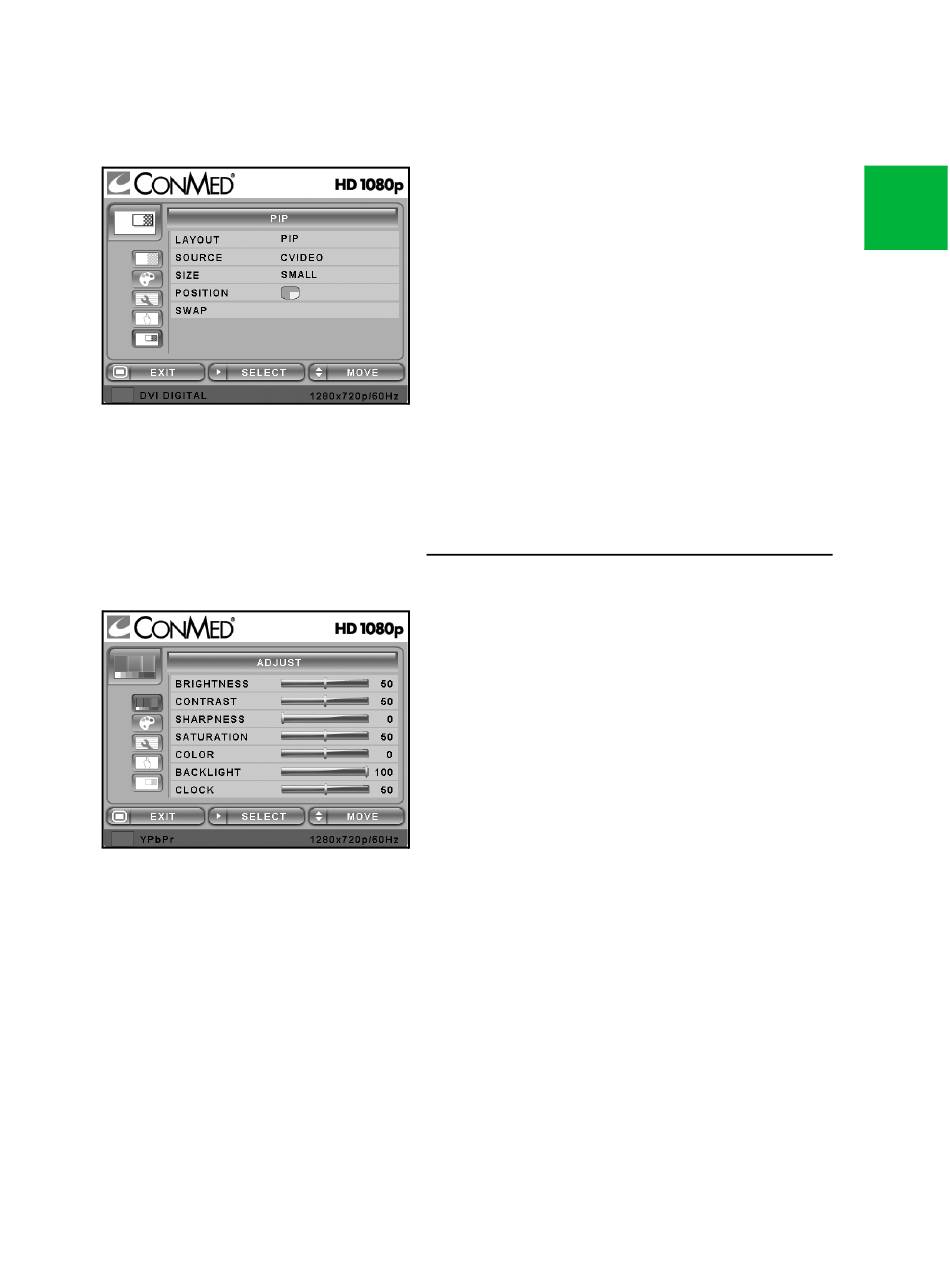

PIP Menu
❶
LAYOUT
- Changes the OSD layout (Single, PIP,
PBP1, PBP2).
For each LAYOUT selection, the following Sub-menus
are available:
❷
SOURCE
- Changes the secondary source.
❸
SIZE
- Changes the PIP size
❹
POSITION
- Changes the PIP location.
➎
SWAP
- Swaps the position and size of the Primary
and Secondary image.
1.9.3

YPbPr Input Source

Adjust Menu
❶
BRIGHTNESS
- Increase or decrease the
brightness (Range: 0~100).
❷
CONTRAST
- Increase or decrease the contrast
(Range: 0~100).
❸
SHARPNESS
- Adjust the sharpness of the video
image (Range: 0~100).
❹
SATURATION
- Changes the tone of the color
(Range: 0~100).
➎
COLOR
- Changes the richness of the color
(Range: Green 0~50, Red 0~50).
➏
BACK LIGHT
- Increase or decrease the back
light dimming level (Range: 0~100).
❼
CLOCK - Increase or decrease the sampling
frequency (Range: 0~100).
❽
PHASE
- Increase or decrease the phase level
(Range: 0~100).
E-15
(Small, Large).
