1.9.4

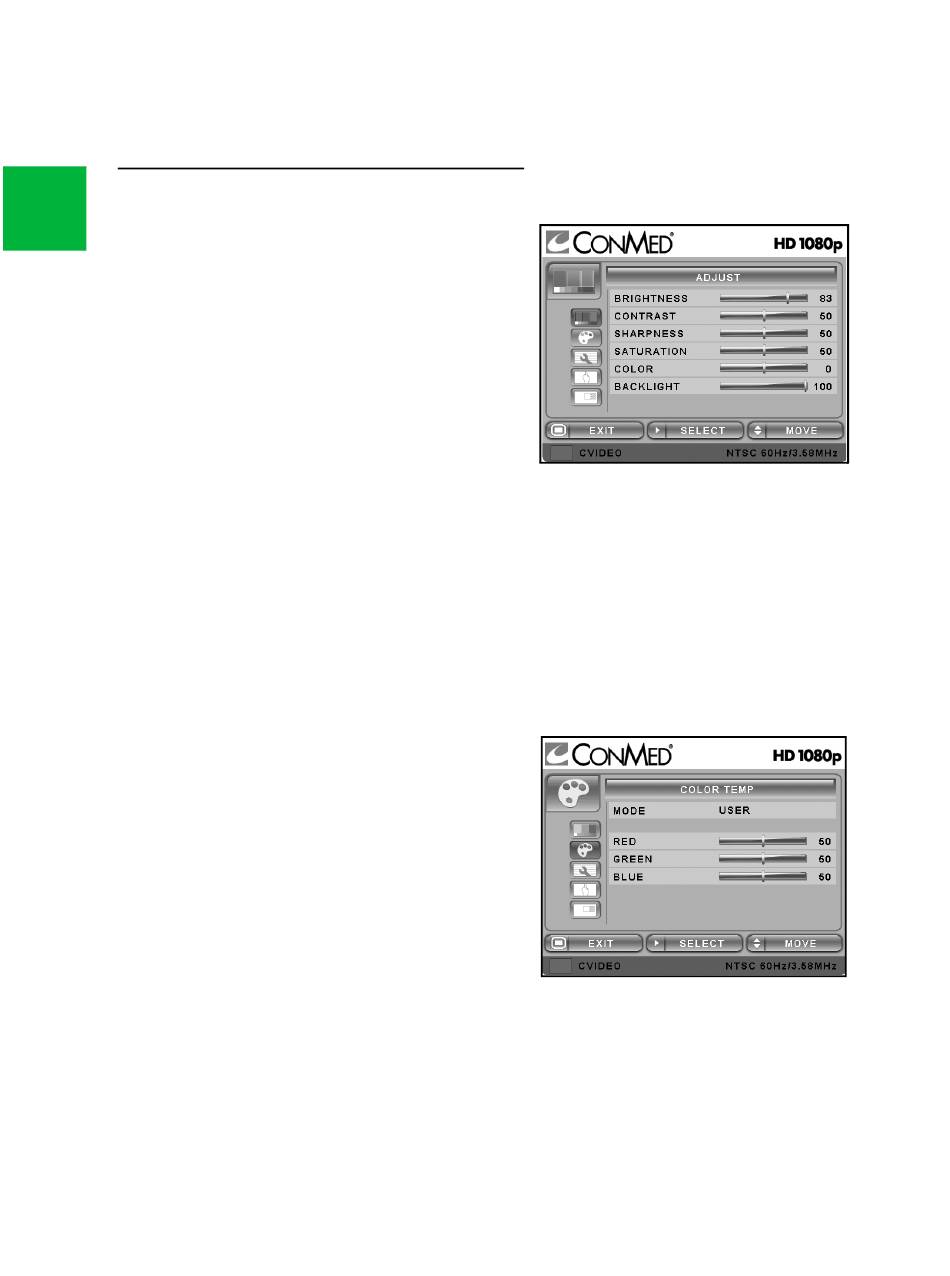

SVIDEO / CVIDEO Input Source

E
Adjust Menu
❶
BRIGHTNESS
brightness (Range: 0~100).
❷
CONTRAST
(Range: 0~100).
❸
SHARPNESS
image (Range: 0~100).
❹
SATURATION
(Range: 0~100).
➎
COLOR
(Range: Green 0~50, Red 0~50).
➏
BACK LIGHT
light dimming level (Range: 0~100).
Color Temp Menu
❶
MODE
- Change the color temperature mode:
6500K, 5600K, USER. When USER is selected, a
sub-menu displays allowing the user to adjust the
RED, GREEN or BLUE balance.
❷
RED
- Red balance- Only works with USER mode
(Range: 0~100).
❸
GREEN
mode (Range: 0~100).
❹
BLUE
- Blue balance- Only works with USER
mode (Range: 0~100).
- Increase or decrease the
- Increase or decrease the contrast
- Adjust the sharpness of the video
- Changes the tone of the color
- Changes the richness of the color
- Increase or decrease the back
- Green balance- Only works with USER
E-18
