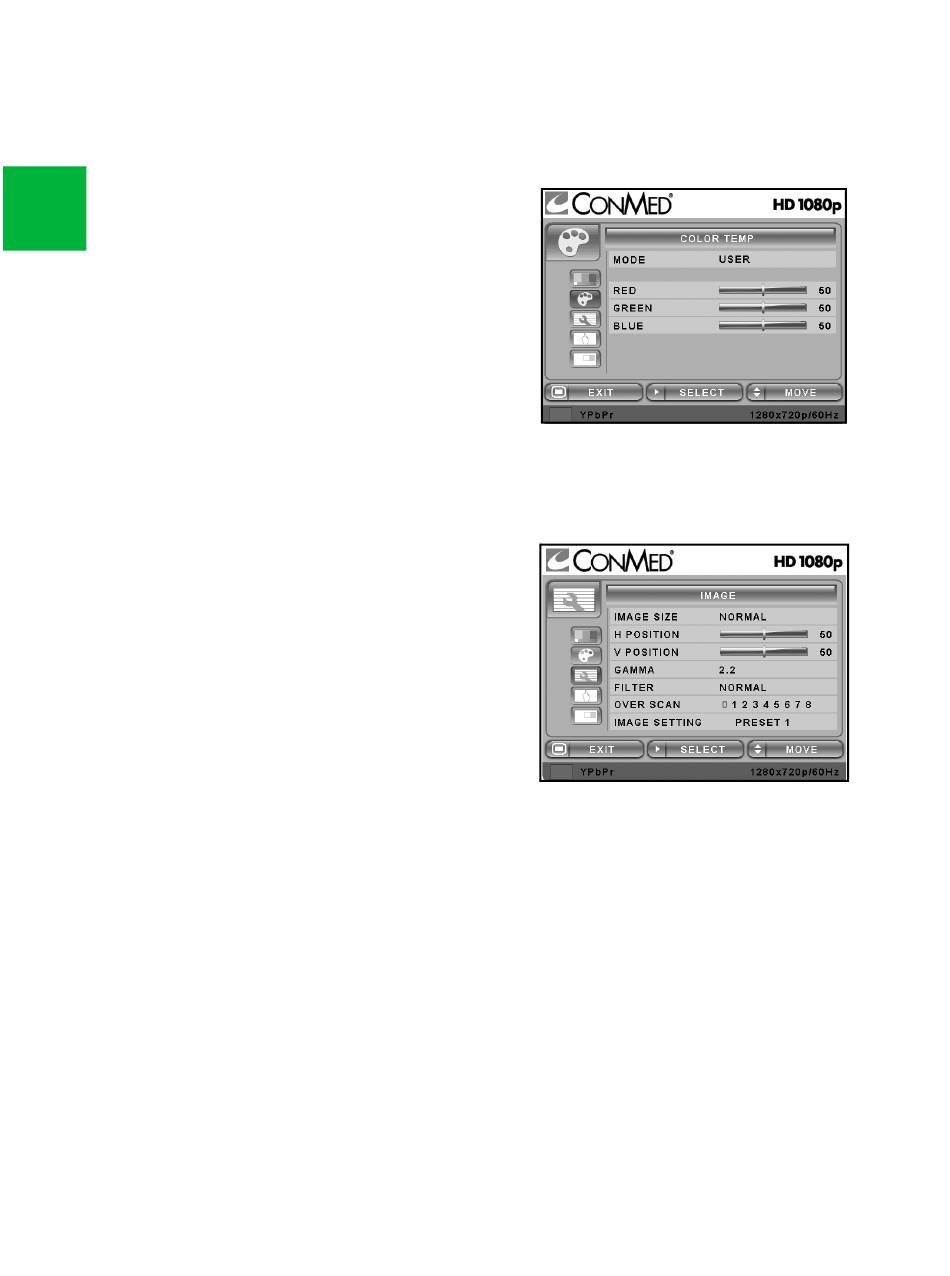

Color Temp Menu
E
❶
MODE
- Change the color temperature mode:
6500K, 5600K, USER. When USER is selected, a
sub-menu displays allowing the user to adjust the
RED, GREEN or BLUE balance.
❷
RED
- Red balance- Only works with USER mode
(Range: 0~100).
❸
GREEN
mode (Range: 0~100).
❹
BLUE
- Blue balance- Only works with USER
mode (Range: 0~100).
Image Menu
❶
IMAGE SIZE
(Scaling mode) (Full; Fill Aspect; 1:1; Normal;
Anamorphic).
❷
H POSITION
position of the displayed source image
(Range: 0~100).
❸
V POSITION
position of the displayed source image
(Range: 0~100).
❹
GAMMA
BYPASS, 1.8, 2.0, 2.2, 2.4, 2.6, PACS).
➎
FILTER
Soft, Normal, Sharp, Sharpest).
➏
OVER SCAN
❼
IMAGE SETTING
(PRESET 1, PRESET 2, USER 1, USER 2, USER 3).
❽
ZOOM / PAN - Enlarge the image.
➒
FREEZE FRAME - Freezes the image.
- Green balance- Only works with USER
- Change the image size
- Adjust the horizontal (left or right)
- Adjust the vertical (up or down)
- Adjust GAMMA value (VIDEO,
- Set the sharpness of the image (Softest,
- Adjust the displayed size ( 0~8)
- Change the image setting
E-16
