17 Technical Information

Vibration Isolator Installation

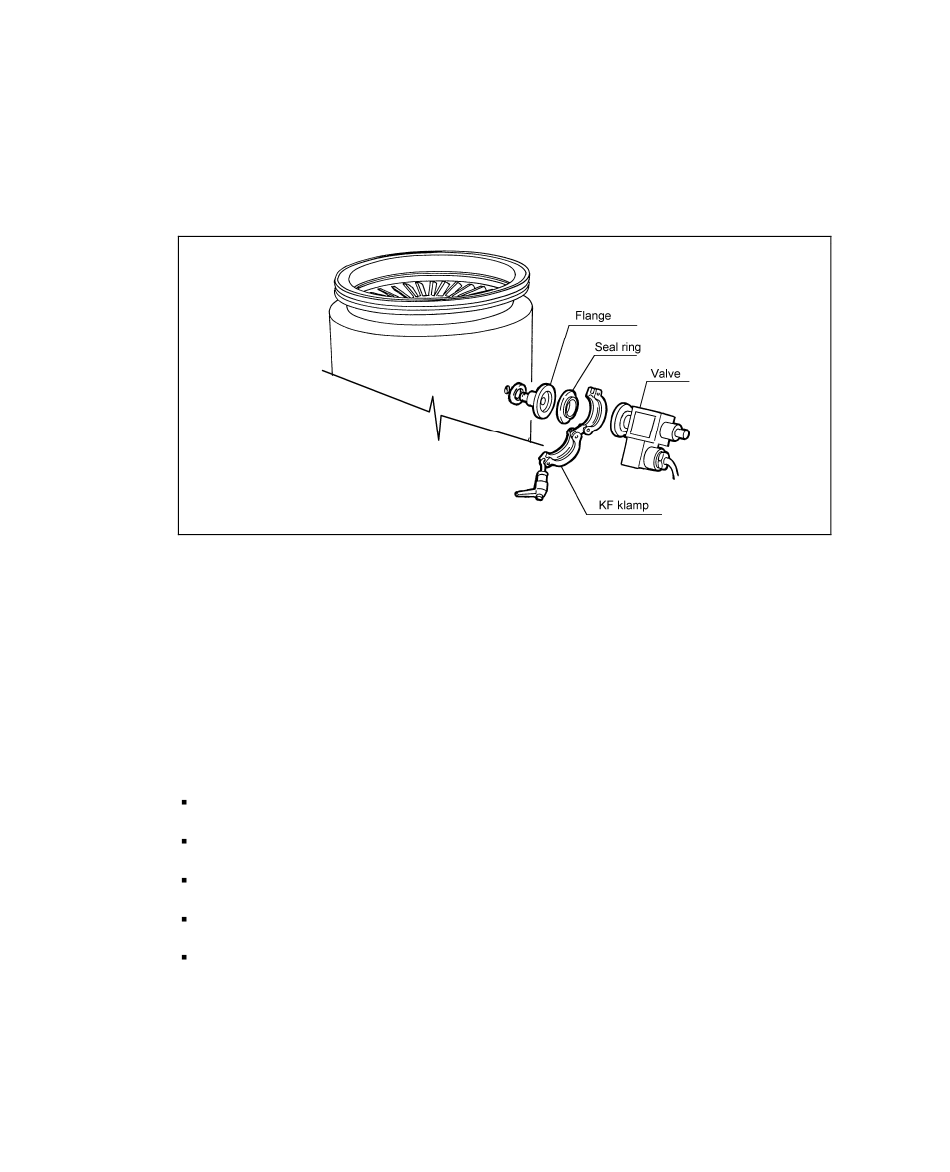

Screw the flange mod. 969-9108 on the pump, taking care of the
o-ring right position.
Assemble the seal ring and lock the vent device in position using the
KF klamp.
Figure 52

Vibration Isolator Installation

Six vibration isolators for ISO and CFF inlet flange version pumps
are available as accessories.
The four model part numbers are the following:
They typically reduce the vibration transmitted from the TV-551/701
Navigator to the system by a factor of 20.
Please refer to the relevant instruction manual.
282/300
model 969-9345 for ISO 160 flange;
model 969-9346 for ISO 200 flange;
model 969-9334 for CFF 6" flange;
model 969-9335 for CFF 8" flange;
model 969-9336 for CFF 10" flange.
TV 551/701 Navigator User Manual / 87-900-934-01 (M)
