TV 551

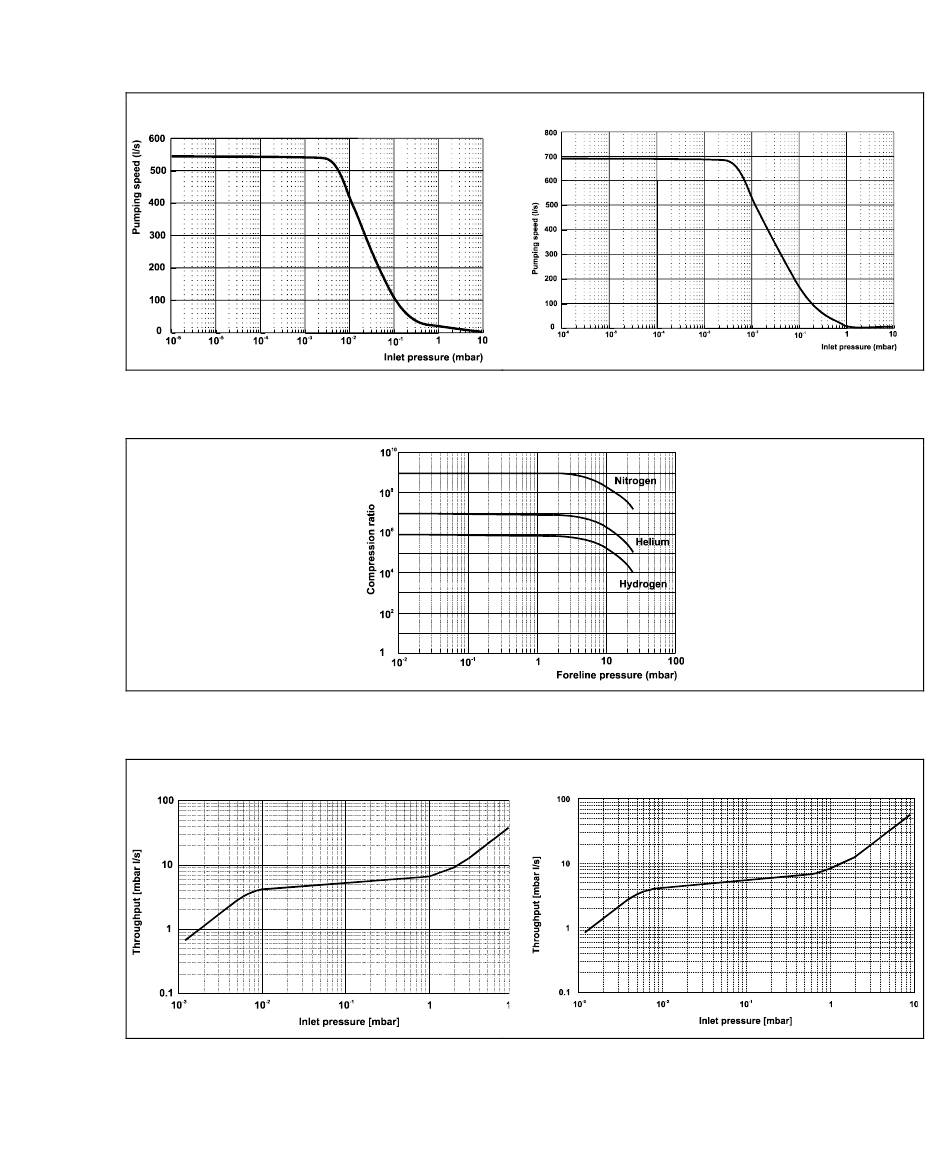

Figure 14 Graph of nitrogen pumping speed vs inlet pressure (with inlet screen)
Figure 15
TV 551
Figure 16
TV 551/701 Navigator User Manual / 87-900-934-01
Graph of compression ratio vs foreline pressure
Graph of nitrogen throughput vs inlet pressure using the
recommended mechanical forevacuum pump
Technical Information
TV 551/701 Navigator outline
TV 701
TV 701
(M)
17
247/300
