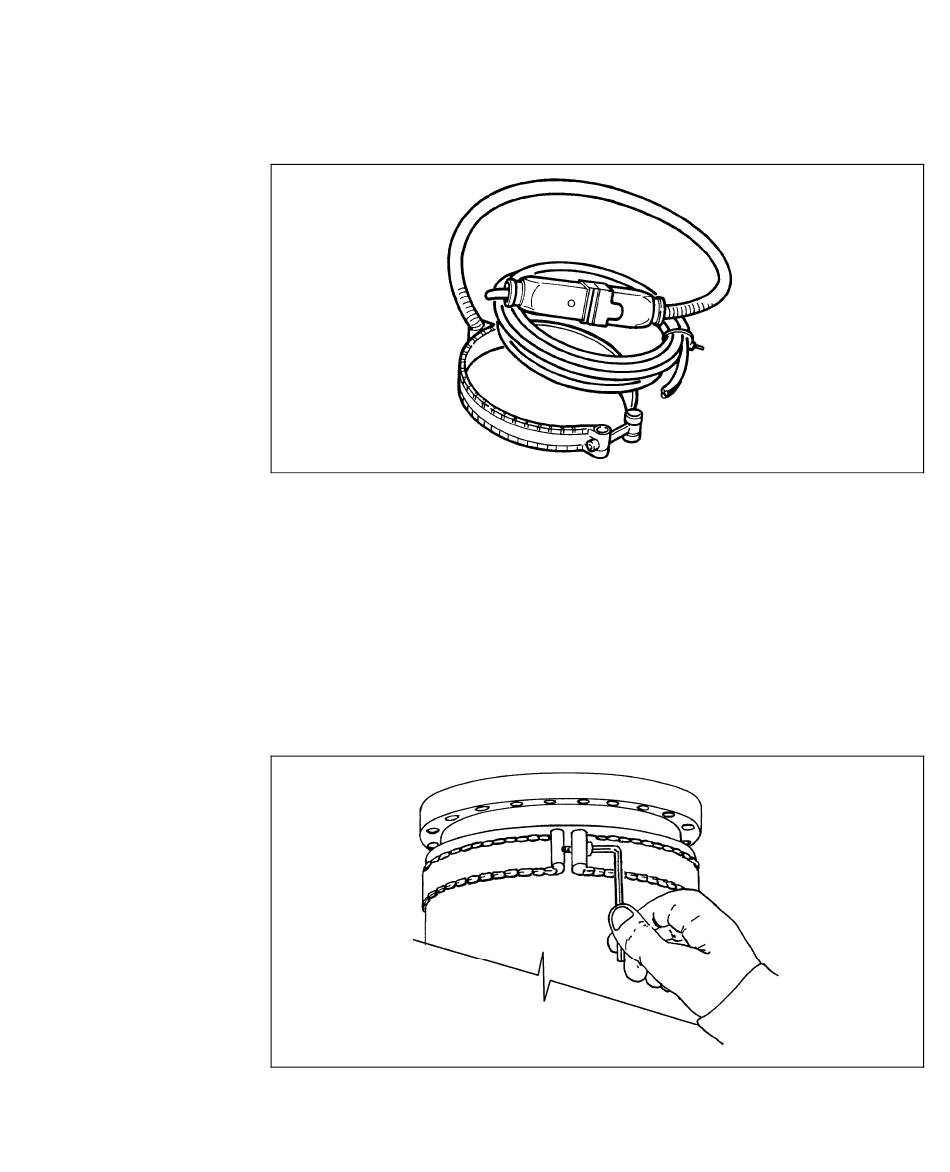

Heater band installation
Figure 37
The heater band model 969-9808 and 969-9807 can be used to heat
the pump casing when a bakeout is needed.
The heater band is applied to the upper part of the pump casing, as
shown in the figure, and heats it to a temperature of about 80 °C.
The heater band must be mounted such that there is perfect thermal
contact with the pump wall to obtain fast and efficient heating.
Figure 38
TV 551/701 Navigator User Manual / 87-900-934-01
Technical Information
Heater band installation
(M)
17
271/300
