Technical Information
Inlet Screen Installation
The inlet screens mod. 969,9302, 969-9304 and 969-9316 prevents the
blades of the pump from being damaged by debris greater than 0.7
mm di-ameter. The inlet screen, however, does reduce the pump-ing
speed by about 10%.

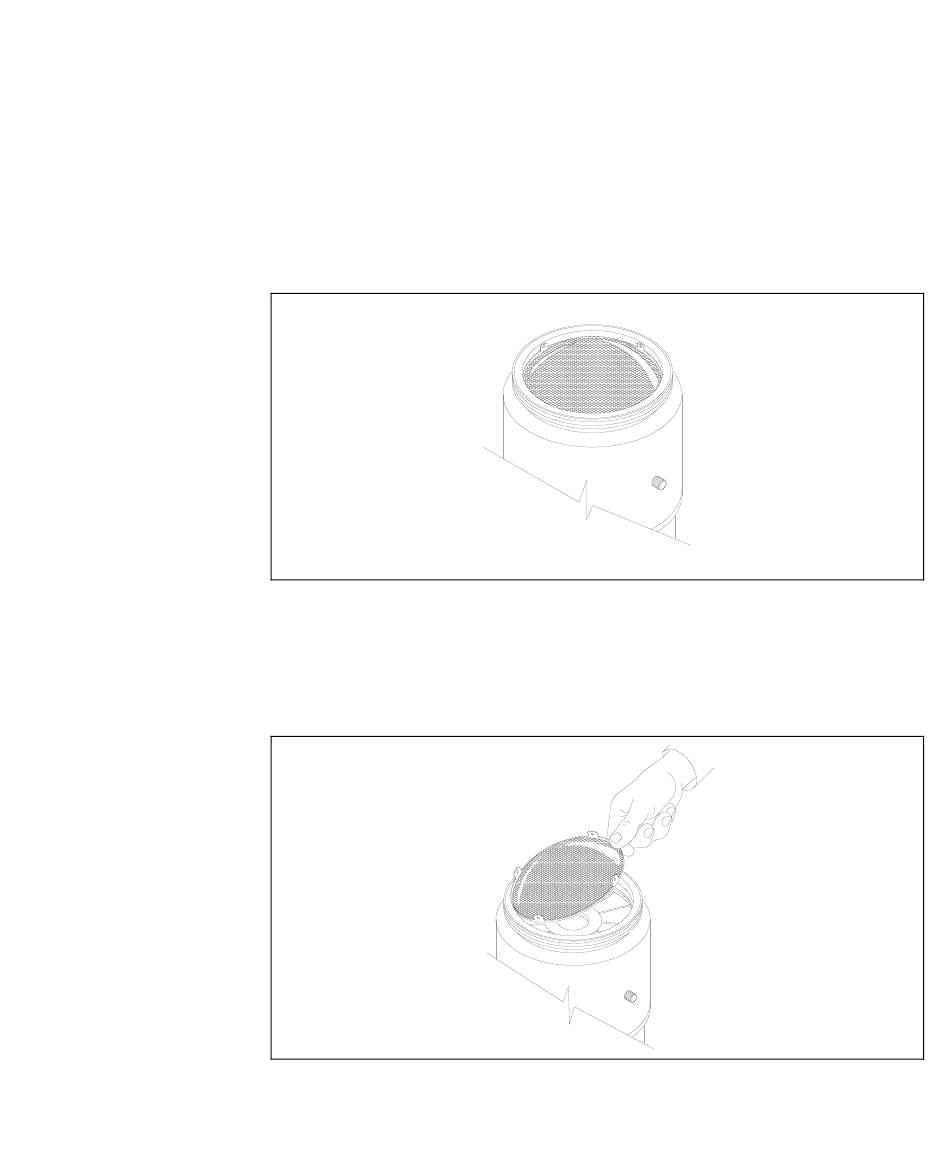

The inlet screen is fitted in the upper part of the pump, as shown in
the figure.
Figure 33
The screen can be mounted on each pump. The screen can be
removed as shown in the following figure.
Figure 34
TV 551/701 Navigator User Manual / 87-900-934-01
(M)
269/300
