17 Technical Information
Air Cooling Kit Installation
3
4
5

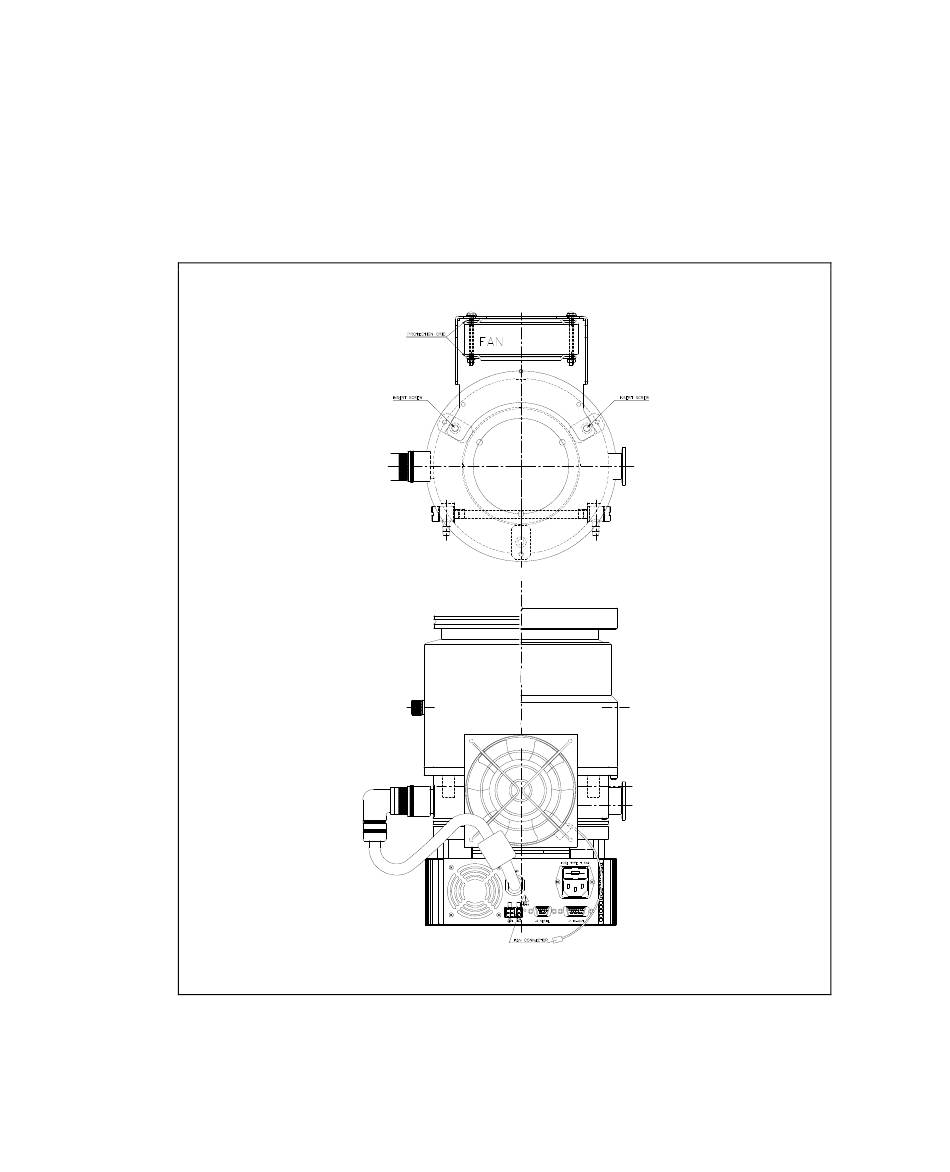

Figure 40
274/300
Fix the fan to the suitable bracket by means of the furnished
screws;
Fix the bracket to the pump body between the pump and the
controller;
Connect the fan supply to the P4 connector of the controller.
TV 551/701 Navigator User Manual / 87-900-934-01 (M)
