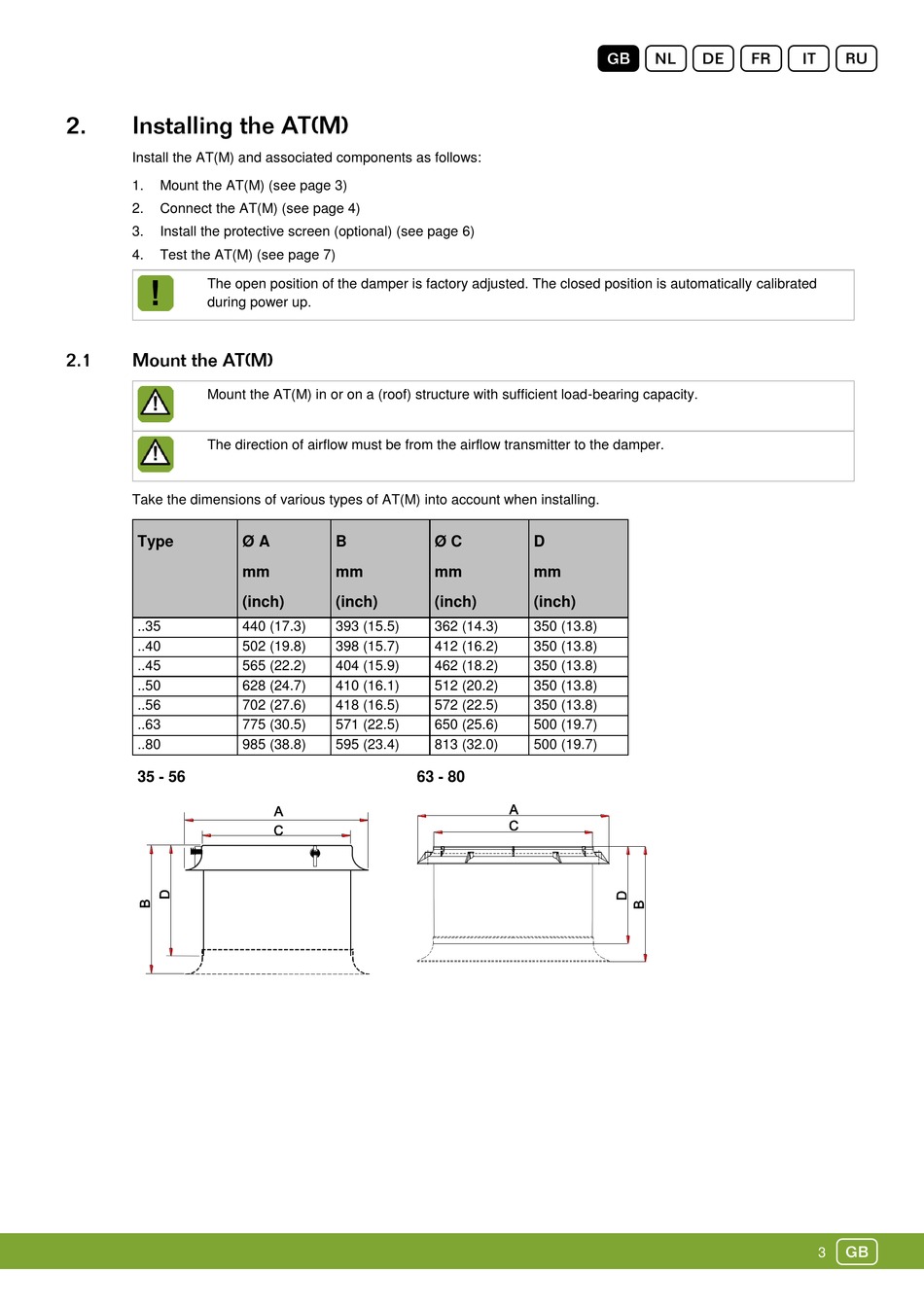

Install the AT(M) and associated components as follows:
1. Mount the AT(M) (see page 3)
2. Connect the AT(M) (see page 4)
3. Install the protective screen (optional) (see page 6)
4. Test the AT(M) (see page 7)
The open position of the damper is factory adjusted. The closed position is automatically calibrated
during power up.
Mount the AT(M) in or on a (roof) structure with sufficient load-bearing capacity.
The direction of airflow must be from the airflow transmitter to the damper.
Take the dimensions of various types of AT(M) into account when installing.
Type Ø A
mm
(inch)
..35 440 (17.3)
..40 502 (19.8)
..45 565 (22.2)
..50 628 (24.7)
..56 702 (27.6)
..63 775 (30.5)
..80 985 (38.8)
35 - 56
B Ø C
mm mm
(inch) (inch)
393 (15.5) 362 (14.3)
398 (15.7) 412 (16.2)
404 (15.9) 462 (18.2)
410 (16.1) 512 (20.2)
418 (16.5) 572 (22.5)
571 (22.5) 650 (25.6)
595 (23.4) 813 (32.0)
63 - 80
Gndfir
D
mm
(inch)
350 (13.8)
350 (13.8)
350 (13.8)
350 (13.8)
350 (13.8)
500 (19.7)
500 (19.7)
g
