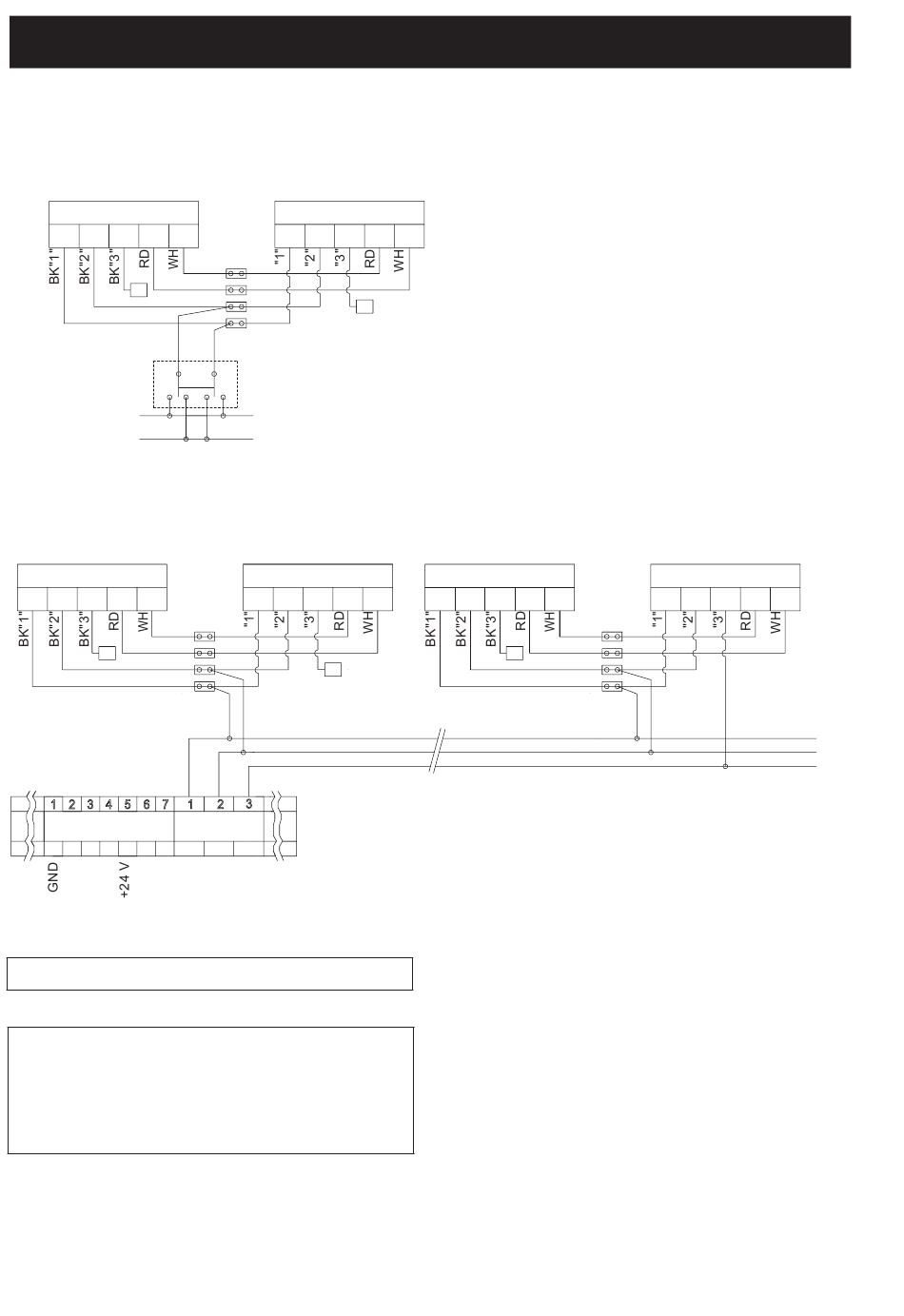

7.1 Connection E740 / 24 V Syncro
General connection (further drives analogue)
E740/24 V DC Syn.
1   RX TX
Connection to emergency power supply units E260N:
E740/24 V DC Syn.
1   RX TX
Terminal strip
E260N
1 1 2 2 3 3 4 4 5 5 6 6 7 7
Vent switch
(at OPEN)
The connecting cables must not be extended!
In the case of 24 V DC and a longer power supply
cable, the cable must have a sufficiently large
cross-section in order to prevent a voltage drop.
Calculate the cross-section!
(See cable plan for SHEV central control units)

E740/24 V DC Syn.
  RX TX
1
2-pole selector switch
–
24 V DC SELV
+
E740/24 V DC Syn.
  RX TX
1
3 3
1 1 2 2
Motor group
– +
Monitoring
Isolate
Conductor "3"
respectively
E740/24 V DC Syn.
1   RX TX
For line control only connect
Conductor "3" to the last motor;
insulate the other Conductors "3".
