6.2

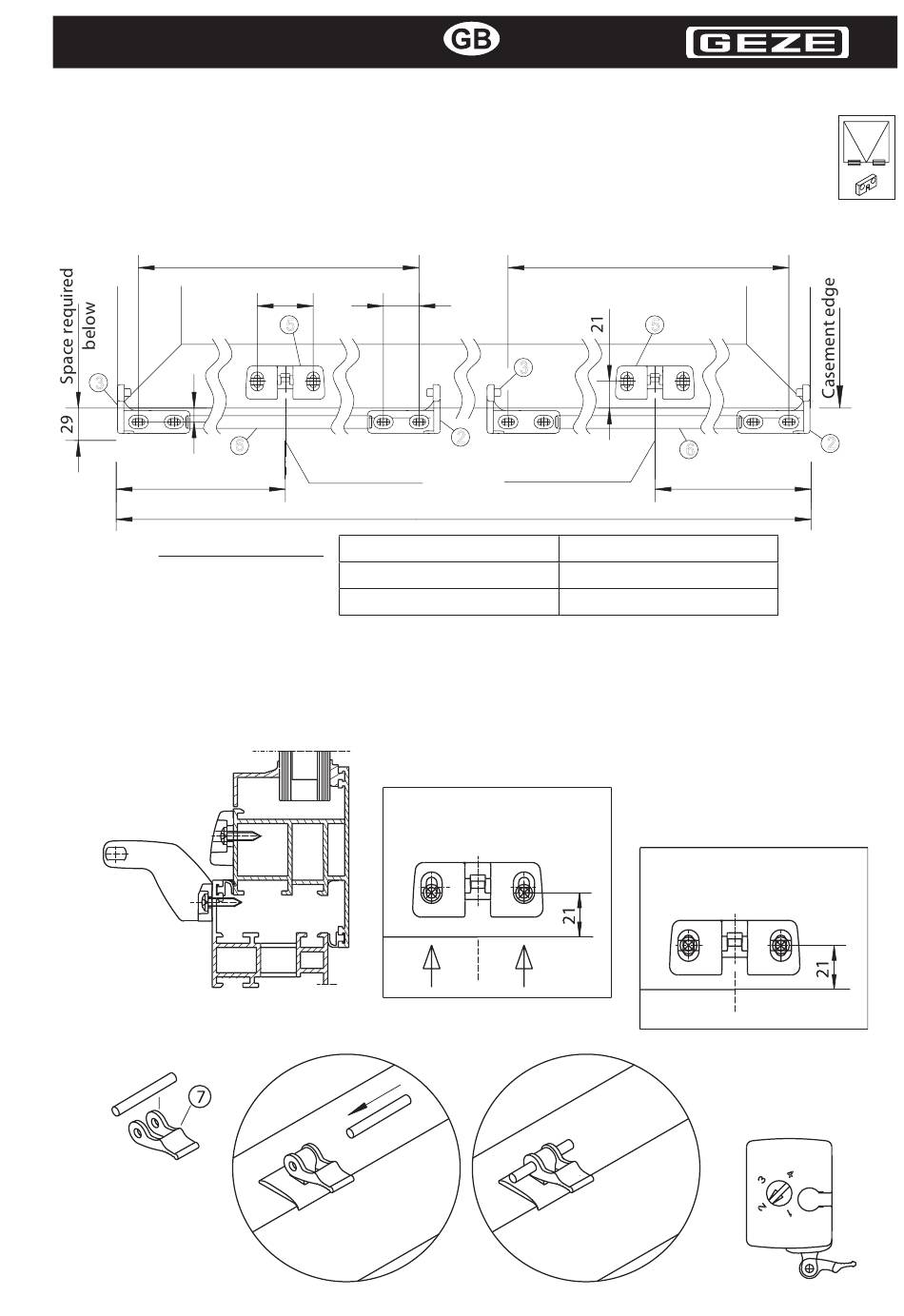

Mounting instructions for outward-opening window

6.2.1 Drilling template for 2 drives
Drill the fitting holes for the drive holders (2), (3) and bracket OW (5),
use the drilling template (colour red).
3
f
Range of application:
6.2.2 Mounting
Position the drive holders (2) and (3) using the spacer (6).
Remove the spacer and mount the drive holders.
Mount the bracket OW (5).
Mount the pin and quick-release fastener (7) to the drive.
390
44 28
5
6
Drive centre
Casement width a
0 -  mm
1000 - 00 mm
3
2
Drive centre
Casement width a
Mounting dimension f
Position of the bracket
OW (5) up to 350 mm
casement height
390
5
6
f
1 mm
1/ a
Position of the bracket
OW (5) above 350 mm
casement height
2
