6.3

Mounting instructions skylight

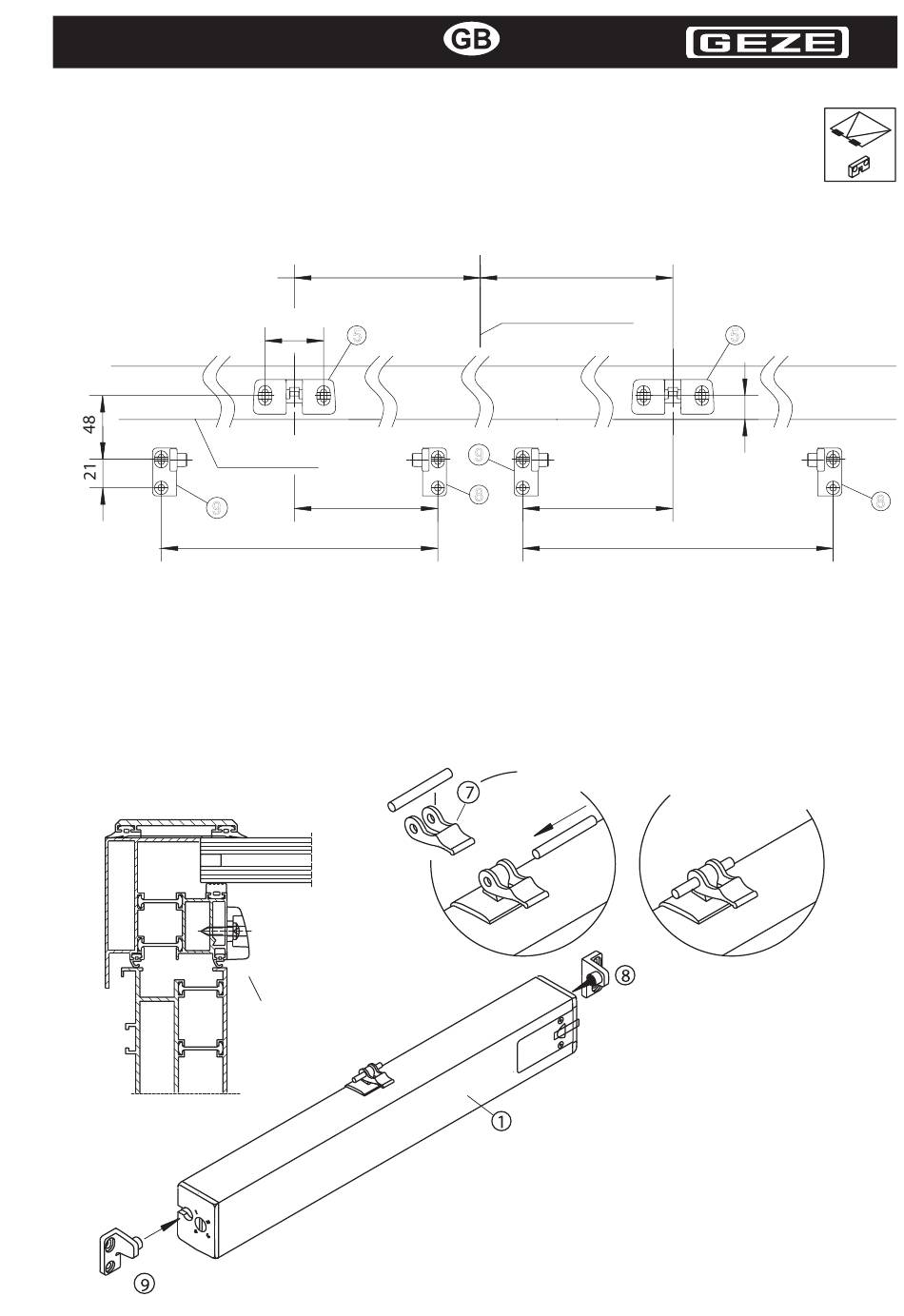

6.3.1 Drilling template for 2 drives
Drill the fitting holes for the drive holders (9), (10) and bracket OW (5).
Use the drilling template (colour green).
9
6.3.2 Mounting
f
44
5
Casement edge
218
436
Mounting dimension f = 1/4 window width
Mount the
bracket OW (5).
Slide in and position the drive holders for roof windows
(8, 9) at the drive (1).
Mount together with the drive.
f
Window centre
9
8 218
Mount the pin and quick-release fastener
(7) to the drive.
5
436
8
1
