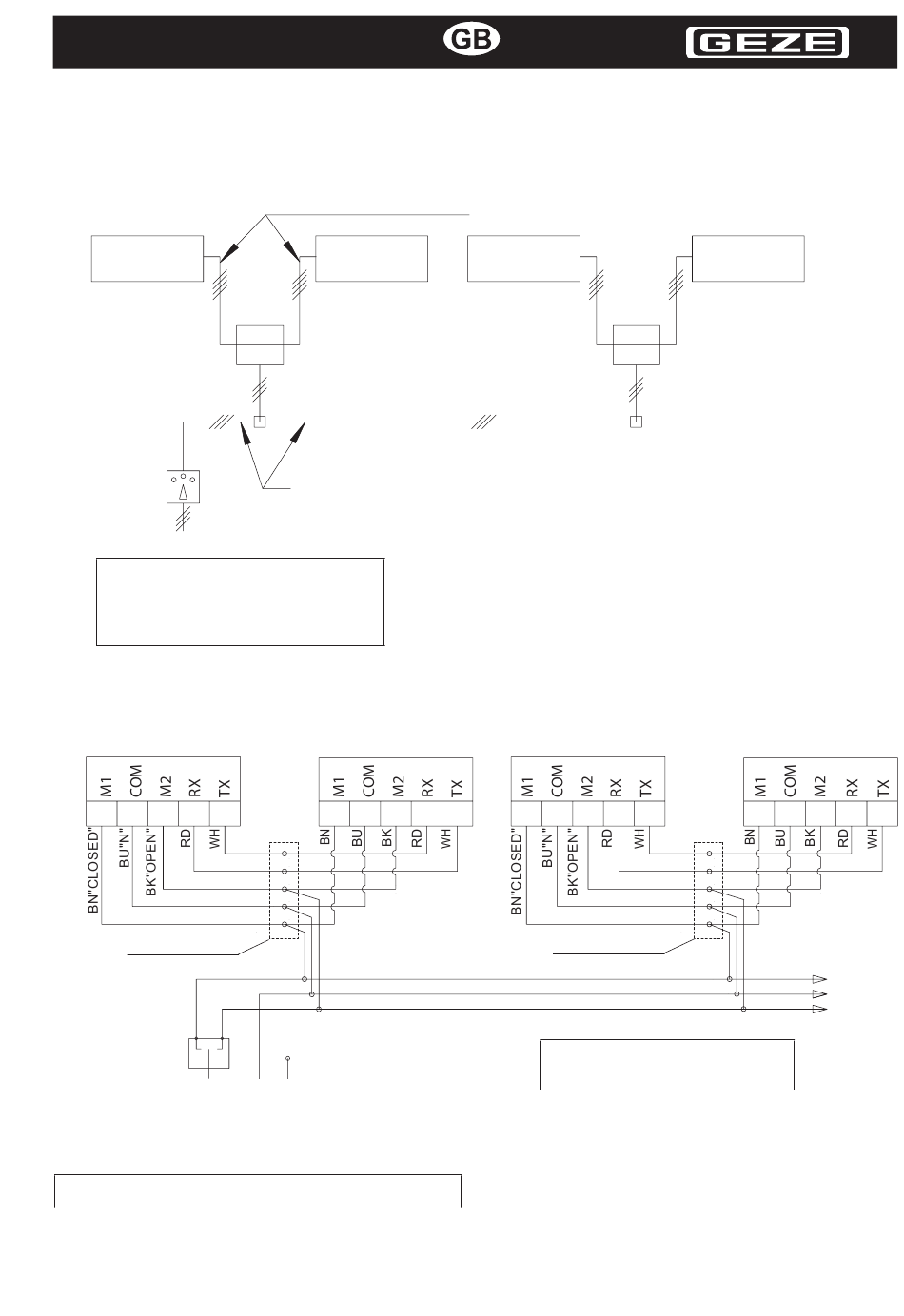

7.2 Connection E740 / 230 V Syncro
Cable laying (further drives analogue)
E0/0 V AC
Syncro
1 selector
switch
Power supply cable
3x1.5 mm² with GN/YE
Controlling of more than
1 operating point is possible with
self-holding module (Mat. No. 29343)
and keys
Connection
E740/230 V AC Syn.
Junction box
1 selector
L1
switch
Power supply cable 230 V AC
The connecting cables must not be extended!
Connecting cable 5x0.75 mm², approx. 5 m
E0/0 V AC
Syncro
Junction box
Cables: 4x1.5 mm² with GN/YE
or 3x1.5 mm² without GN/YE
E740/230 V AC Syn.
N PE
E0/0 V AC
Syncro
Junction box
E740/230 V AC Syn.
Junction box
Switch a max. of 10 drives in paral-
lel (to 1 selector switch)
E0/0 V AC
Syncro
Conductor colours:
BN = Brown
BU = Blue
BK = Black
GN/YE = Green/yellow
RD = Red
WH = White
E740/230 V AC Syn.
CLOSED
N
OPEN
