Range of application

4.1

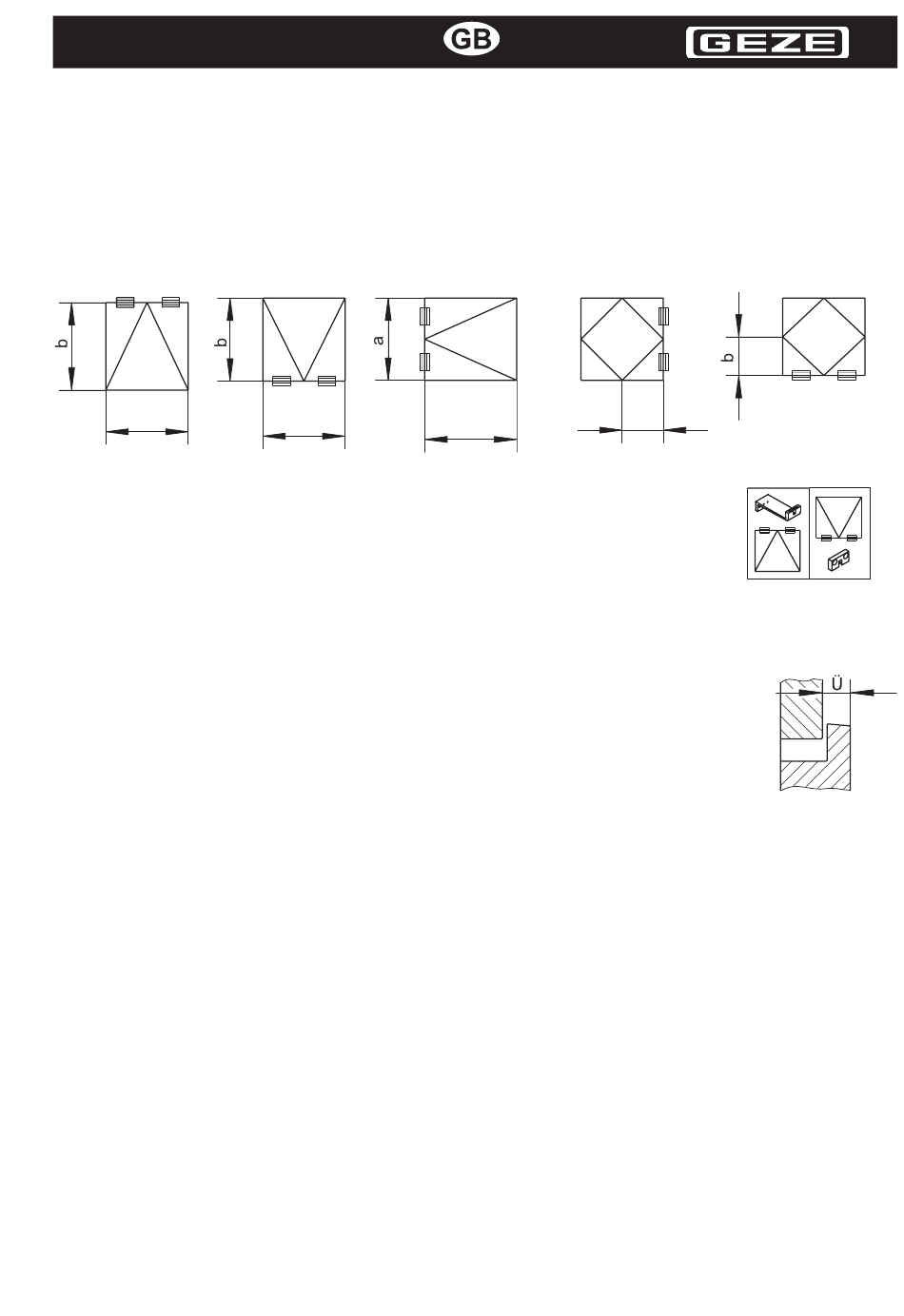

Mounting possibilities general

For metal, plastic and wooden windows, only for dry rooms.
Bottom-hung
window
a
4.2 Range of application for inward-
and outward-opening windows
E740 can be mounted as Syncro,
casement area max. 3 m² for vertical and angled windows with 2 Syncro drives. *)
Locking bracket additionally required at larger casement areas, available only for
bottom-hung casements.
Max. casement weight:
Ü = Overlap height (height difference between casement and frame)
from 0 to 25 mm (support not included).
Required space on the frame: (see drawing, Page 24)
58 mm at inward-opening casements with bracket IW;
29 mm at outward-opening casements,
a = Casement width min. 950 mm, max. 2400 mm (2 drives) *)
At casements narrower than 950 mm the drives project past the casement.
b = For casement height see page 24
*) Dimensions and specifications for 3 or 4 drives on request
Top-hung Side-hung
windows windows
a
For calculation see diagramme, Page 24
Vertically pivoted
window
b
Horizontally
pivoted window
b
