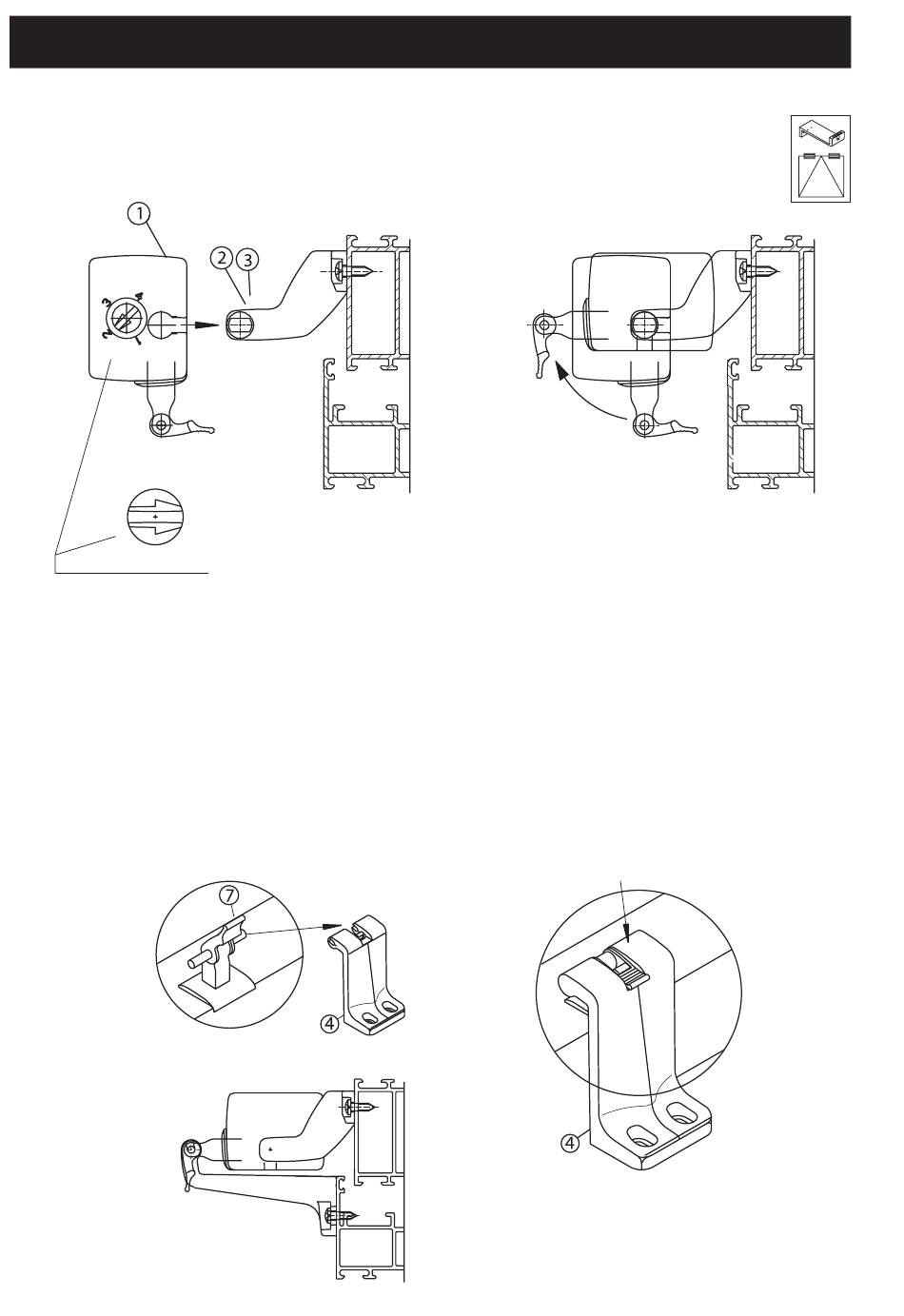

Open the casement, mount the drive (1) on the drive holders (2, 3): To do so,
insert the two oblong holes at the end of the drive (1) into the corresponding
pins of the drive holders (2, 3). Turn the drive (1) by 90°.
e.g.:
Set the stroke: Set the stroke by turning the stroke adjustment switch:
1 = Stroke 100 mm
2 = Stroke 200 mm
3 = Stroke 300 mm
4 = Stroke 400 mm
Carry out the stroke setting in the closing position of the drive.
Close the casement, insert the chain end piece with pin and quick-release fastener (7)
into the oblong hole of the bracket IW (4). If necessary, extend the chain.
Let the quick-release fastener (7) latch in at the bracket IW (4).
Insert
Insert
Swivel
Latch
