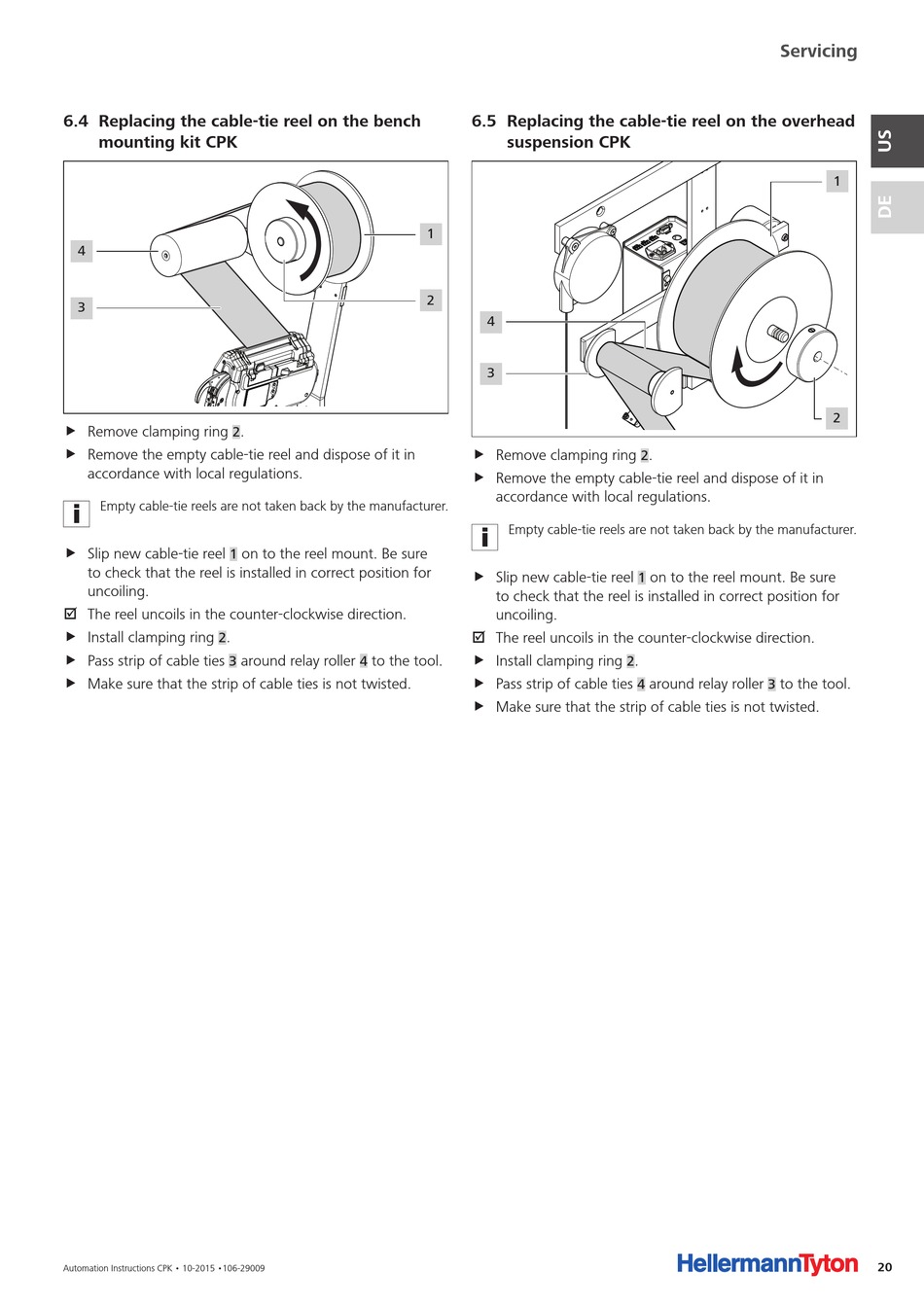

6 .4 Replacing the cable-tie reel on the bench
mounting kit CPK
4
3
f Remove clamping ring
2
f Remove the empty cable-tie reel and dispose of it in
accordance with local regulations.
Empty cable-tie reels are not taken back by the manufacturer.
f Slip new cable-tie reel
1
to check that the reel is installed in correct position for
uncoiling.
; The reel uncoils in the counter-clockwise direction.
f Install clamping ring
.
2
f Pass strip of cable ties
3
f Make sure that the strip of cable ties is not twisted.
Automation Instructions CPK • 10-2015 •106-29009
.
on to the reel mount. Be sure
around relay roller to the tool.
4
6 .5 Replacing the cable-tie reel on the overhead
suspension CPK
1
2
4
3
f Remove clamping ring
f Remove the empty cable-tie reel and dispose of it in
accordance with local regulations.
Empty cable-tie reels are not taken back by the manufacturer.
f Slip new cable-tie reel
to check that the reel is installed in correct position for
uncoiling.
; The reel uncoils in the counter-clockwise direction.
f Install clamping ring
f Pass strip of cable ties
f Make sure that the strip of cable ties is not twisted.
Servicing
.
2
on to the reel mount. Be sure
1
.
2
around relay roller to the tool.
4 3
1
2
