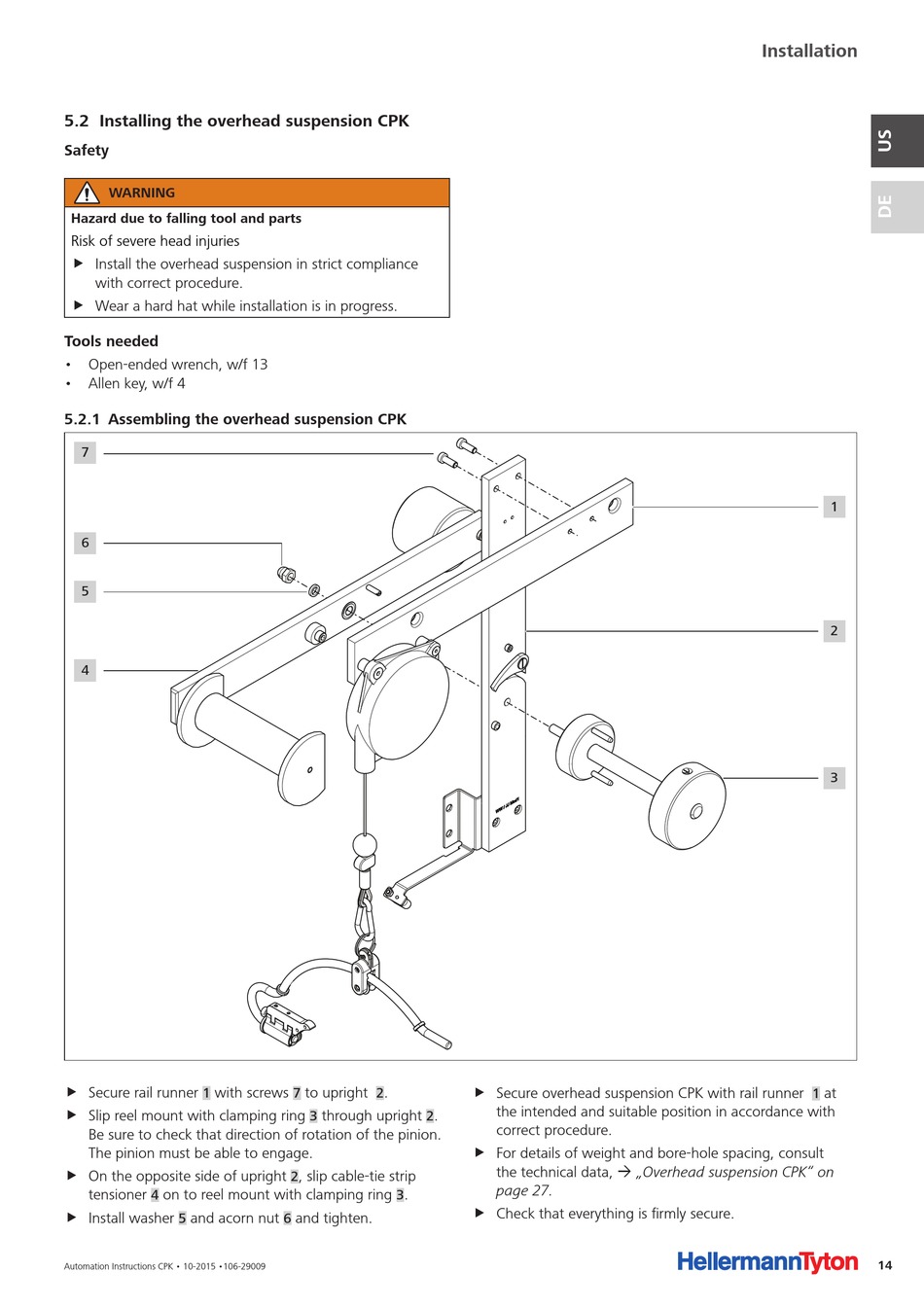

5 .2 Installing the overhead suspension CPK
Safety
WARNING
Hazard due to falling tool and parts
Risk of severe head injuries
f Install the overhead suspension in strict compliance
with correct procedure.
f Wear a hard hat while installation is in progress.
Tools needed
• Open-ended wrench, w/f 13
• Allen key, w/f 4
5 .2 .1 Assembling the overhead suspension CPK
7
6
5
4
f Secure rail runner
with screws
1
f Slip reel mount with clamping ring
Be sure to check that direction of rotation of the pinion.
The pinion must be able to engage.
f On the opposite side of upright
tensioner
on to reel mount with clamping ring
4
f Install washer
and acorn nut
5
Automation Instructions CPK • 10-2015 •106-29009
to upright
.
7
2
through upright
.
3
2
, slip cable-tie strip
2
.
3
and tighten.
6
f Secure overhead suspension CPK with rail runner
the intended and suitable position in accordance with
correct procedure.
f For details of weight and bore-hole spacing, consult
the technical data, à „Overhead suspension CPK" on
page 27.
f Check that everything is firmly secure.
Installation
1
2
3
at
1
14
