See the Operating Instructions for the tool for a description
of the power pack.
Description of the connections: à „Pinout of serial interface,
power pack with control box" on page 24.

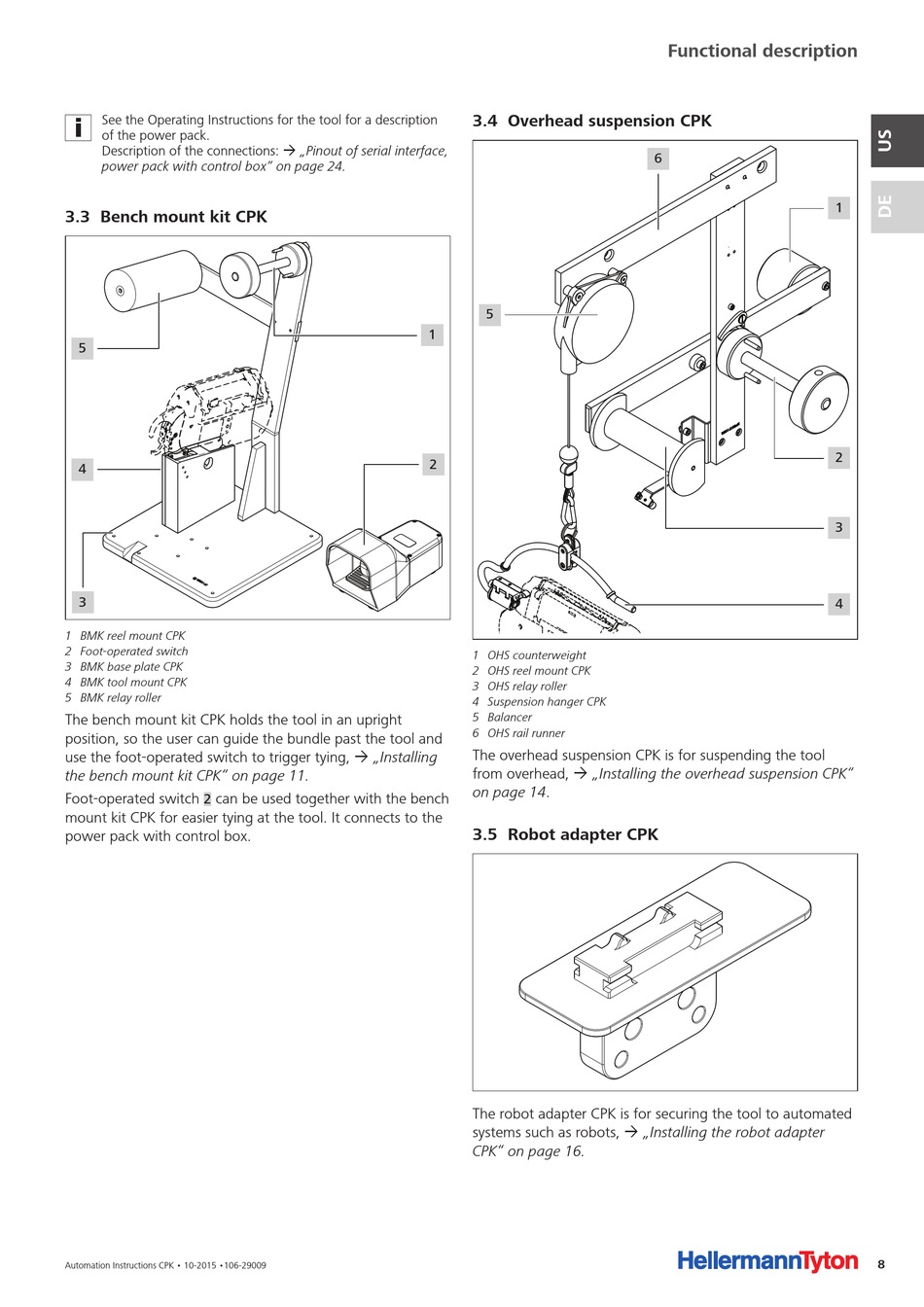

3 .3 Bench mount kit CPK

5
4
3
1 BMK reel mount CPK
2 Foot-operated switch
3 BMK base plate CPK
4 BMK tool mount CPK
5 BMK relay roller
The bench mount kit CPK holds the tool in an upright
position, so the user can guide the bundle past the tool and
use the foot-operated switch to trigger tying, à „Installing
the bench mount kit CPK" on page 11.
Foot-operated switch can be used together with the bench
2
mount kit CPK for easier tying at the tool. It connects to the
power pack with control box.
Automation Instructions CPK • 10-2015 •106-29009

3 .4 Overhead suspension CPK

5
1
2
1 OHS counterweight
2 OHS reel mount CPK
3 OHS relay roller
4 Suspension hanger CPK
5 Balancer
6 OHS rail runner
The overhead suspension CPK is for suspending the tool
from overhead, à „Installing the overhead suspension CPK"
on page 14.

3 .5 Robot adapter CPK

The robot adapter CPK is for securing the tool to automated
systems such as robots, à „Installing the robot adapter
CPK" on page 16.
Functional description
6
1
2
3
4
8
