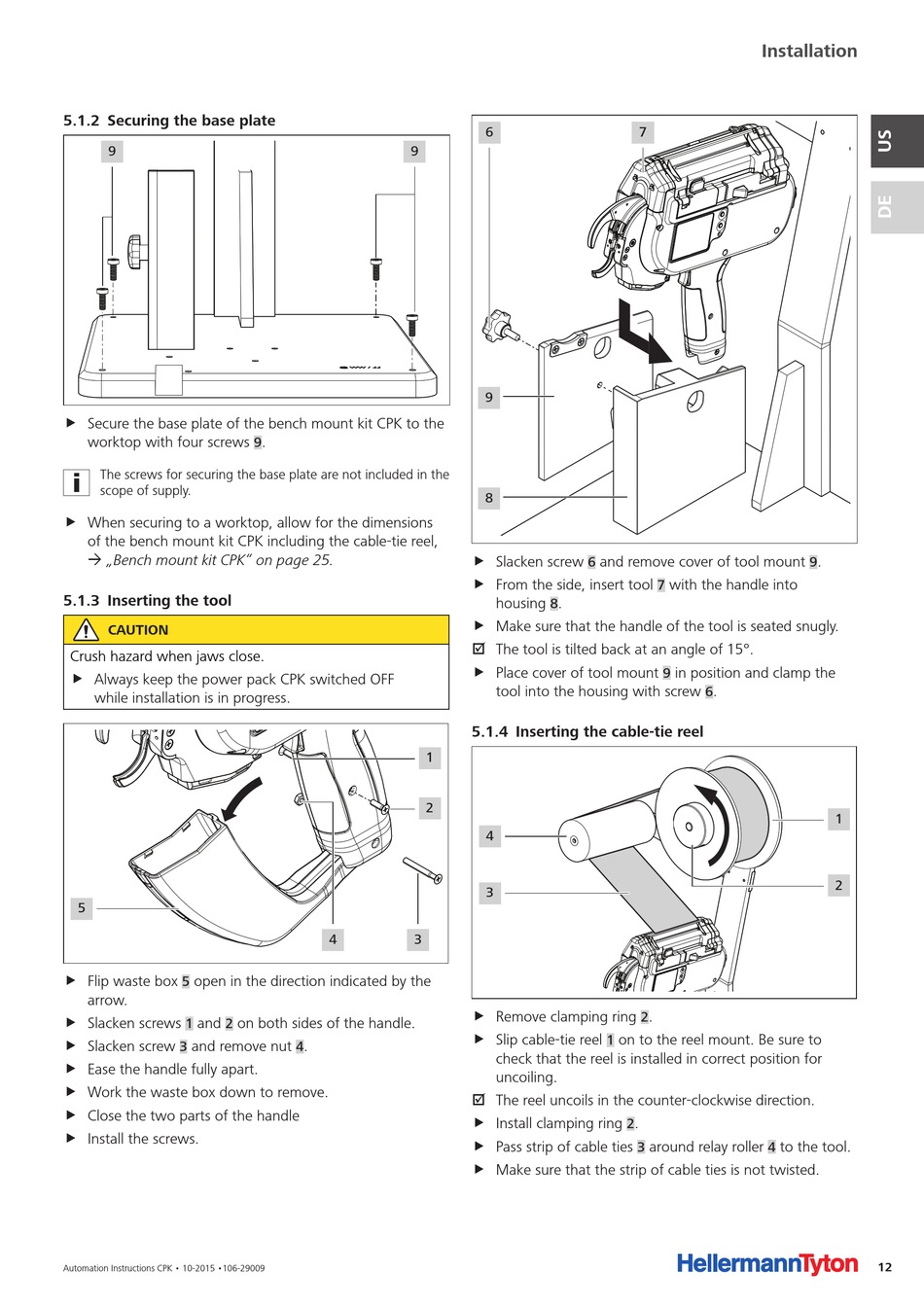

5 .1 .2 Securing the base plate
9
f Secure the base plate of the bench mount kit CPK to the
worktop with four screws
The screws for securing the base plate are not included in the
scope of supply.
f When securing to a worktop, allow for the dimensions
of the bench mount kit CPK including the cable-tie reel,
à „Bench mount kit CPK" on page 25.
5 .1 .3 Inserting the tool
CAUTION
Crush hazard when jaws close.
f Always keep the power pack CPK switched OFF
while installation is in progress.
5
f Flip waste box
open in the direction indicated by the
5
arrow.
f Slacken screws
and
on both sides of the handle.
1
2
f Slacken screw
and remove nut
3
f Ease the handle fully apart.
f Work the waste box down to remove.
f Close the two parts of the handle
f Install the screws.
Automation Instructions CPK • 10-2015 •106-29009
9
.
9
1
2
4
3
.
4
6
7
9
8
f Slacken screw
and remove cover of tool mount
6
f From the side, insert tool
housing
.
8
f Make sure that the handle of the tool is seated snugly.
; The tool is tilted back at an angle of 15°.
f Place cover of tool mount
tool into the housing with screw
5 .1 .4 Inserting the cable-tie reel
4
3
f Remove clamping ring
2
f Slip cable-tie reel
on to the reel mount. Be sure to
1
check that the reel is installed in correct position for
uncoiling.
; The reel uncoils in the counter-clockwise direction.
f Install clamping ring
.
2
f Pass strip of cable ties
3
f Make sure that the strip of cable ties is not twisted.
Installation
.
9
with the handle into
7
in position and clamp the
9
.
6
.
around relay roller
to the tool.
4
1
2
12
