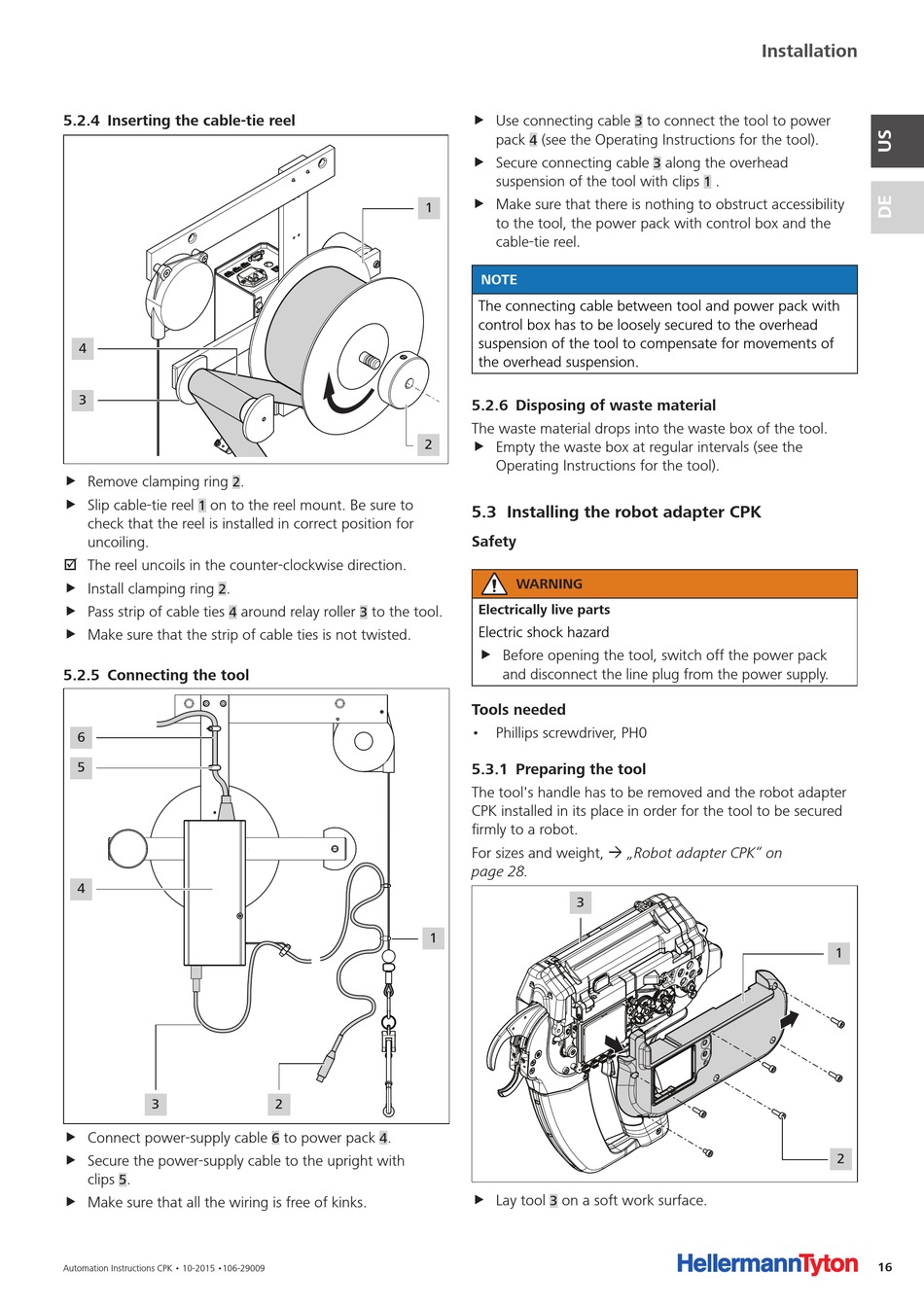

5 .2 .4 Inserting the cable-tie reel
4
3
f Remove clamping ring
2
f Slip cable-tie reel
on to the reel mount. Be sure to
1
check that the reel is installed in correct position for
uncoiling.
; The reel uncoils in the counter-clockwise direction.
f Install clamping ring
.
2
f Pass strip of cable ties
4
f Make sure that the strip of cable ties is not twisted.
5 .2 .5 Connecting the tool
6
5
4
3
f Connect power-supply cable
f Secure the power-supply cable to the upright with
clips
.
5
f Make sure that all the wiring is free of kinks.
Automation Instructions CPK • 10-2015 •106-29009
.
around relay roller
to the tool.
3
2
to power pack
.
6
4
f Use connecting cable
pack
(see the Operating Instructions for the tool).
4
f Secure connecting cable
suspension of the tool with clips
f Make sure that there is nothing to obstruct accessibility
1
to the tool, the power pack with control box and the
cable-tie reel.
NOTE
The connecting cable between tool and power pack with
control box has to be loosely secured to the overhead
suspension of the tool to compensate for movements of
the overhead suspension.
5 .2 .6 Disposing of waste material
The waste material drops into the waste box of the tool.
2
f Empty the waste box at regular intervals (see the
Operating Instructions for the tool).
5 .3 Installing the robot adapter CPK
Safety
WARNING
Electrically live parts
Electric shock hazard
f Before opening the tool, switch off the power pack
and disconnect the line plug from the power supply.
Tools needed
• Phillips screwdriver, PH0
5 .3 .1 Preparing the tool
The tool's handle has to be removed and the robot adapter
CPK installed in its place in order for the tool to be secured
firmly to a robot.
For sizes and weight, à „Robot adapter CPK" on
page 28.
3
1
f Lay tool
on a soft work surface.
3
Installation
to connect the tool to power
3
along the overhead
3
.
1
1
2
16
