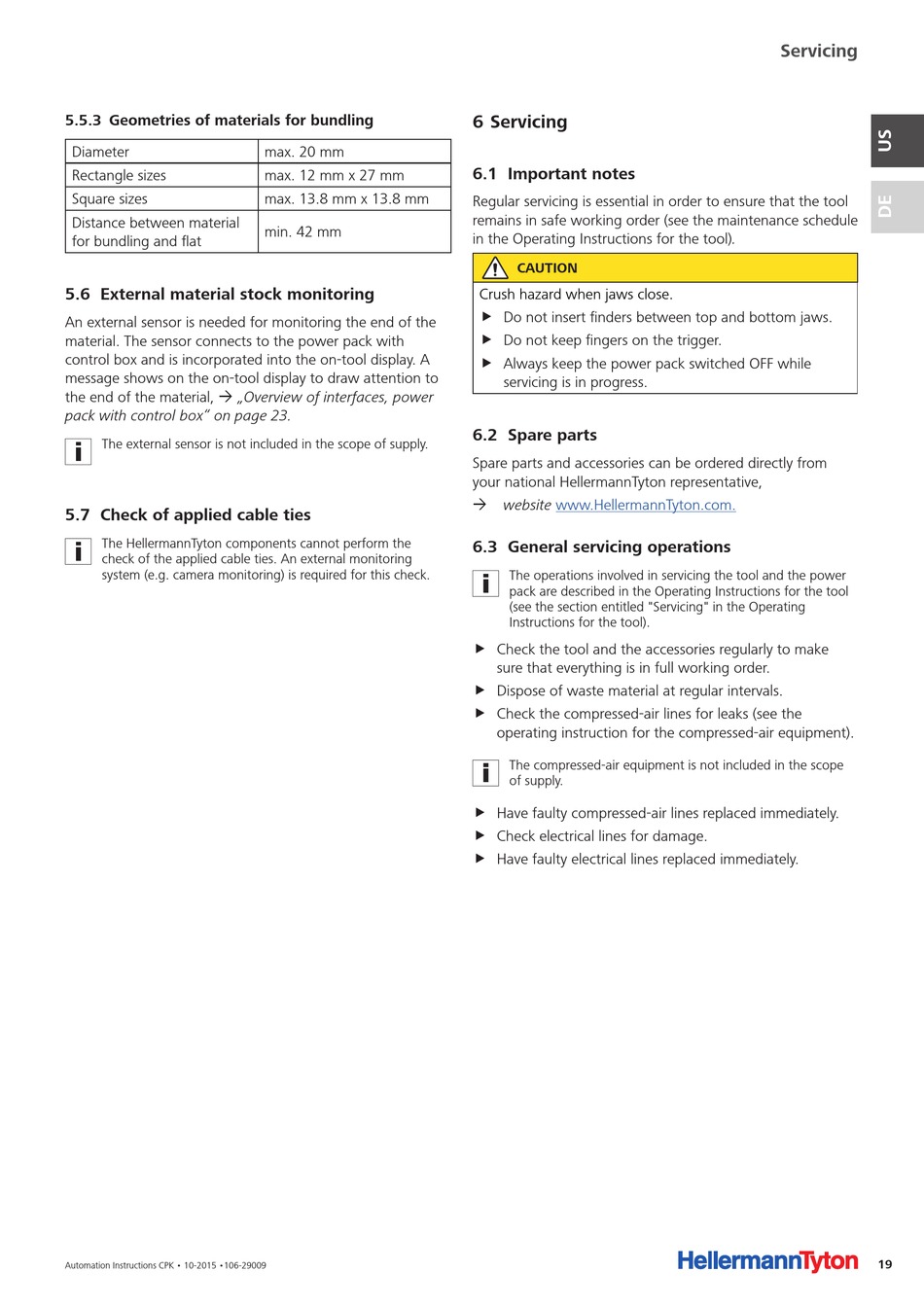

5 .5 .3 Geometries of materials for bundling

Diameter
Rectangle sizes
Square sizes
Distance between material
for bundling and flat

5 .6 External material stock monitoring

An external sensor is needed for monitoring the end of the
material. The sensor connects to the power pack with
control box and is incorporated into the on-tool display. A
message shows on the on-tool display to draw attention to
the end of the material, à „Overview of interfaces, power
pack with control box" on page 23.
The external sensor is not included in the scope of supply.

5 .7 Check of applied cable ties

The HellermannTyton components cannot perform the
check of the applied cable ties. An external monitoring
system (e.g. camera monitoring) is required for this check.
Automation Instructions CPK • 10-2015 •106-29009
max. 20 mm
max. 12 mm x 27 mm
max. 13.8 mm x 13.8 mm
min. 42 mm

6 Servicing

6 .1 Important notes

Regular servicing is essential in order to ensure that the tool
remains in safe working order (see the maintenance schedule
in the Operating Instructions for the tool).
CAUTION
Crush hazard when jaws close.
f Do not insert finders between top and bottom jaws.
f Do not keep fingers on the trigger.
f Always keep the power pack switched OFF while
servicing is in progress.

6 .2 Spare parts

Spare parts and accessories can be ordered directly from
your national HellermannTyton representative,
à website www.HellermannTyton.com.

6 .3 General servicing operations

The operations involved in servicing the tool and the power
pack are described in the Operating Instructions for the tool
(see the section entitled "Servicing" in the Operating
Instructions for the tool).
f Check the tool and the accessories regularly to make
sure that everything is in full working order.
f Dispose of waste material at regular intervals.
f Check the compressed-air lines for leaks (see the
operating instruction for the compressed-air equipment).
The compressed-air equipment is not included in the scope
of supply.
f Have faulty compressed-air lines replaced immediately.
f Check electrical lines for damage.
f Have faulty electrical lines replaced immediately.
Servicing
