SINGLE CABINET VERSION
The following are located on the back of the UPS unit:
• Input/output plug [9]: connect to the pre-wired I/O connector, which is with the accessories
supplied with the unit.
• Socket for RS232 serial computer interface connection (9-pin female) [12]: required for use of
the UPS LINK monitoring software.
• Two sockets to connect the remote control and the computer interface to logic signals
(contacts) (9-pin male) [13]: for use with the respective accessories (optionals).
Installation procedure:
1) Put the UPS in its final position checking that the ventilation slits are not obstructed. Read
points 2) and 3) only if the I/O connector is not supplied pre-wired.
2) Wire the I/O connector supplied as shown in Figure 2, using a sheathed cable with internal
conductors of at least 2.5 mm
section.
3) Insert the connector in the plastic cover
and secure it with the screws, then
secure the cables to the cover using the
cable clamp (see Fig. 3).
4) Remove the cover of the plug [9] by
taking out the attachment screws.
5) Connect the I/O connector to the plug [9]
on the back of the UPS securing it to the
frame using the screws (see Fig. 1).
6) Connect the loads to the UPS output
making sure that the relative appliances
are switched off.
7) Connect the power supply plug to a
current outlet adequate for the voltage
and current required.

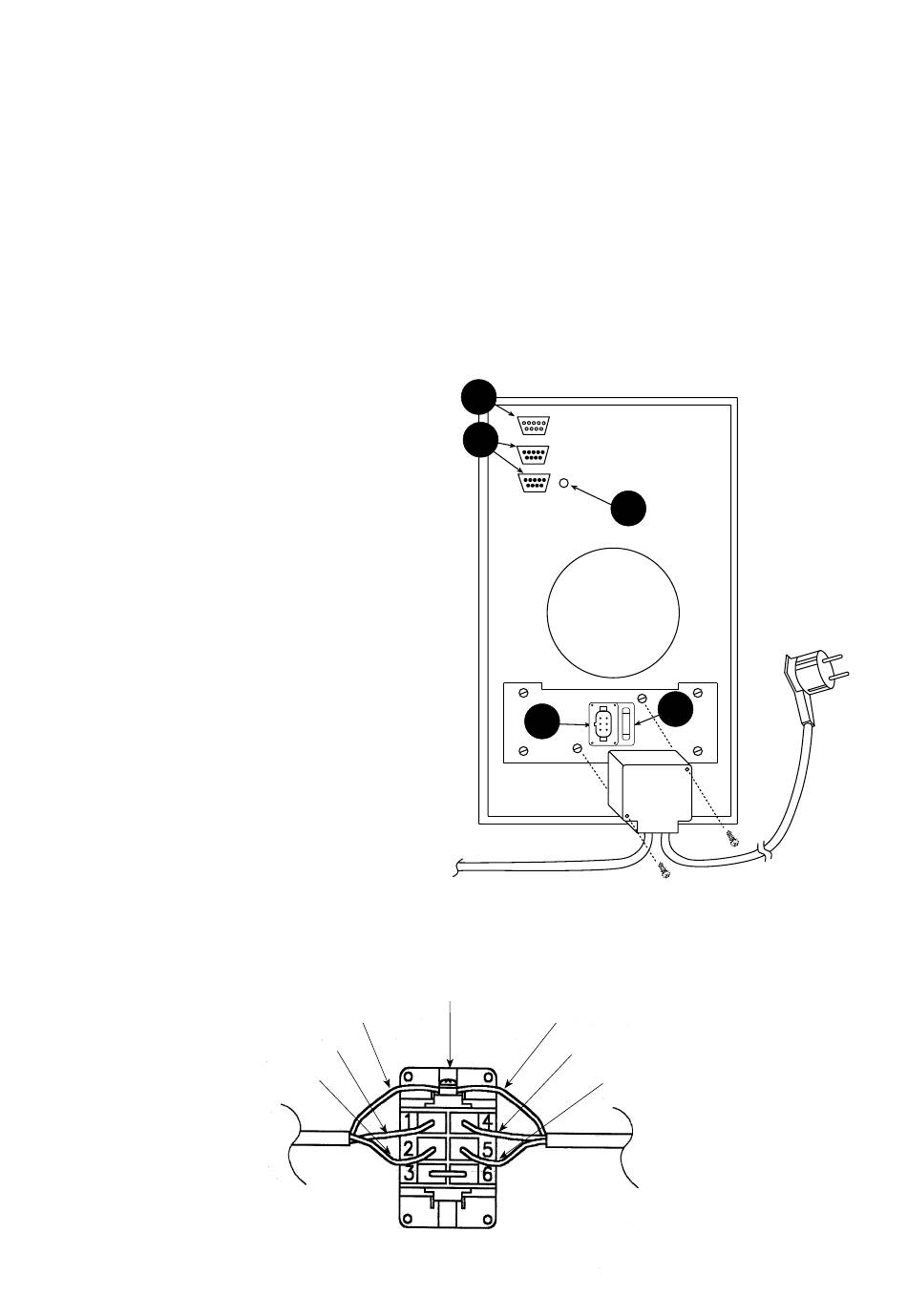

Fig. 2
Output cable
(to the load)
Terminal n°1 PHASE OUTPUT
Terminal n°2 NEUTRAL OUTPUT
2 cross-
To the protected appliances
I/O CONNECTOR
Seen from wire insertion side
Earth connection
Yellow-green wire
Brown wire
Blue wire
7
12
13
11
9
Yellow-green wire
Blue wire
Brown wire
Terminal n°4 NEUTRAL INPUT
Terminal n°5 PHASE INPUT
To the electrical
mains supply
10
Input cable
(to the electrical line)
Fig. 1
