DOUBLE CABINET VERSION

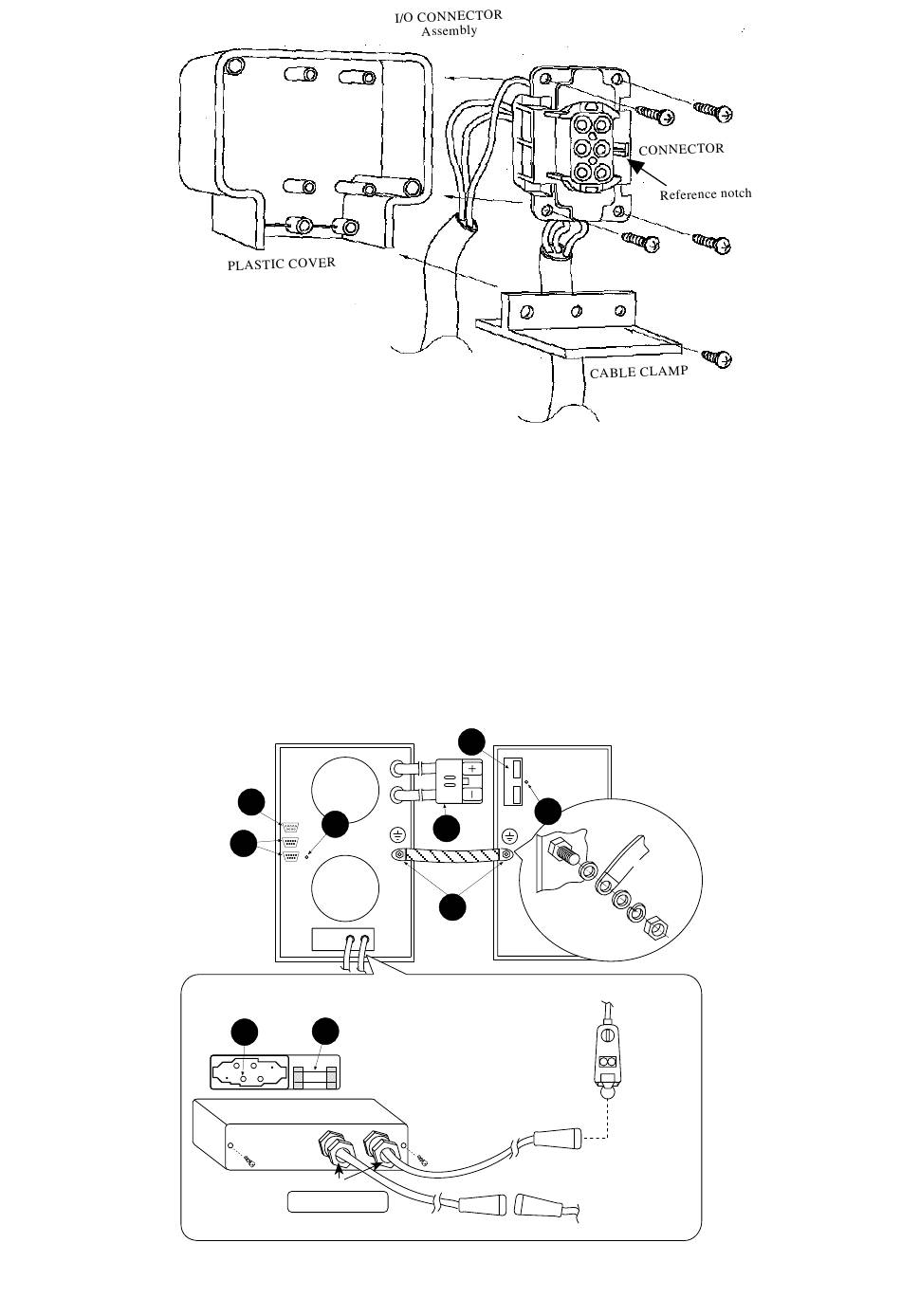

The following are located on the back of the UPS:
Inverter Unit
• Input/output plug [9]: connect to the pre-wired I/O connector which is with the accessories
supplied with the unit.
• Socket for RS232 serial computer interface connection (9-pin female) [12]: required for use of
the UPS LINK monitoring software.
• Two sockets to connect the remote control and the computer interface to logic signals (9-pin
male) [13]: for use with the respective accessories (optionals).
• Cable output for connection to battery cabinet with dedicated connector [15].
• Screws for connection of the battery unit to earth [14].
INVERTER UNIT
12
11
13
9 10
CABLE GUIDES
TO SECURE CABLES
TIGHTEN THE CABLE GUIDES
BY TURNING CLOCKWISE
BATTERY UNIT
17
16
15
BRASS
WASHER
COPPER BRAID
14
POWER SUPPLY INPUT
(FROM ELECTRICAL LINE)
STANDARD SOCKET
CEE 2P+T
OUTPUT FOR
PROTECTED
APPLIANCES
STANDARD PLUG
STANDARD SOCKET
CEE 2P+T (SUB-GROUP)
CEE 2P+T
8
COPPER BRAID
BRASS WASHER
SPRING WASHER
NUT
STANDARD SOCKET
CEE 2P+T WITH
DISCONNECTOR
AND FUSE (32A)
Fig. 3
Fig. 4
