Supply Voltage - Danfoss AK-CC 450 Instructions

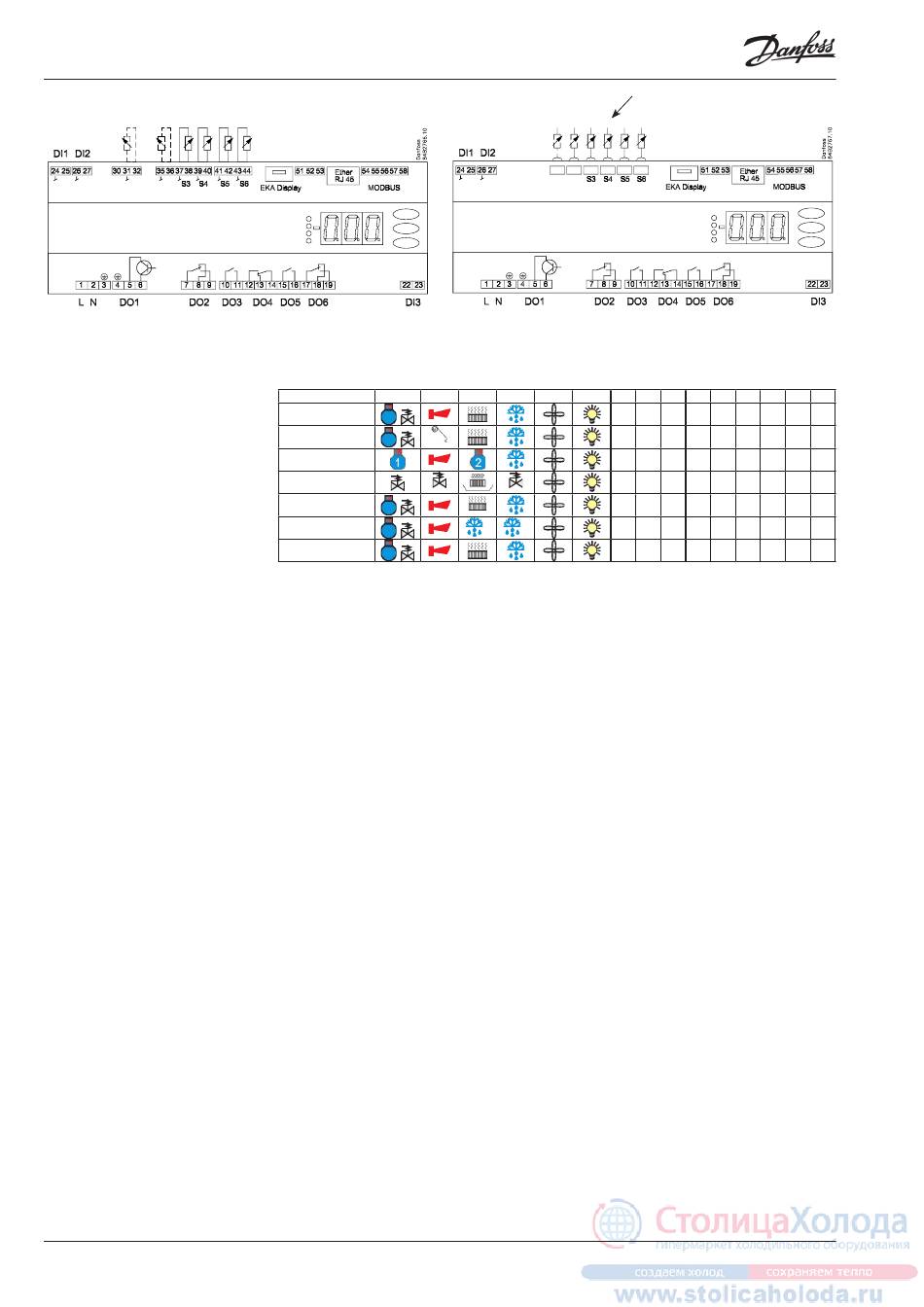

Connections
Overview of outputs and
applications.
See also electrical diagrams earlier
in the instruction.
DI1
Digital input signal.
The defined function is active when the input is short-circuited/
opened. The function is defined in o02.
DI2
Digital input signal.
The defined function is active when the input is short-circuited/
opened. The function is defined in o37.
S3, S4, S5, S6, S3B, S5B,S6B
Pt 1000 ohm sensor or PTC 1000 ohm sensor. All have to be of
the same type.
S3, air sensor, placed in the warm air before the evaporator
S4, air sensor, placed in the cold air after the evaporator
(the need for either S3 or S4 can be deselected in the
configuration)
S5, defrost sensor, placed on the evaporator
S6, product sensor
EKA Display
If there is be external reading/operation of the controller, display
type EKA 163B or EKA 164B can be connected.
RS485 (terminal 51, 52, 53)
For data communication, but only if a data communication
module is inserted in the controller. The module can be a LON
RS485 or a MODBUS.
Terminal 51 = screen
Terminal 52 = A (A+)
Terminal 53 = B (B-)
(For LON RS485 and gateway type AKA 245 the gateway must be
version 6.20 or higher.)
12
English
Application DO1
1
/
2
/
3
4
5
/
6
/
7
/
Instructions RI8LM352 © Danfoss 10/2007
DO2 DO3 DO4 DO5 DO6 DI1 DI2 DI3 AI1 AI2 AI3 AI4 AI5 AI6
Blinds
suction hotgas
heat
B A
RJ45
For data communication, but only if a TCP/IP module is inserted in
the controller.
MODBUS
For data communication.
Terminal 56 = screen
Terminal 57 = A+
Terminal 58 = B-
(Alternatively the terminals can be connected to an external
display type EKA 163A or 164A, but then they cannot be used
for data communication. Any data communication must then be
carried out by one of the other methods.)

Supply voltage

230 V a.c.
DO1
Connection of solenoid valve or relay for compressor. The coil
must be a 230 V a.c. coil.
DO2
Alarm
There is a connection between terminal 7 and 8 in alarm
situations and when the controller is without power.
Night blind
There is connection between terminal 7 and 9 when the night
blind is up/down.
Suction line valve
There is connection between terminal 7 and 9 when the
suction line must be open.
Version where sensor
connections have plug
connections.
• • •
S3 S4 S5
• • •
S3 S4 S5
• • •
S3 S4 S5
• • •
S3 S4 S5
• • •
S3 S4 S5
• • •
S3B S5B S3A S4 S5
• • •
S3B S6B S3A S4 S5
AK-CC 450
S6
S6
S6
S6
S6
S6
S6A
