1 Throttle cable
2 Light switch
3 Light switch lead
4 Clamp
5 Decompression cable
6 Clutch cable
7 Hose guide
8 Trip meter
9 Brake hose
0 Engine stop switch lead

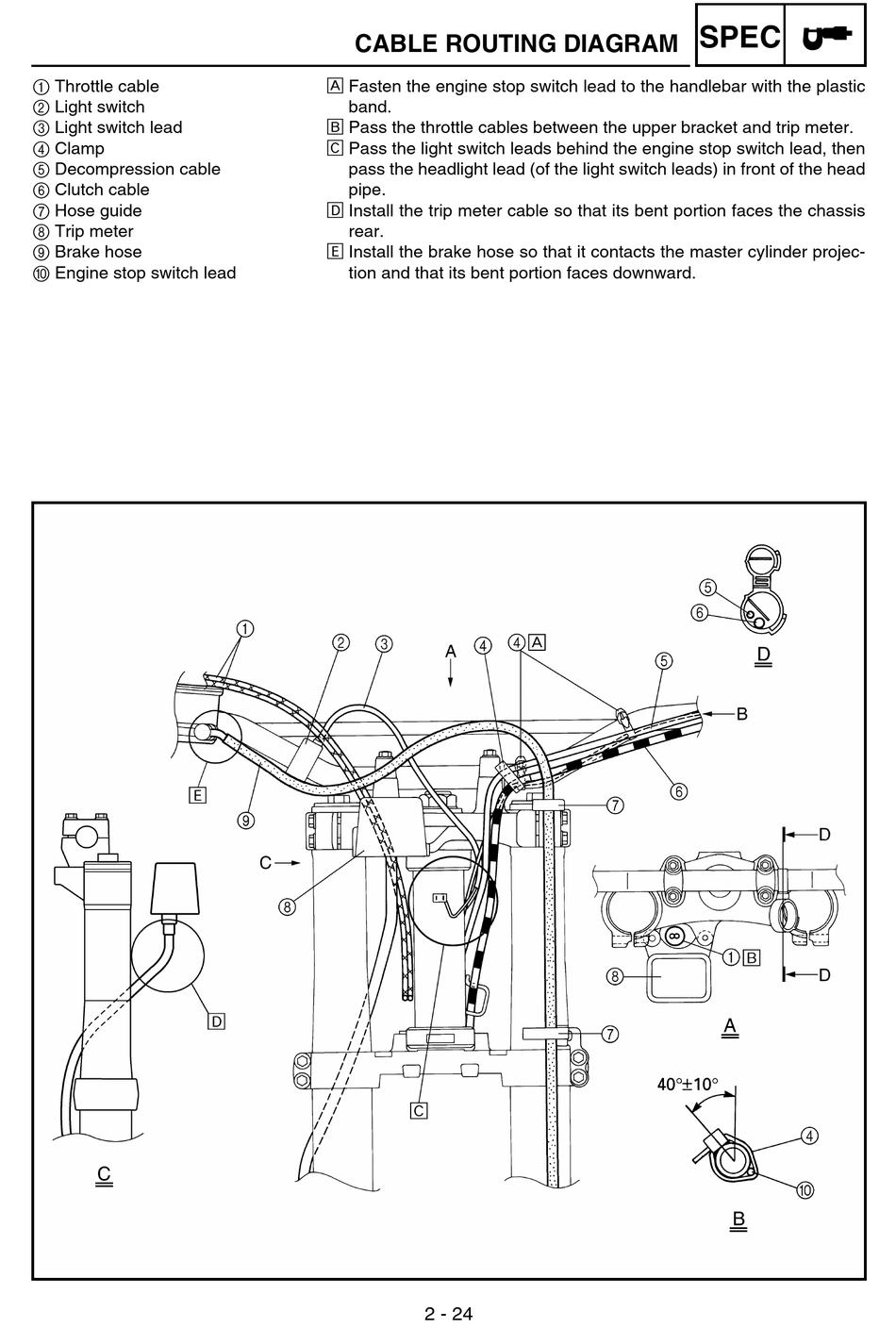

CABLE ROUTING DIAGRAM
Å Fasten the engine stop switch lead to the handlebar with the plastic
band.
ı Pass the throttle cables between the upper bracket and trip meter.
Ç Pass the light switch leads behind the engine stop switch lead, then
pass the headlight lead (of the light switch leads) in front of the head
pipe.
Î Install the trip meter cable so that its bent portion faces the chassis
rear.
‰ Install the brake hose so that it contacts the master cylinder projec-
tion and that its bent portion faces downward.
2 - 24
