8.2. Configuring the FlightRecorder using the
MULTImate (# 8 2094).
!
Note: if you wish to configure the FlightRecorder using the
MULTImate, the latter must be loaded with firmware version
V1.54 or later.
•
Ensure that the Micro SD card is in place in the
FlightRecorder before you change the settings using the
MULTImate.
•
Disconnect all leads and sensors from the FlightRecorder.
•
Locate the three-core UNI lead attached to the
FlightRecorder, and connect it to the MULTImate.
•
Switch the MULTImate ON, and select the menu point "11
MPX sensors".
•
Edit the desired parameters, and send the data to the
FlightRecorder.
8.3. Configuring the FlightRecorder using the
MULTIPLEX Launcher PC program
This PC program is available as a free download from
www.multiplex-rc.de.
Essential accessories: USB PC lead, UNI (# 8 5149), sensor Y-
lead (three UNI connectors), battery with a voltage in the range
3.5 V ... 9.0 V.
•
Ensure that the Micro SD card is in place in the
FlightRecorder before you change the settings using
MULTIPLEX Launcher.
•
Disconnect all leads and sensors from the FlightRecorder.
•
Locate the three-core UNI lead attached to the
FlightRecorder, and connect it to the "sensor Y-lead".
•
Connect this assembly to the "USB PC lead, UNI".
•
Connect the USB PC lead to a USB socket on your PC.
•
Connect the power source to the last free socket on the
sensor Y-lead.
•
Open the MULTIPLEX Launcher PC program, select the
correct COM port, and click on "Start searching" / "Suche
starten".
•
Once the FlightRecorder has been detected by MULTIPLEX
Launcher, "MULTIPLEX SensorManager" opens.
•
Click on the "Settings" / "Einstellungen" button and confirm
the following message "Please connect only ONE device." /
"Bitte nur EIN Gerät anschließen." with "OK".
•

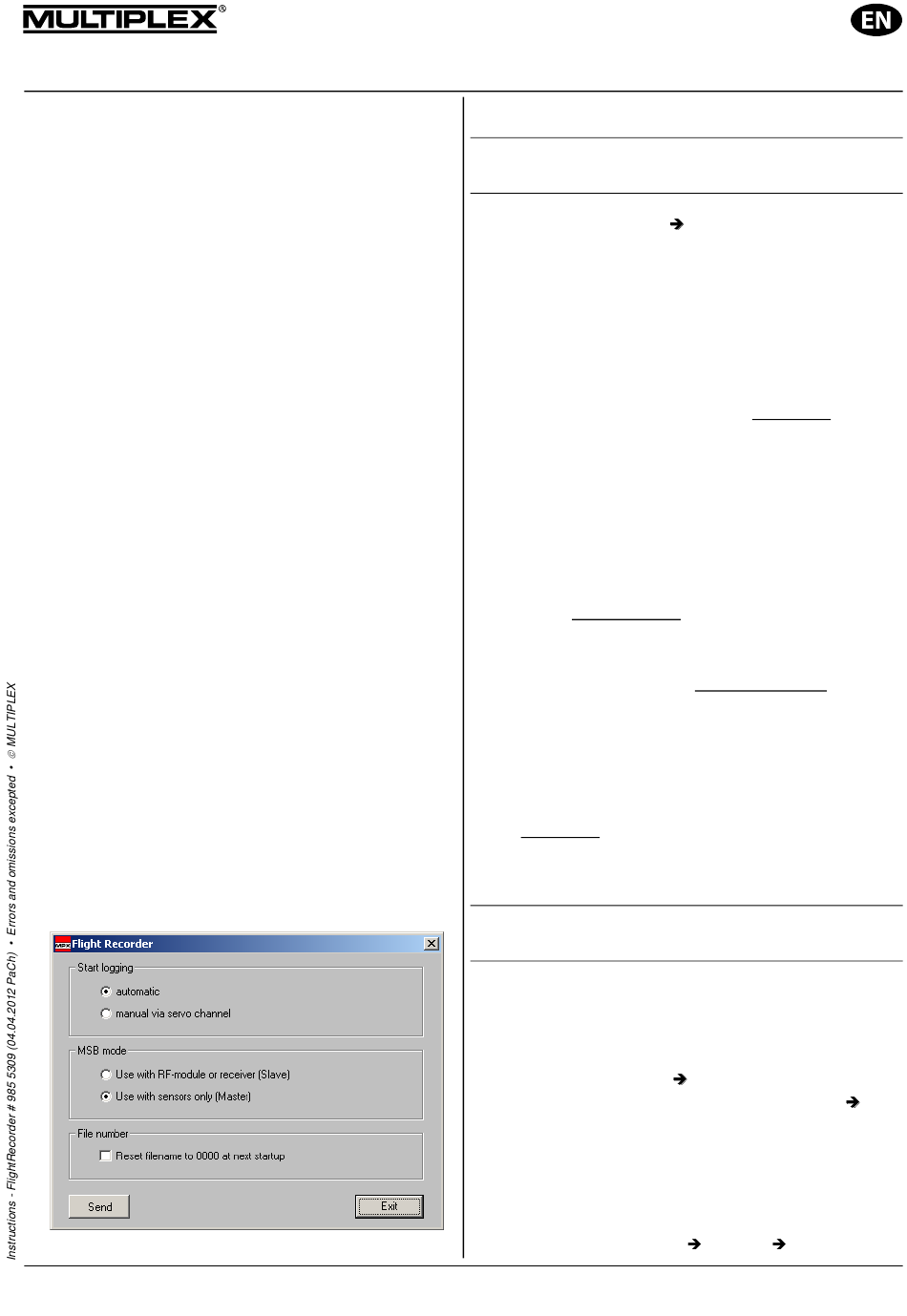

The "Flight Recorder" window now opens.
Operating Instructions
FlightRecorder
•
9.
R
ECORDING
Once you have checked the configuration of the FlightRecorder
and changed it if necessary (
the method of starting and stopping the data recording process,
and set up the unit for its first use.
9.1.
automatic recording start
When the FlightRecorder is switched on, it completes a brief
initialisation phase, then opens a file, and automatically starts
logging data.
Data recording ceases when the FlightRecorder is switched off.
Next time you switch on, logging resumes in a new file.
9.2.
manual recording start
A switch on the transmitter is used to control the start and stop
of the data recording process:
When the FlightRecorder is switched on, it completes a brief
initialisation phase, then opens a file; however, it does not start
logging until it is activated by means of a switch (servo channel).
The process ceases when switched off using the servo channel.
Next time the unit is switched ON using the servo channel, log-
ging resumes in the same file. The interruption in the logging
process can be seen in the time axis.
The file is closed when the FlightRecorder is switched off.
Next time the unit is switched on, a new file is opened.
9.3.
When the transmitter is switched on, the FlightRecorder com-
pletes a brief initialisation phase, then automatically starts to
record data.
Data recording ceases when the transmitter is switched off.
Next time the transmitter is switched on, the logging process re-
sumes in a new file.
In this case the recording process cannot be started and
stopped by means of a servo channel, i.e. using a switch on the
transmitter.
10.
E
RASURE OF
This section covers the possible methods of making recorded
data "visible" on a computer.
10.1. File format, inserting the memory card in a
computer
Sensor values / telemetry data are recorded on the Micro SD
card in one or more .csv files (
•
•
•
Page 15
Carry out the desired settings and send them to the
FlightRecorder.
S S
TARTING AND
/ F U
IRST SE
Using the FlightRecorder in a model with
Using the FlightRecorder in a model with
Using the FlightRecorder on the ground
F F / V
ILE ORMAT
R
ECORDED
Remove the Micro SD card from the FlightRecorder (
Insert the Micro SD card in the appropriate card slot in your
computer.
!
Note: if your computer does not feature the correct card
socket, use the USB card adapter supplied in the set.
In the next step you can view, analyse or erase the recorded
telemetry data on a computer using Editor, Microsoft Excel,
LogView or similar program (
D
TOPPING ATA
8.), the next step is to consider
, A
IEW NALYSIS AND
F
ILES
6.1.).
10.2., ..., 10.5.).
6.3.).
