Note: be sure to remove the transmitter back panel
before drilling the hole. It is essential to keep drilling swarf
and other waste away from the inside of the transmitter.
•
If necessary, pass the two UNI leads attached to the
FlightRecorder through the back panel of the transmitter.
•
Locate the three-core UNI lead attached to the
FlightRecorder, and connect it to the COM port of the 2.4
GHz M-LINK RF module, or the COM socket on the main
circuit board of the M-LINK transmitter.
!
Note: if you are using a MULTIPLEX Telemetry-Display
(# 4 5182) at the same time, connect it to the FlightRecorder.
•

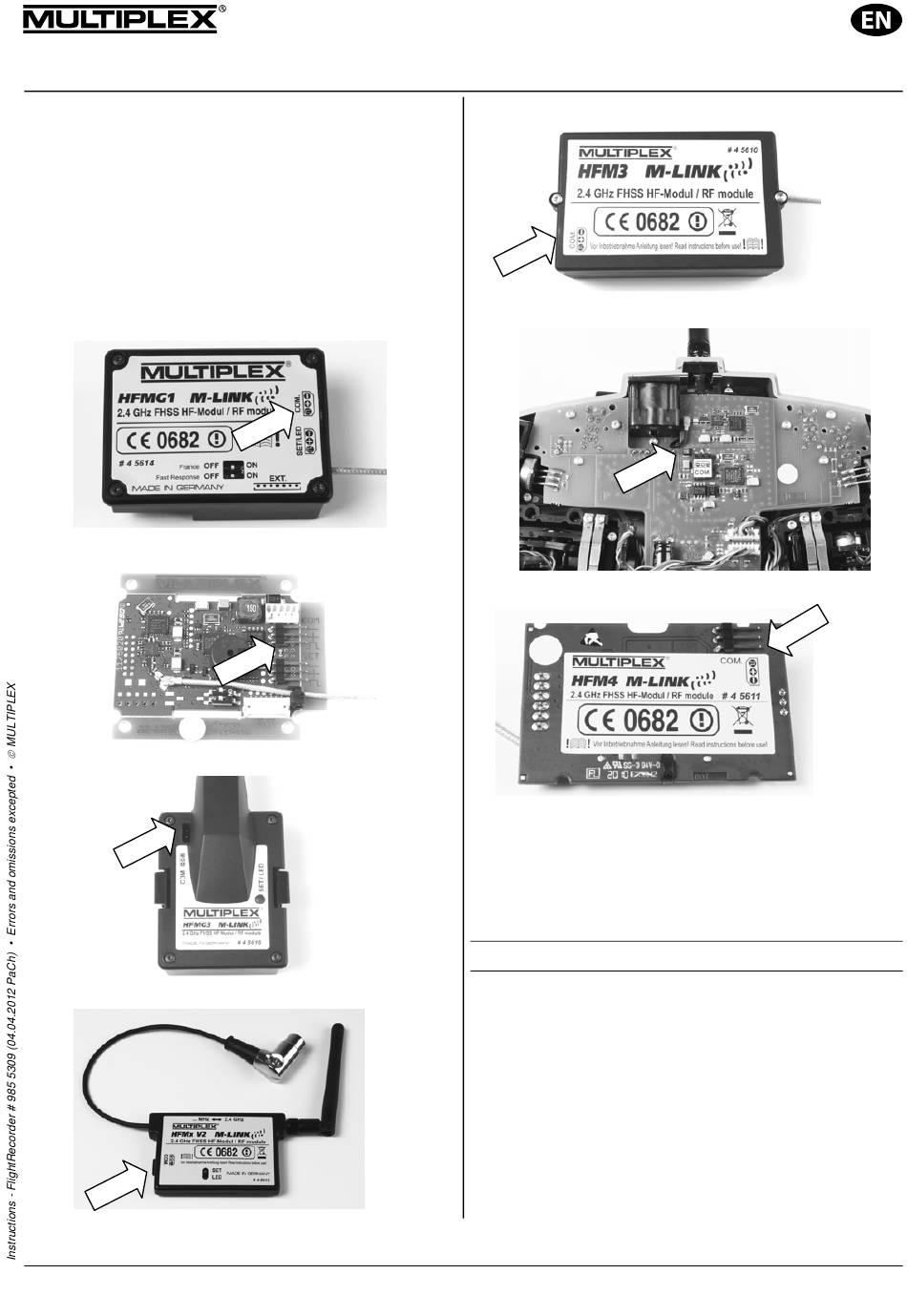

Pin assignment, HFMG1 M-LINK RF module
•
Pin assignment, HFMG2 M-LINK RF module
•
Pin assignment, HFMG3 M-LINK RF module
•
Pin assignment, HFMx V2 M-LINK RF module
Operating Instructions
FlightRecorder
•
•
•
6.
6.1.
The telemetry data are recorded on a Micro SD card in the form
of .csv files. This card is included in the set.
6.2.
FlightRecorder
•
Page 13
•
Pin assignment, HFM3 M-LINK RF module
•
Pin assignment, COCKPIT SX M-LINK transmitter
•
Pin assignment, HFM4 M-LINK RF module
The three-core UNI lead attached to the FlightRecorder
should be secured inside the transmitter (e.g. using a cable
tie or adhesive tape).
The single-core (yellow) UNI lead attached to the
FlightRecorder is not required.
Close the transmitter.
M SD C
ICRO ARD
Recording the telemetry data
Inserting the Micro SD card in the
Insert the Micro SD card in the FlightRecorder's card slot:
Ensure that the Micro SD card is the right way round and
inserted correctly. The stylised Micro SD card on the
FlightRecorder indicates the correct orientation:
