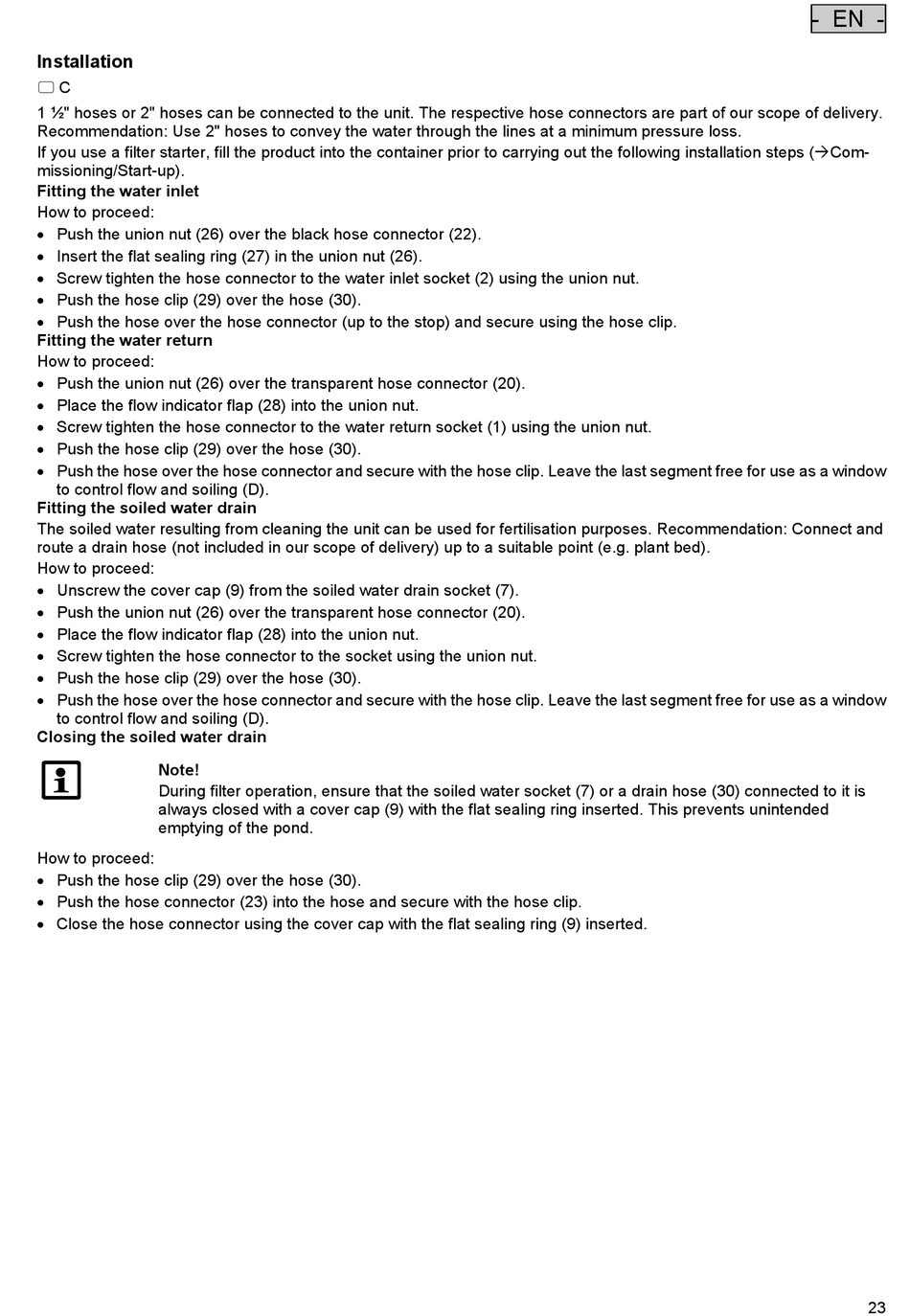

Installation
 C
1 ½" hoses or 2" hoses can be connected to the unit. The respective hose connectors are part of our scope of delivery.
Recommendation: Use 2" hoses to convey the water through the lines at a minimum pressure loss.
If you use a filter starter, fill the product into the container prior to carrying out the following installation steps (Com-
missioning/Start-up).
Fitting the water inlet
How to proceed:
• Push the union nut (26) over the black hose connector (22).
• Insert the flat sealing ring (27) in the union nut (26).
• Screw tighten the hose connector to the water inlet socket (2) using the union nut.
• Push the hose clip (29) over the hose (30).
• Push the hose over the hose connector (up to the stop) and secure using the hose clip.
Fitting the water return
How to proceed:
• Push the union nut (26) over the transparent hose connector (20).
• Place the flow indicator flap (28) into the union nut.
• Screw tighten the hose connector to the water return socket (1) using the union nut.
• Push the hose clip (29) over the hose (30).
• Push the hose over the hose connector and secure with the hose clip. Leave the last segment free for use as a window
to control flow and soiling (D).
Fitting the soiled water drain
The soiled water resulting from cleaning the unit can be used for fertilisation purposes. Recommendation: Connect and
route a drain hose (not included in our scope of delivery) up to a suitable point (e.g. plant bed).
How to proceed:
• Unscrew the cover cap (9) from the soiled water drain socket (7).
• Push the union nut (26) over the transparent hose connector (20).
• Place the flow indicator flap (28) into the union nut.
• Screw tighten the hose connector to the socket using the union nut.
• Push the hose clip (29) over the hose (30).
• Push the hose over the hose connector and secure with the hose clip. Leave the last segment free for use as a window
to control flow and soiling (D).
Closing the soiled water drain
Note!
During filter operation, ensure that the soiled water socket (7) or a drain hose (30) connected to it is
always closed with a cover cap (9) with the flat sealing ring inserted. This prevents unintended
emptying of the pond.
How to proceed:
• Push the hose clip (29) over the hose (30).
• Push the hose connector (23) into the hose and secure with the hose clip.
• Close the hose connector using the cover cap with the flat sealing ring (9) inserted.
