145 Tpsn-Regler - Danfoss D1P 145 Servicehandbuch

Service-Handbuch
D1P Axialkolben-Verstellpumpe im offenen Kreislauf
Kleinere Reparatur
44 | © Danfoss | April 2016

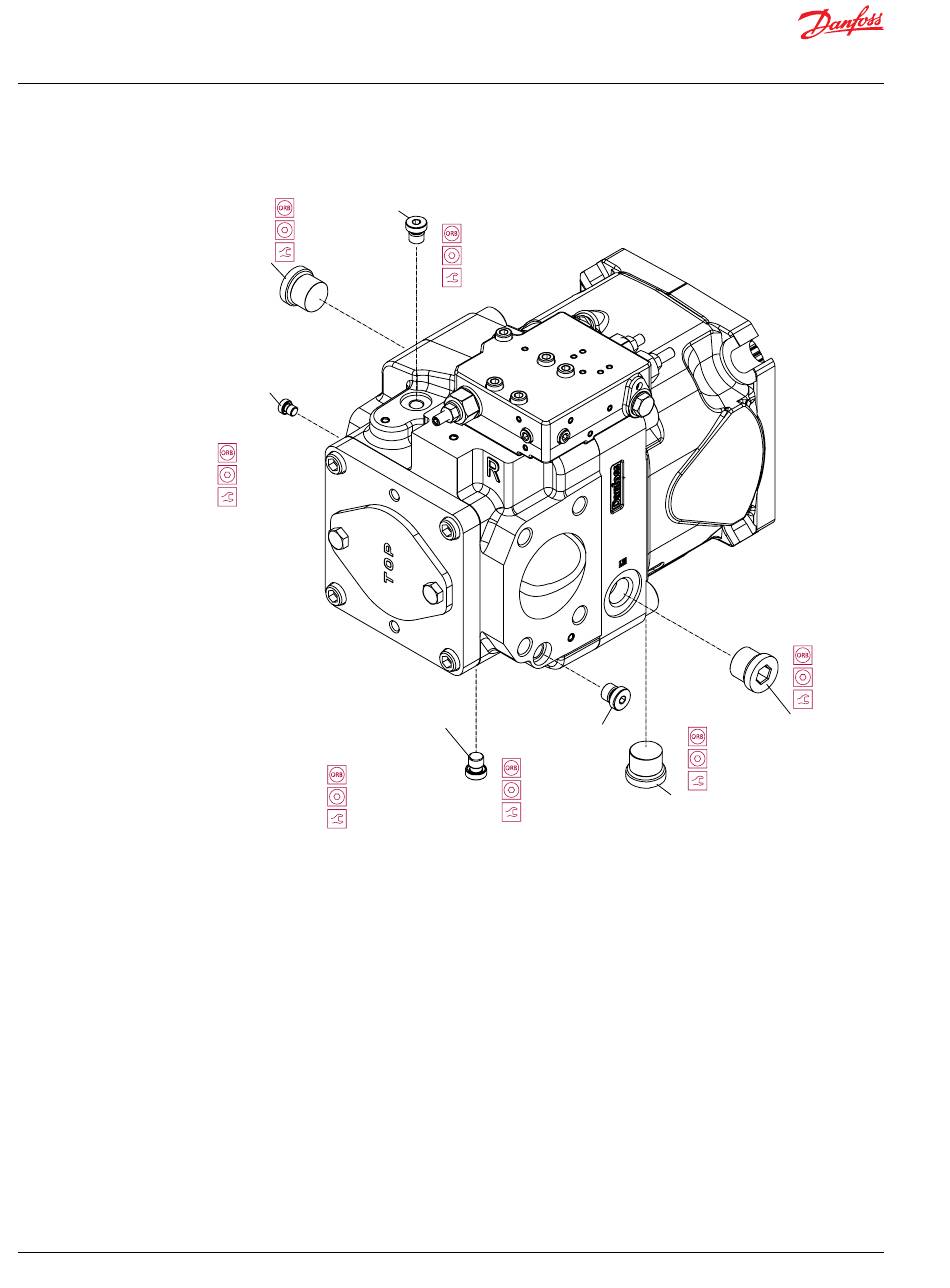

145 TPSN-Regler

Drain port L1
M26x1.5
G225
12 mm
69 - 83 N·m
F160
G240
Bias orifice plug
M8x1
4 mm
6.3 - 7.7 N·m
Servo pressure
test port M4
M12x1.5
6 mm
22.5 - 27.5 N·m
Outlet pressure test port MB
M12x1.5
6 mm
22.5 - 27.5 N·m
G235
G250
Servo orifice plug
M12x1.5
6 mm
22.5 - 27.5 N·m
Drain port L2
M26x1.5
12 mm
69 - 83 N·m
Drain port L3
F150
M26x1.5
12 mm
69 - 83 N·m
F140
P400260
AX00000292de-DE0101
