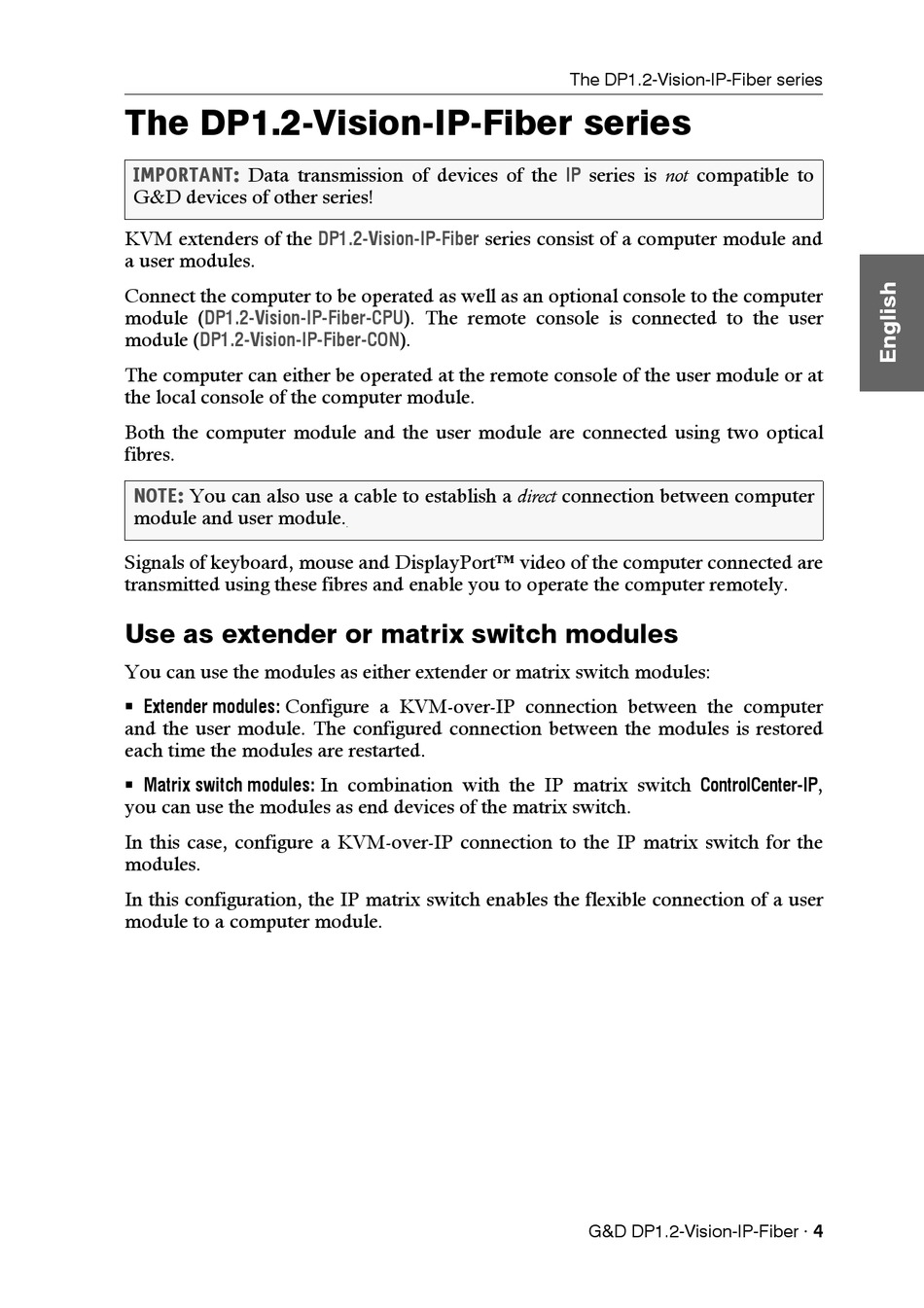

The DP1.2-Vision-IP-Fiber series

IMPORTANT:
Data transmission of devices of the
G&D devices of other series!
KVM extenders of the
a user modules.
Connect the computer to be operated as well as an optional console to the computer
module ( DP1.2-Vision-IP-Fiber-CPU
module ( DP1.2-Vision-IP-Fiber-CON
The computer can either be operated at the remote console of the user module or at
the local console of the computer module.
Both the computer module and the user module are connected using two optical
fibres.
NOTE: You can also use a cable to establish a direct connection between computer
module and user module.
Signals of keyboard, mouse and DisplayPort™ video of the computer connected are
transmitted using these fibres and enable you to operate the computer remotely.

Use as extender or matrix switch modules

You can use the modules as either extender or matrix switch modules:
Configure a KVM-over-IP connection between the computer
 Extender modules:
and the user module. The configured connection between the modules is restored
each time the modules are restarted.
 Matrix switch modules:
you can use the modules as end devices of the matrix switch.
In this case, configure a KVM-over-IP connection to the IP matrix switch for the
modules.
In this configuration, the IP matrix switch enables the flexible connection of a user
module to a computer module.
series consist of a computer module and
DP1.2-Vision-IP-Fiber
). The remote console is connected to the user
).
In combination with the IP matrix switch
The DP1.2-Vision-IP-Fiber series
IP series is not compatible to
ControlCenter-IP
G&D DP1.2-Vision-IP-Fiber · 4
,
