Installation

Installing the computer module

The computer, whose signals are transmitted to the remote console, is connected to
the
DP1.2-Vision-IP-Fiber-CPU
the computer module.

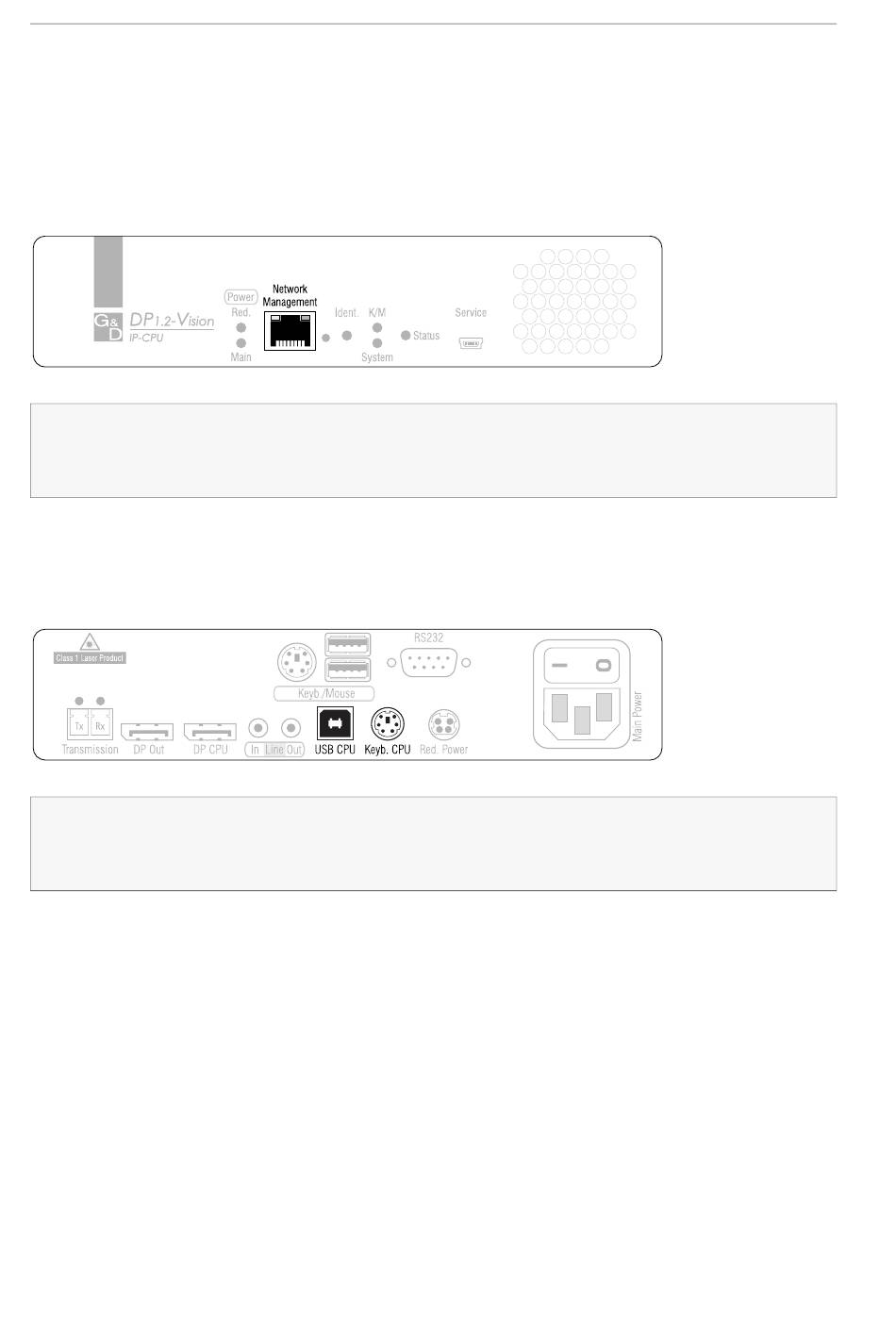

Establishing a connection to a local management network
NOTE: If desired, connect this network interface to a local network. This enables
you to access the
log messages to this network.
Network Management:
ble as accessory. Connect the other end of the cable to the local network.
Connecting keyboard and mouse to the local computer
NOTE: Mouse and keyboard signals of both consoles can either be transmitted to
the computer using the USB interface USB CPU or using the PS/2 interfaces Mouse
CPU and Keyb. CPU PS/2.
USB CPU: Use the USB-AM/BM-2 cable to connect one of the computer's USB inter-
faces to this interface.
Keyb. CPU: Use an optionally available PS/2 cable (PS/2-M/M-2) to connect the
computer's PS/2 keyboard interface to this interface.
7 · G&D DP1.2-Vision-IP-Fiber
