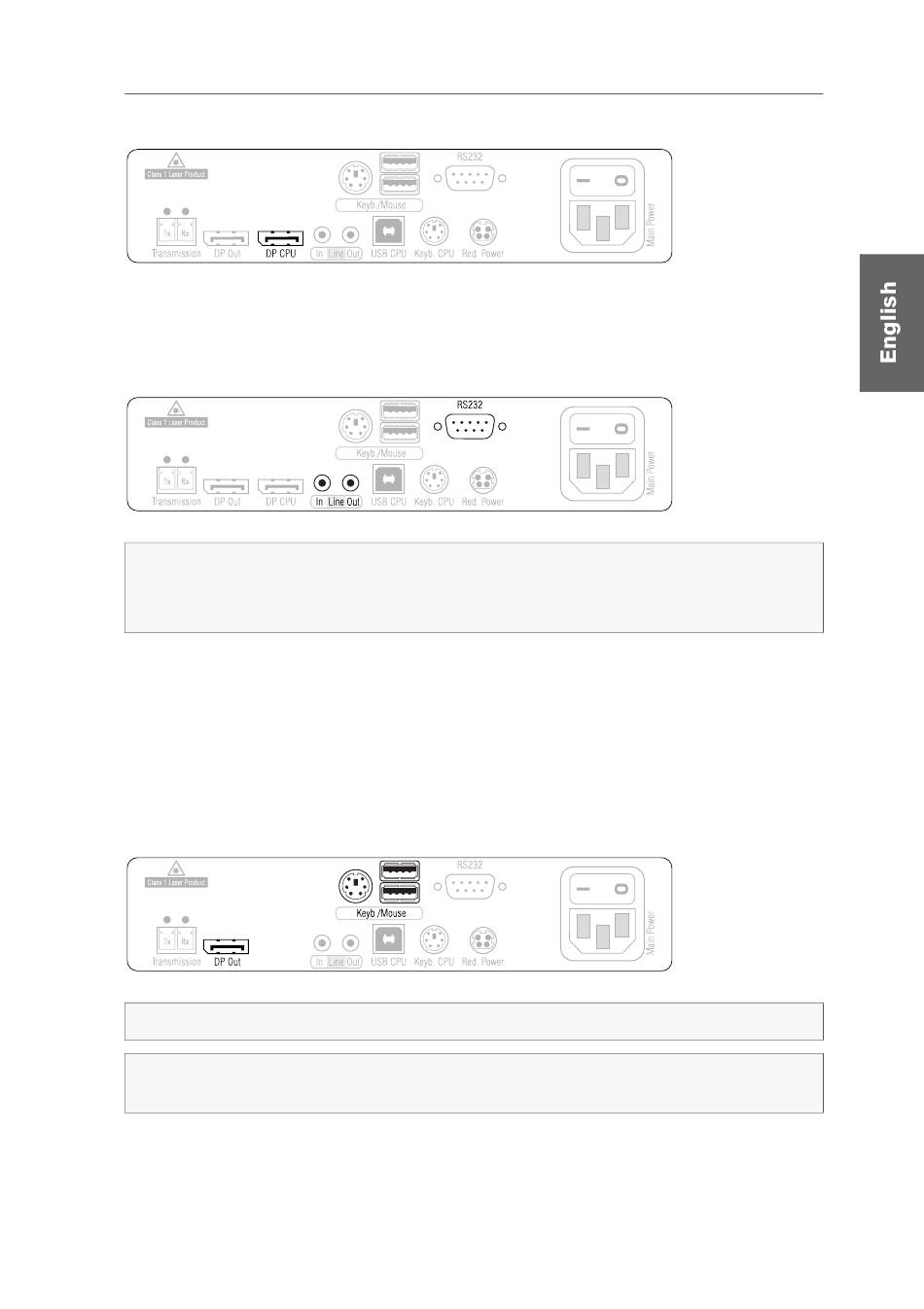

Connecting the computer's video output
Use the DP-Cable-M/M-2 cable to connect the computer's video output to
DP CPU:
this interface.
Connecting audio and RS232 interfaces
NOTE: By default, the KVM switch transfers audio data between switches.
In addition, you can enable the transmission of RS232 data and, alternatively,
disable the transmission of audio data (see (De)Activating signals on page 21).
Line In: Use an Audio-M/M-2 audio connection cable to connect the omputer's Line-
Out interface to this interface
Line Out: Use an Audio-M/M-2 audio connection cable to connect the omputer's Line-
In interface to this interface.
RS232: Use the RS232-M/F-2 cable to connect one of the computer's 9-pin serial
interfaces to this interface.
Optional: Connecting a local console
NOTE: The keyboard of the local console can either be a PS/2 or a USB device.
ADVICE: Use the adapter
USB mouse at the same time.
(A6400043) to use a PS/2 keyboard and a
MD6M-2xMD6F
Installation
G&D DP1.2-Vision-IP-Fiber · 8
