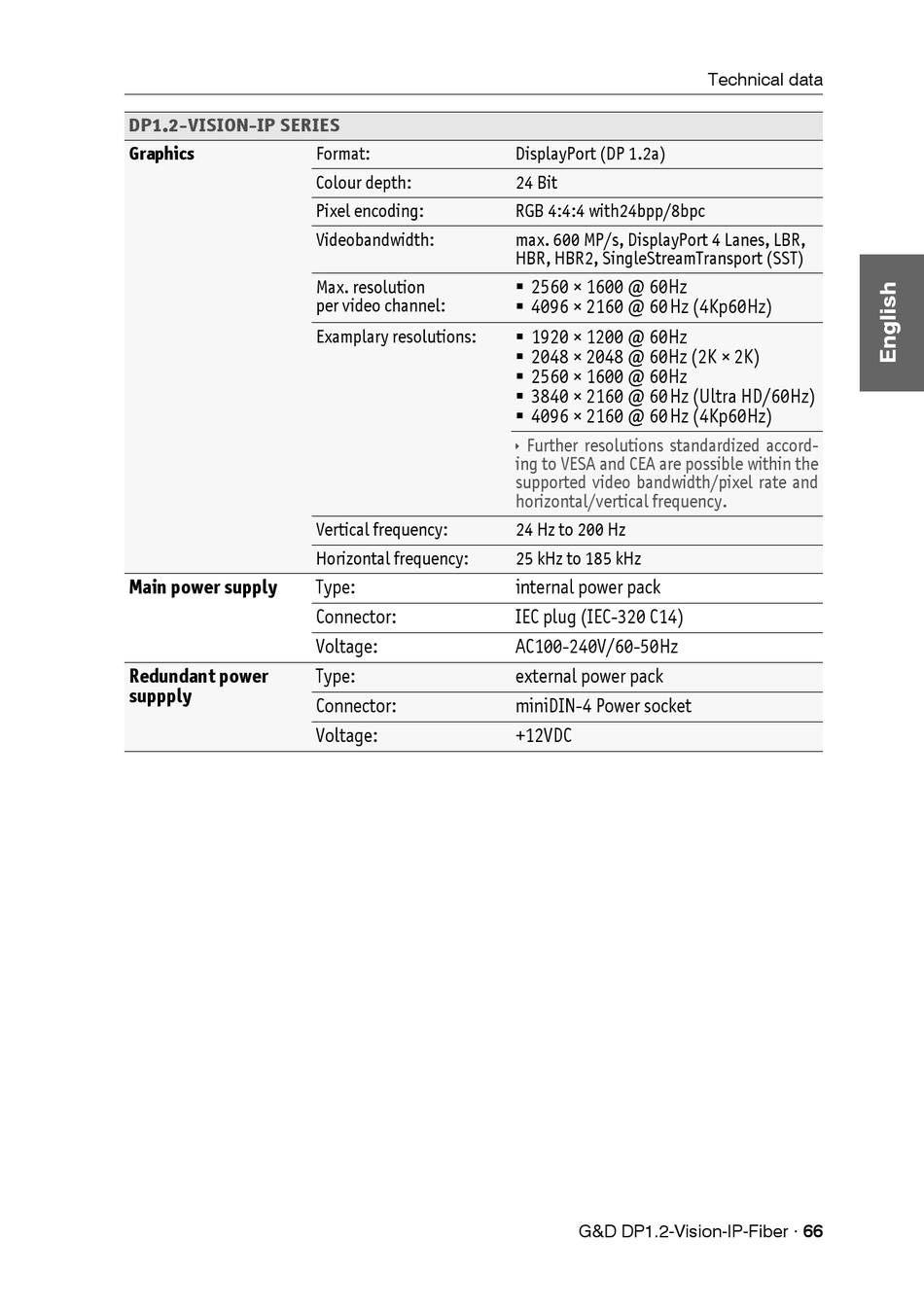

DP1.2-VISION-IP SERIES
Graphics
Main power supply
Redundant power
suppply
Format:
Colour depth:
Pixel encoding:
Videobandwidth:
Max. resolution
per video channel:
Examplary resolutions:
Vertical frequency:
Horizontal frequency:
Type:
Connector:
Voltage:
Type:
Connector:
Voltage:
DisplayPort (DP 1.2a)
24 Bit
RGB 4:4:4 with24bpp/8bpc
max. 600 MP/s, DisplayPort 4 Lanes, LBR,
HBR, HBR2, SingleStreamTransport (SST)
 2560 × 1600 @ 60Hz
 4096 × 2160 @ 60 Hz (4Kp60Hz)
 1920 × 1200 @ 60Hz
 2048 × 2048 @ 60Hz (2K × 2K)
 2560 × 1600 @ 60Hz
 3840 × 2160 @ 60 Hz (Ultra HD/60Hz)
 4096 × 2160 @ 60 Hz (4Kp60Hz)
 Further resolutions standardized accord-
ing to VESA and CEA are possible within the
supported video bandwidth/pixel rate and
horizontal/vertical frequency.
24 Hz to 200 Hz
25 kHz to 185 kHz
internal power pack
IEC plug (IEC-320 C14)
AC100-240V/60-50Hz
external power pack
miniDIN-4 Power socket
+12VDC
G&D DP1.2-Vision-IP-Fiber · 66
Technical data
