back cushions come equipped for subsequent attachment of the upper arm sup-
ports� The upper arm support cushions are removable and washable� They are
supplied as a set, including mounting instructions and fastening materials�
12.2 T herapy tray table with Velcro
attachment

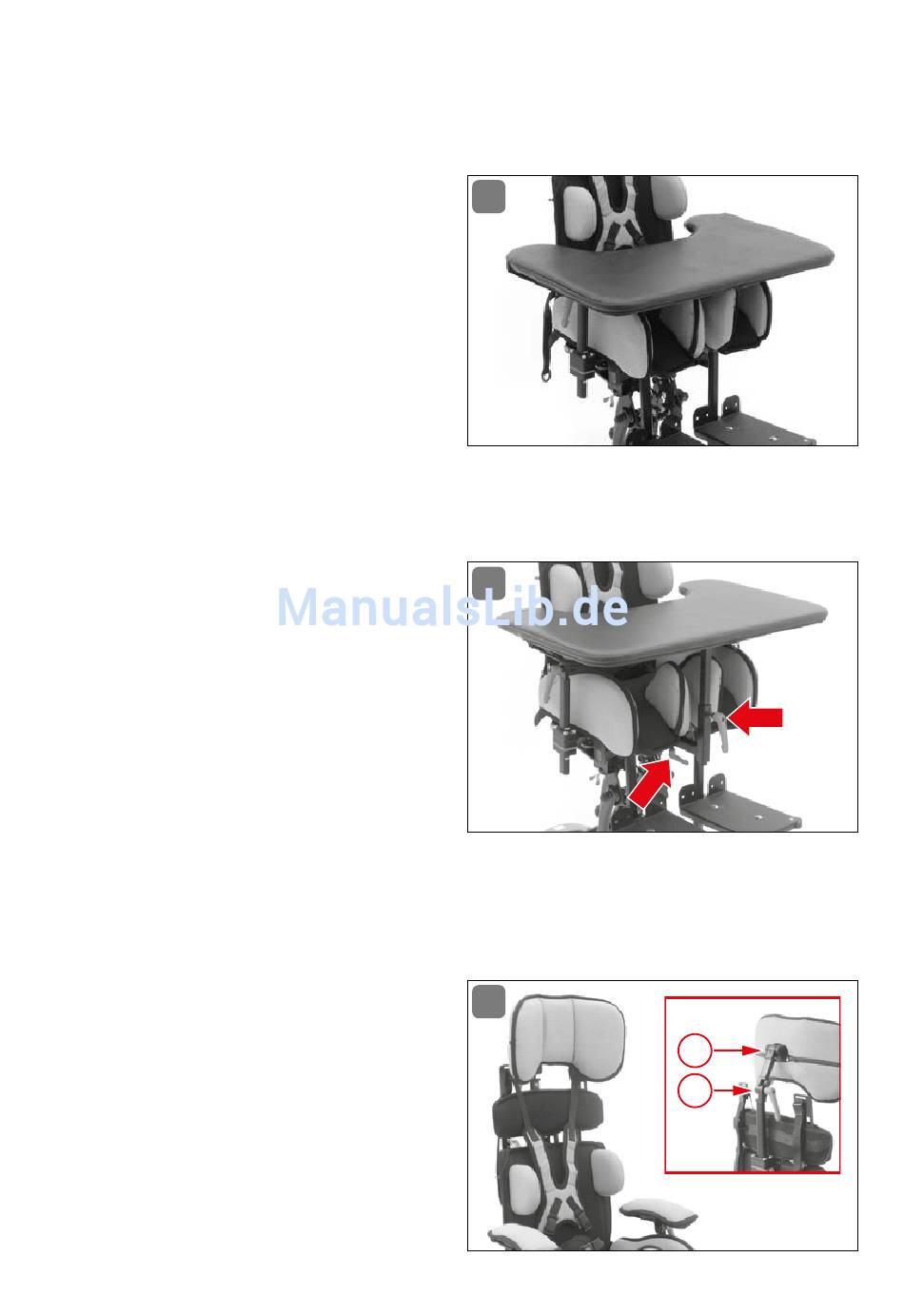

The basic version of the therapy tray
table (Fig� 24) is placed on the arm
rests, adjusted to the patient, and
secured to the arm rest cushions
with the Velcro straps provided� In
addition, the therapy tray table can
also be secured to the back rest
with a strap�
It is supplied with mounting instructions�
12.3 Therapy tray table, attachable
The reinforced version of the ther-
apy tray table (Fig� 25) is mounted to
the seat shell� To do so, a separate
bracket is secured to the underside
of the seat shell in accordance with
the assembly instructions� Once
the therapy tray table has been at-
tached to the bracket, its height and
distance can be adjusted by sliding
it, enabling it to be adapted to the individual needs of the patient�
It is supplied with mounting instructions�
12.4 Head rest, standard
The head rest (Fig� 26) is equipped
with a clamping lever (1) in order to
adapt it to the patient� The support
bar comes equipped with a height
adjustment ratcheting mechanism;
the angle of the head rest can be
adjusted using a joint with a locking
screw (2)�
56
OPTIONAL ACCESSORIES
24
25
26
2
1
