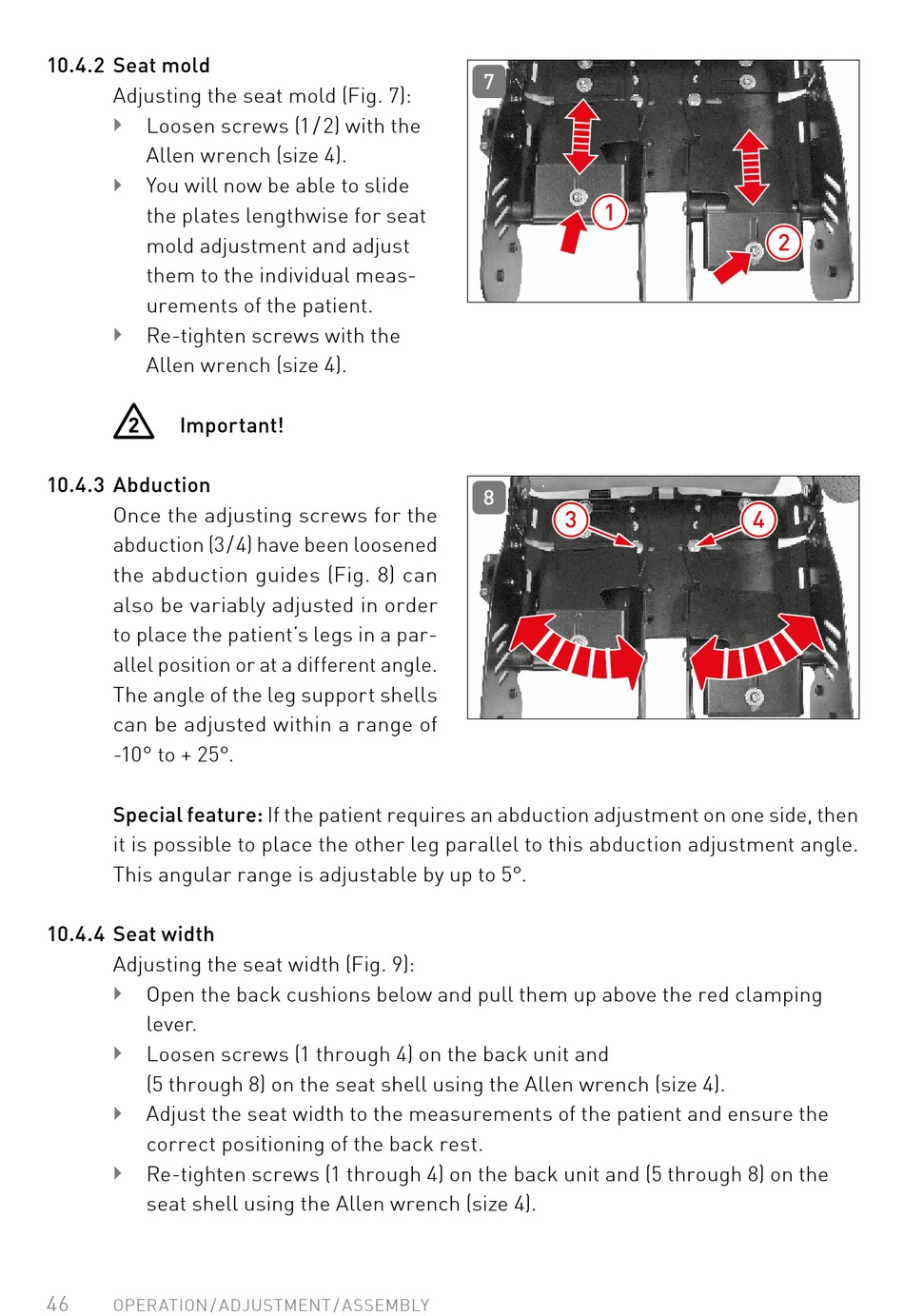

10.4.2 Seat mold
Adjusting the seat mold (Fig� 7):
Loosen screws (1 / 2) with the

Allen wrench (size 4)�
You will now be able to slide

the plates lengthwise for seat
mold adjustment and adjust
them to the individual meas-
urements of the patient�
Re-tighten screws with the

Allen wrench (size 4)�
2 Important!
10.4.3 Abduction
Once the adjusting screws for the
abduction (3 / 4) have been loosened
the abduction guides (Fig� 8) can
also be variably adjusted in order
to place the patient's legs in a par-
allel position or at a different angle�
The angle of the leg support shells
can be adjusted within a range of
-10° to + 25°�
Special feature: If the patient requires an abduction adjustment on one side, then
it is possible to place the other leg parallel to this abduction adjustment angle�
This angular range is adjustable by up to 5°�
10.4.4 Seat width
Adjusting the seat width (Fig� 9):
Open the back cushions below and pull them up above the red clamping

lever�
Loosen screws (1 through 4) on the back unit and

(5 through 8) on the seat shell using the Allen wrench (size 4)�
Adjust the seat width to the measurements of the patient and ensure the

correct positioning of the back rest�
Re-tighten screws (1 through 4) on the back unit and (5 through 8) on the

seat shell using the Allen wrench (size 4)�
46
OPERATION / ADJUSTMENT / ASSEMBLY
