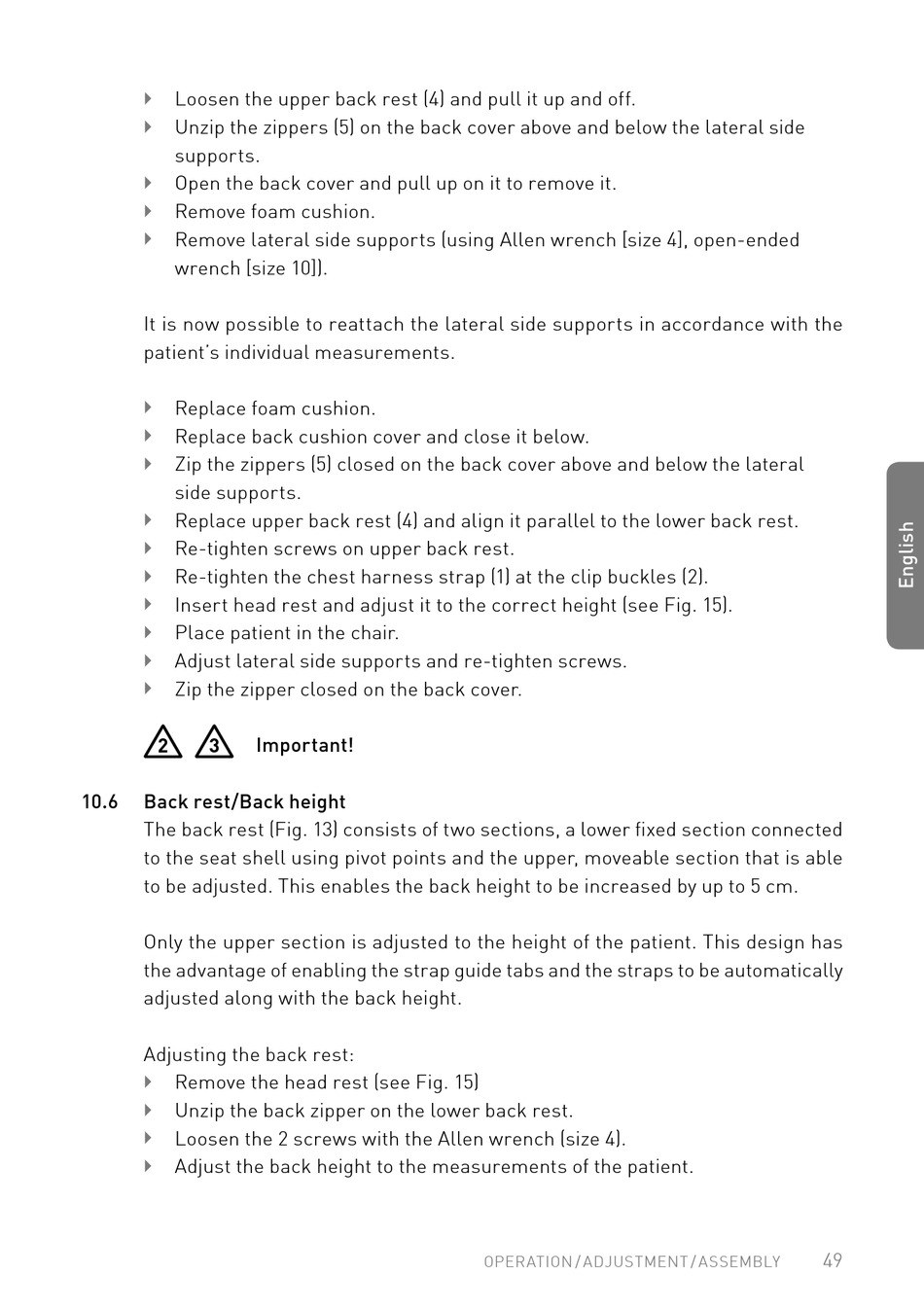

Loosen the upper back rest (4) and pull it up and off�

Unzip the zippers (5) on the back cover above and below the lateral side

supports�
Open the back cover and pull up on it to remove it�

Remove foam cushion�

Remove lateral side supports (using Allen wrench [size 4], open-ended

wrench [size 10])�
It is now possible to reattach the lateral side supports in accordance with the
patient's individual measurements�
Replace foam cushion�

Replace back cushion cover and close it below�

Zip the zippers (5) closed on the back cover above and below the lateral

side supports�
Replace upper back rest (4) and align it parallel to the lower back rest�

Re-tighten screws on upper back rest�

Re-tighten the chest harness strap (1) at the clip buckles (2)�

Insert head rest and adjust it to the correct height (see Fig� 15)�

Place patient in the chair�

Adjust lateral side supports and re-tighten screws�

Zip the zipper closed on the back cover�

2 3
10.6 Back rest/Back height
The back rest (Fig� 13) consists of two sections, a lower fixed section connected
to the seat shell using pivot points and the upper, moveable section that is able
to be adjusted� This enables the back height to be increased by up to 5 cm�
Only the upper section is adjusted to the height of the patient� This design has
the advantage of enabling the strap guide tabs and the straps to be automatically
adjusted along with the back height�
Adjusting the back rest:
Remove the head rest (see Fig� 15)

Unzip the back zipper on the lower back rest�

Loosen the 2 screws with the Allen wrench (size 4)�

Adjust the back height to the measurements of the patient�

Important!
