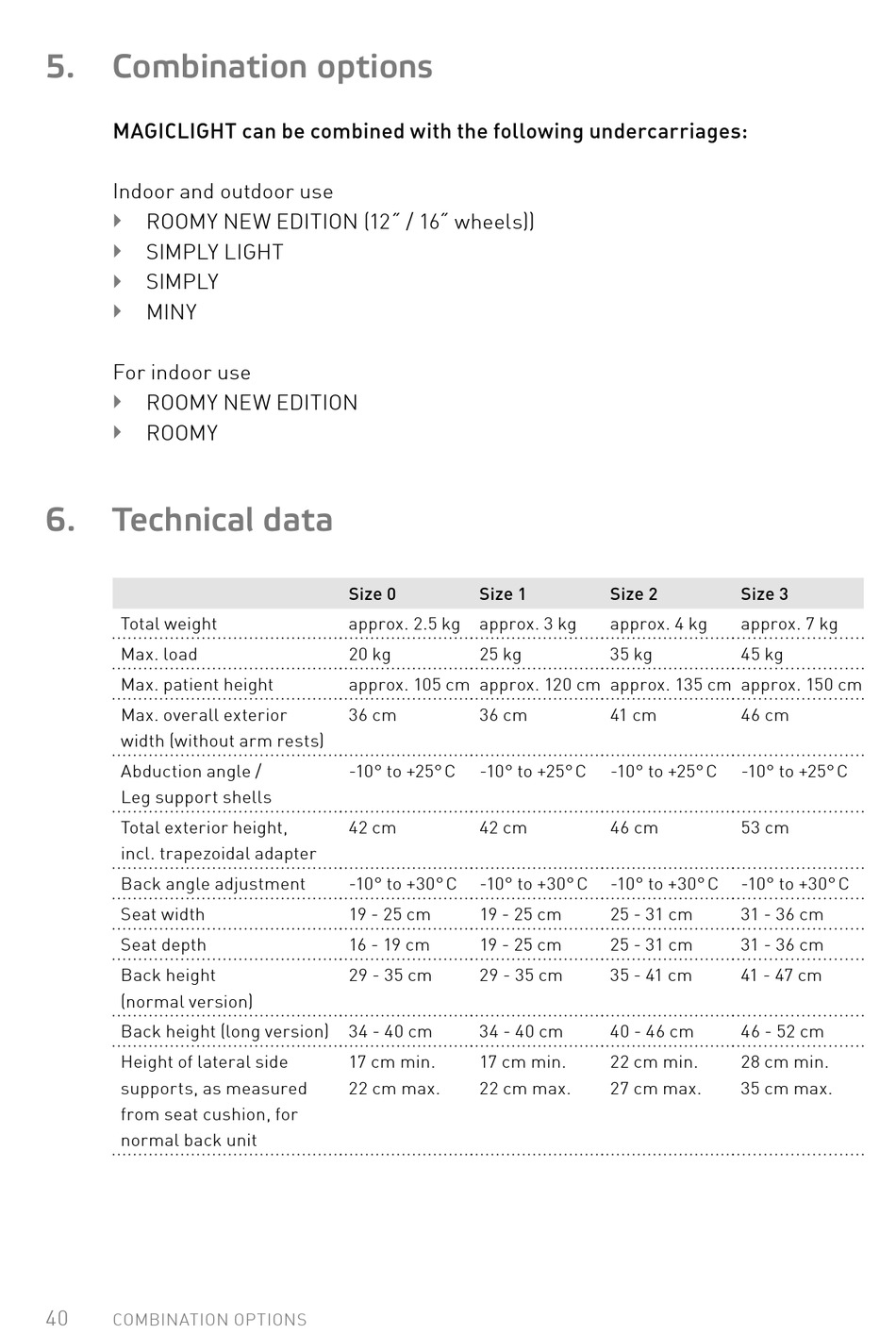

5.

Combination options

MAGICLIGHT can be combined with the following undercarriages:
Indoor and outdoor use
ROOMY NEW EDITION (12˝ / 16˝ wheels))

SIMPLY LIGHT

SIMPLY

MINY

For indoor use
ROOMY NEW EDITION

ROOMY

6.

Technical data

Total weight
Max load
Max patient height
Max overall exterior
width (without arm rests)
Abduction angle /
Leg support shells
Total exterior height,
incl trapezoidal adapter
Back angle adjustment
Seat width
Seat depth
Back height
(normal version)
Back height (long version)
Height of lateral side
supports, as measured
from seat cushion, for
normal back unit
40
COMBINATION OPTIONS
Size 0 Size 1
approx 25 kg approx 3 kg
20 kg 25 kg
approx 105 cm approx 120 cm approx 135 cm approx 150 cm
36 cm 36 cm
-10° to +25° C -10° to +25° C
42 cm 42 cm
-10° to +30° C -10° to +30° C
19 - 25 cm 19 - 25 cm
16 - 19 cm 19 - 25 cm
29 - 35 cm 29 - 35 cm
34 - 40 cm 34 - 40 cm
17 cm min 17 cm min
22 cm max 22 cm max
Size 2 Size 3
approx 4 kg approx 7 kg
35 kg 45 kg
41 cm 46 cm
-10° to +25° C -10° to +25° C
46 cm 53 cm
-10° to +30° C -10° to +30° C
25 - 31 cm 31 - 36 cm
25 - 31 cm 31 - 36 cm
35 - 41 cm 41 - 47 cm
40 - 46 cm 46 - 52 cm
22 cm min 28 cm min
27 cm max 35 cm max
