PSI Matrix PP 806 Benutzerhandbuch Seite 239

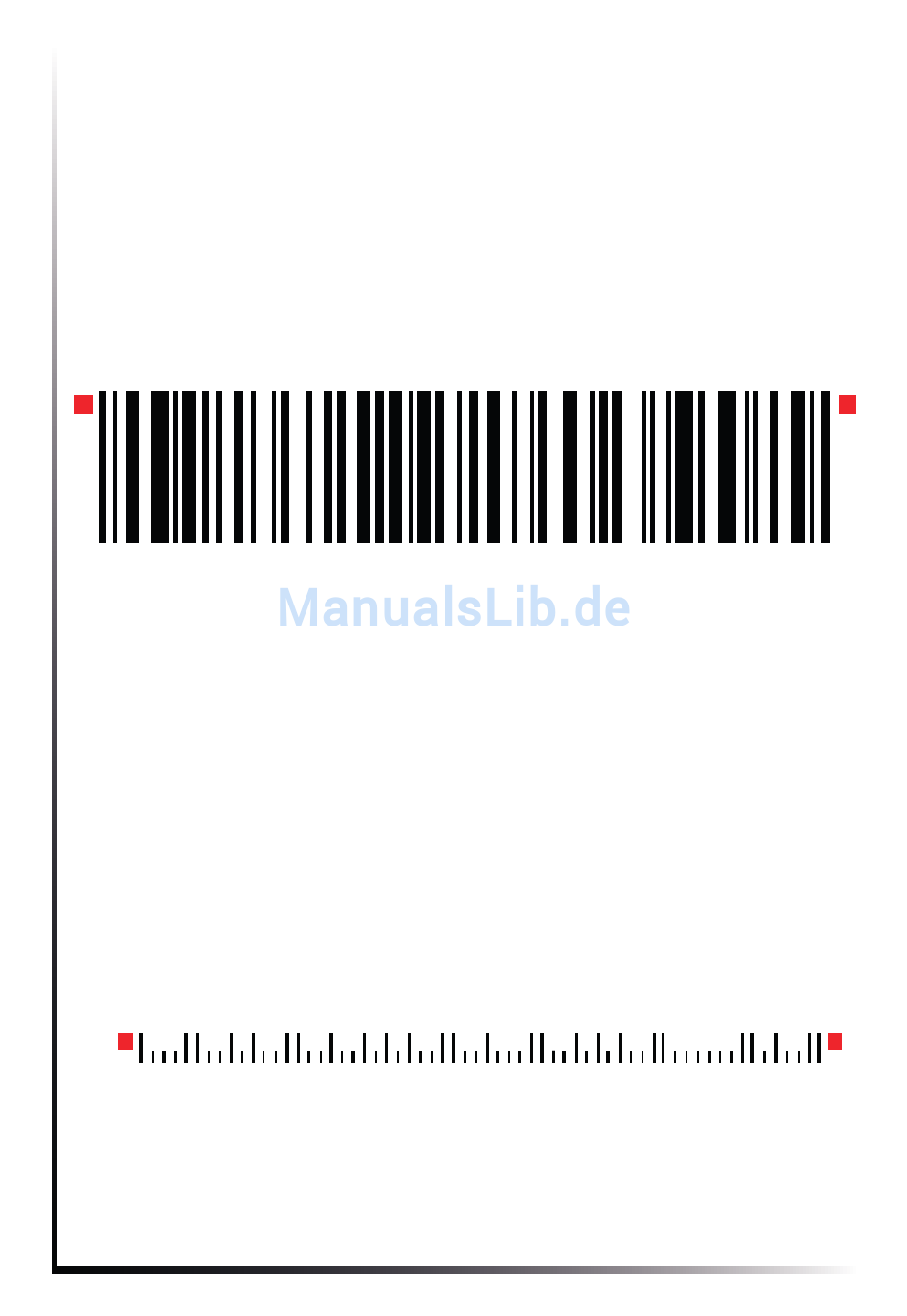

Barcode Example for Code 128
Code 128 using FNC1 = Coding ] C 1
Barcode Header:
ASCII ESC [ ;211 ;8 ;1 ; 1; 1 ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII ] C 1 0 0 3 4 0 1 2 3 4 5 1 2 3 4 5 6 7 8 9 5
Stop Barcode: ASCII
HEX
0 0 3 4 0 1 2 3 4 5 1 2 3 4 5 6 7 8 9 5
Barcode Example for POSTNET
Barcode Header:
ASCII ESC [ ;212 ; ; ; ; ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII 1 2 3 4 5 6 7 8 9 0 1
Stop Barcode: ASCII
HEX
Data: ASCII CR CR LS
Mark Pollan CR LF
101 main St CR LF
Anytown US 12345-6789 CR LF
Mark Pollan
101 main St
Anytown US 12345-6789
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 31 31 3B 38 3B 31 3B 31 3B 31 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 31 32 3B 38 3B 31 3B 31 3B 31 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
Appendix F-17
