PSI Matrix PP 806 Benutzerhandbuch Seite 236

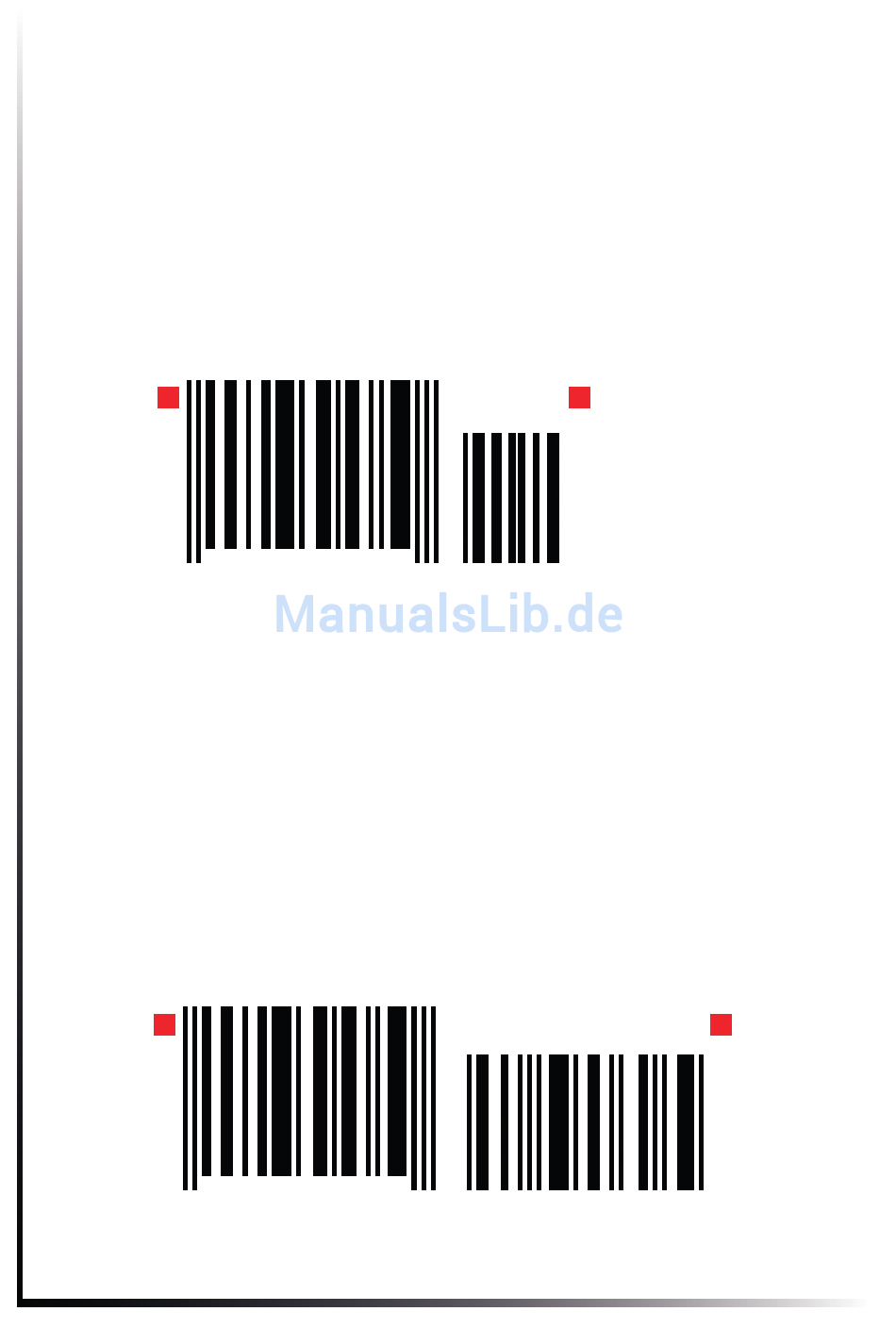

Barcode Example for UPC-E ADD-2
Barcode Header:
ASCII ESC [ ;209 ;8 ;1 ; 1; 1 ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII 0 1 2 3 4 5 6 5 1 2
Stop Barcode: ASCII
HEX
Barcode Example for UPC-E ADD-5
Barcode Header:
ASCII ESC [ ;209 ;8 ;1 ; 1; 1 ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII 0 1 2 3 4 5 6 5 8 6 1 0 4
Stop Barcode: ASCII
HEX
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 30 39 3B 38 3B 31 3B 31 3B 31 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
1 2 3 4 5 6
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 30 39 3B 38 3B 31 3B 31 3B 31 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
1 2 3 4 5 6
1 2
8 6 1 0 4
Appendix F-14
