PSI Matrix PP 806 Benutzerhandbuch Seite 232

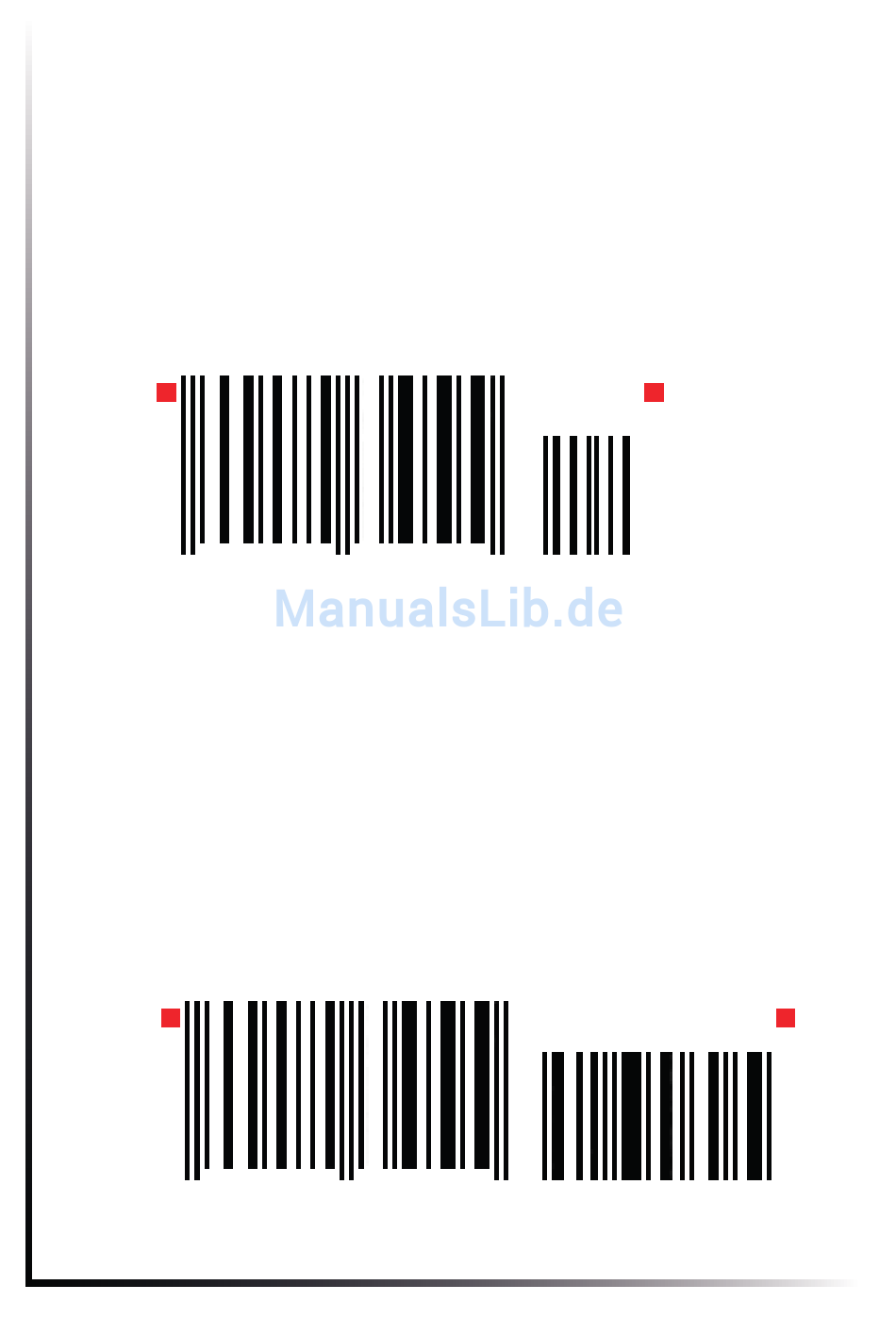

Barcode Example for EAN 8 ADD-5
Barcode Header:
ASCII ESC[ ; 205 ;8 ; ; ; ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII 4 0 1 2 3 4 5 5 1 2
Info: No Start or Stop character needed
Stop Barcode: ASCII
HEX
4 0 1 2 3 4 5 5
Barcode Example for EAN 8 ADD-5
Barcode Header:
ASCII ESC[ ; 205 ;8 ; ; ; ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII 4 0 1 2 3 4 5 5 8 6 1 0 4
Info: No Start or Stop character needed
Stop Barcode: ASCII
HEX
4 0 1 2 3 4 5 5
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 30 35 3B 38 3B 3B 3B 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 30 35 3B 38 3B 3B 3B 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
1 2
8 6 1 0 4
Appendix F-10
