PSI Matrix PP 806 Benutzerhandbuch Seite 231

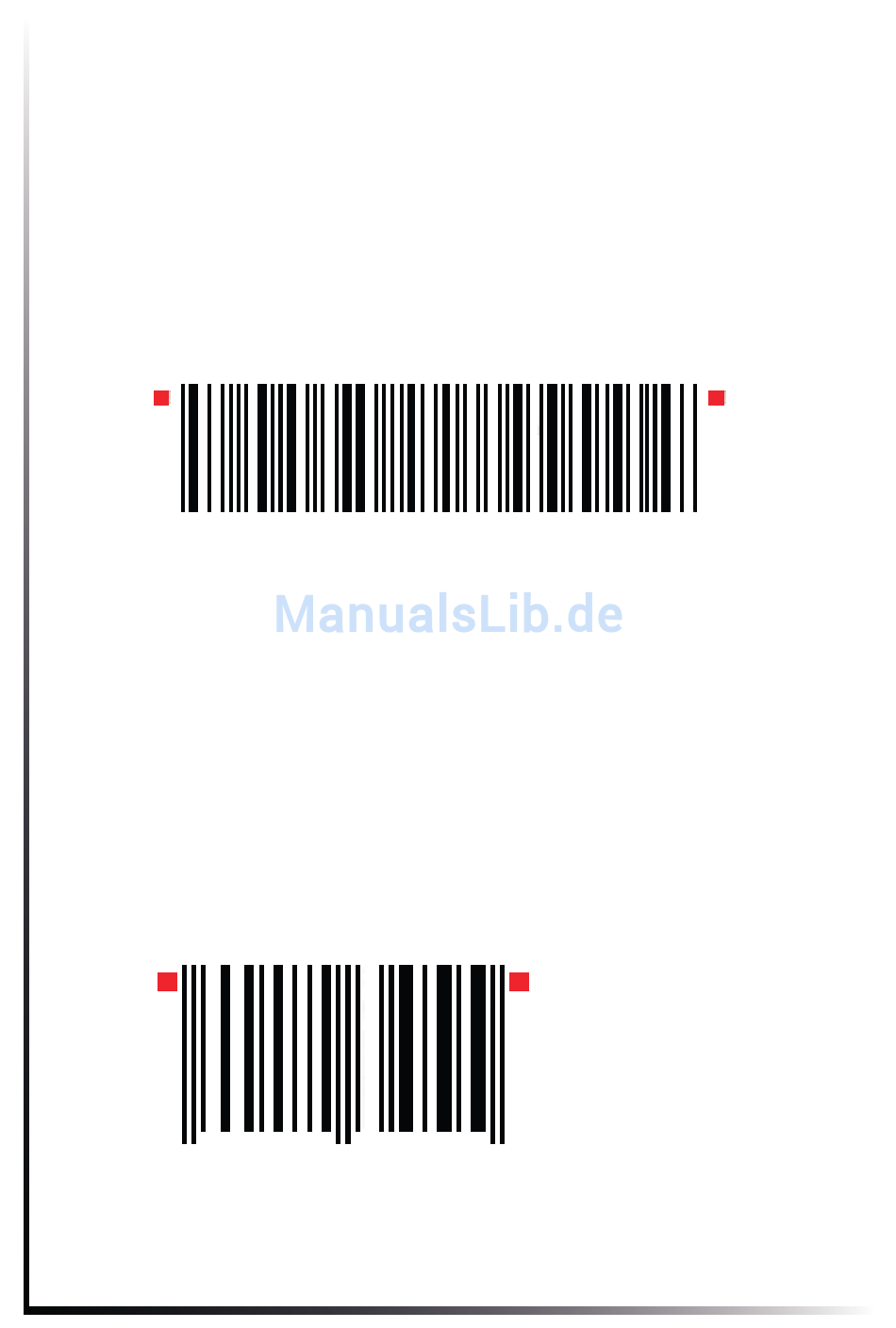

Barcode Example for Codabar Monarch
Barcode Header:
ASCII ESC[ ; 204 ;8 ;1 ; 1; 1 ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII : 0 1 2 3 4 5 6 7 8 90 ;
Info: The start / stop characters (a/t) must be given in the text.
Stop Barcode: ASCII
HEX
a 0 1 2 3 4 5 6 7 8 9 t
Barcode Example for EAN 8
Barcode Header:
ASCII ESC[ ; 205 ;8 ; ; ; ; ˽ z
HEX
Start Barcode: ASCII
HEX
Data: ASCII 4 0 1 2 3 4 5 5
Info: No Start or Stop character needed
Stop Barcode: ASCII
HEX
4 0 1 2 3 4 5 5
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 30 34 3B 38 3B 31 3B 31 3B 31 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
(with redable Text)
ESC[ ; P2 ; P3 ; P4 ;P5 ; P6 ;P7 ˽ z
1B 5B 3B 32 30 35 3B 38 3B 3B 3B 3B 20 7A
ESC [ ? 0 h
1B 5B 3E 30 68
ESC [ ? 0 l
1B 5B 3E 30 6C
Appendix F-9
